UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

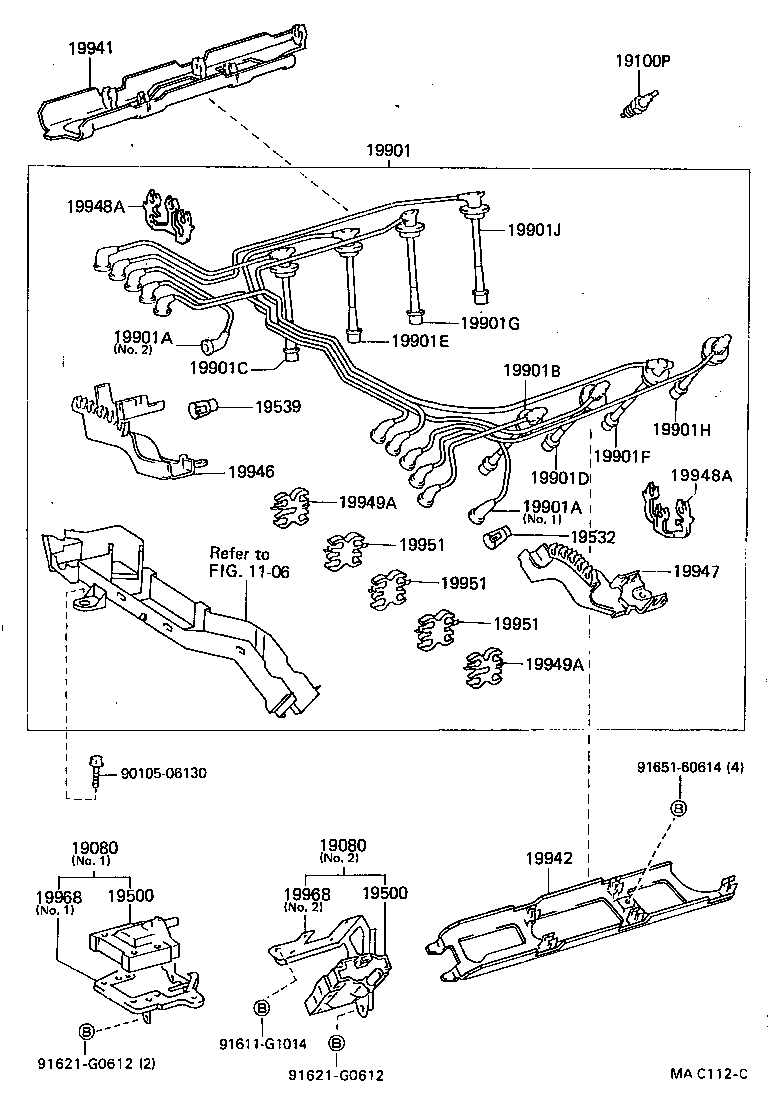

Click highlighted areas on diagram

diagram 1106 19080 19080 19100P 19500 19500 19532 19539 19901 19901A 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19901H 19901J 19941 19942 19946 19947 19948A 19948A 19949A 19949A 19951 19951 19951 19968 19968 9010506130 91611G1014 91621G0612 91621G0612 9165160614
Part # Description Qty Price
19080 - COIL ASSY, W/BRACKET & CORD
19090-50010

1UZFE..UCF1#

NO.2

 1
19080-50010

1UZFE..UCF1#

NO.1

 1
19080 - COIL ASSY, W/BRACKET & CORD
19090-50010

1UZFE..UCF1#

NO.2

 1
19080-50010

1UZFE..UCF1#

NO.1

 1
19100P - PLUG, SPARK
90919-01179

1UZFE..UCF1#

BKR6EP11

 8
90919-01178

1UZFE..UCF1#

PK20R11

 8
19500 - COIL ASSY, IGNITION
90919-02197

1UZFE..UCF1#

 2
19500 - COIL ASSY, IGNITION
90919-02197

1UZFE..UCF1#

 2
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-50010

1UZFE..UCF1#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1UZFE..UCF1#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22262

1UZFE..UCF1#

 1
19901A - CORD, COIL RESISTIVE
90919-13333

1UZFE..UCF1#

NO.1

 1
90919-13334

1UZFE..UCF1#

NO.2

 1
90919-13334

1UZFE..UCF1#

NO.2

 1
90919-13333

1UZFE..UCF1#

NO.1

 1
19901A - CORD, COIL RESISTIVE
90919-13333

1UZFE..UCF1#

NO.1

 1
90919-13334

1UZFE..UCF1#

NO.2

 1
90919-13334

1UZFE..UCF1#

NO.2

 1
90919-13333

1UZFE..UCF1#

NO.1

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12967

1UZFE..UCF1#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12968

1UZFE..UCF1#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12969

1UZFE..UCF1#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12970

1UZFE..UCF1#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12971

1UZFE..UCF1#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12972

1UZFE..UCF1#

 1
19901H - CORD, SPARK PLUG RESISTIVE, NO.7
90919-12973

1UZFE..UCF1#

 1
19901J - CORD, SPARK PLUG RESISTIVE, NO.8
90919-12974

1UZFE..UCF1#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-50020

1UZFE..UCF1#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
19942-50020

1UZFE..UCF1#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-50010

1UZFE..UCF1#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
19947-50020

1UZFE..UCF1#

 1
19948A - CLAMP, CORD, NO.5
19948-50010

1UZFE..UCF1#

 2
19948A - CLAMP, CORD, NO.5
19948-50010

1UZFE..UCF1#

 2
19949A - CLAMP, CORD, NO.6
19949-50010

1UZFE..UCF1#

 2
19949A - CLAMP, CORD, NO.6
19949-50010

1UZFE..UCF1#

 2
19951 - CLAMP, CORD, NO.7
19951-50010

1UZFE..UCF1#

 3
19951 - CLAMP, CORD, NO.7
19951-50010

1UZFE..UCF1#

 3
19951 - CLAMP, CORD, NO.7
19951-50010

1UZFE..UCF1#

 3
19968 - BRACKET, IGNITION COIL
19968-50010

1UZFE..UCF1#

NO.1

 1
19969-50010

1UZFE..UCF1#

NO.2

 1
19968 - BRACKET, IGNITION COIL
19968-50010

1UZFE..UCF1#

NO.1

 1
19969-50010

1UZFE..UCF1#

NO.2

 1
Common parts
90105-06130
91611-G1014
91621-G0612
91651-60614
Linked diagrams
1106
