UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

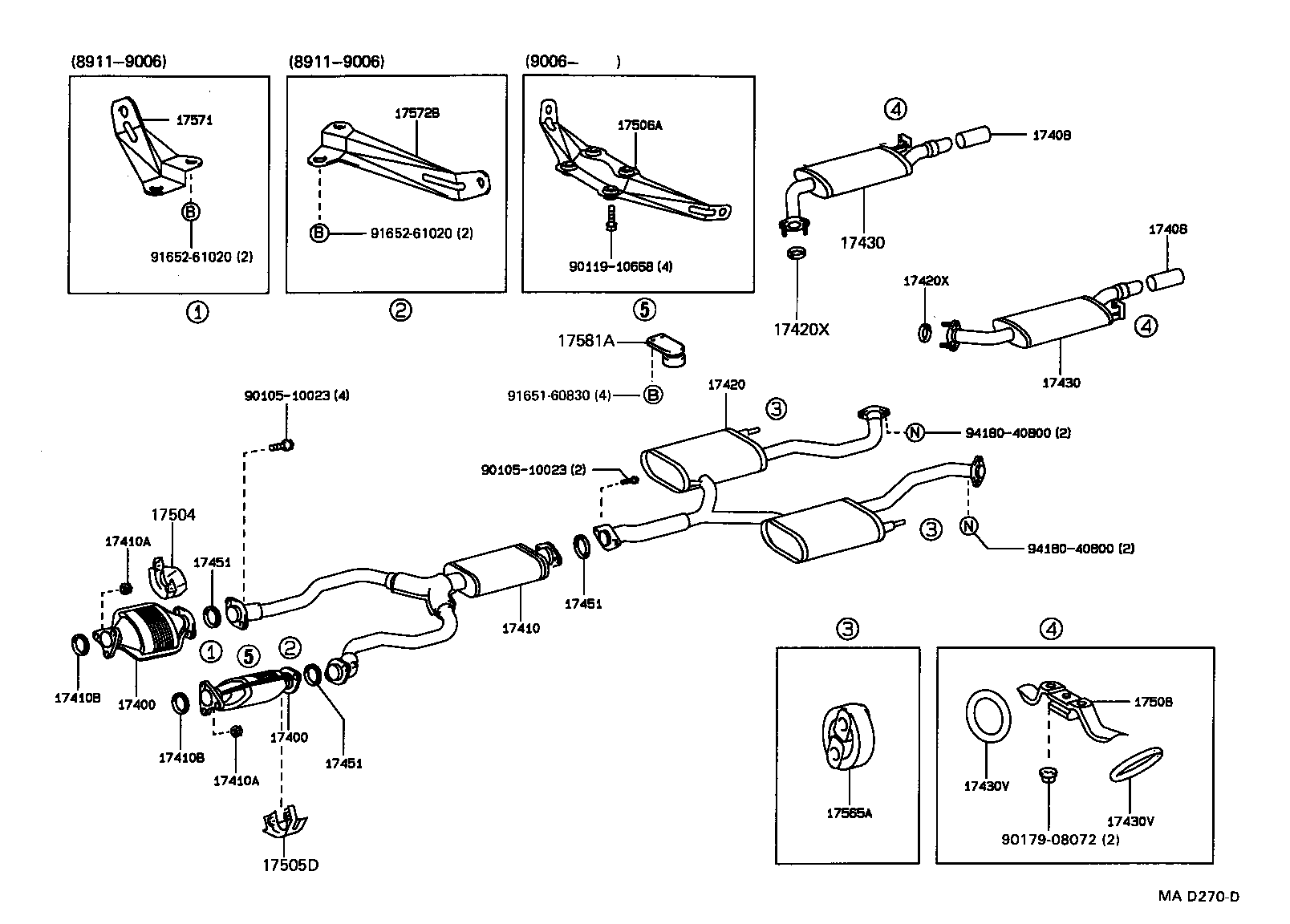

Click highlighted areas on diagram

diagram 17400 17400 17408 17408 17410 17410A 17410A 17410B 17410B 17420 17420X 17420X 17430 17430 17430V 17430V 17451 17451 17451 17504 17505D 17506A 17508 17565A 17571 17572B 17581A 9010510023 9010510023 9011910668 9017908072 9165160830 9165261020 9165261020 9418040800 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-50040

1UZFE..UCF1#

 2
18450-50110

1UZFE..UCF1#

 2
17400 - CONVERTER ASSY, W/CATALYST
18450-50040

1UZFE..UCF1#

 2
18450-50110

1UZFE..UCF1#

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-50010

1UZFE..UCF1#

 2
17408-74040

1UZFE..UCF1#

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-50010

1UZFE..UCF1#

 2
17408-74040

1UZFE..UCF1#

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-50060

1UZFE..UCF1#

 1
17410-50061

1UZFE..UCF1#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1UZFE..UCF1#

 6
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1UZFE..UCF1#

 6
17410B - GASKET, EXHAUST PIPE
90917-06043

1UZFE..UCF1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06043

1UZFE..UCF1#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-50040

1UZFE..UCF1#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

1UZFE..UCF1#

 2
90917-06045

1UZFE..UCF1#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

1UZFE..UCF1#

 2
90917-06045

1UZFE..UCF1#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-50010

1UZFE..UCF1#

右側

 1
17440-50010

1UZFE..UCF1#

左側

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-50010

1UZFE..UCF1#

右側

 1
17440-50010

1UZFE..UCF1#

左側

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

1UZFE..UCF1#

 4
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36001

1UZFE..UCF1#

 4
17451 - GASKET, EXHAUST PIPE
90917-06031

1UZFE..UCF1#

ﾘﾔ

 1
90917-06054

1UZFE..UCF1#

ﾌﾛﾝﾄ

 2
90917-06072

1UZFE..UCF1#

ﾌﾛﾝﾄ

 2
90917-06054

1UZFE..UCF1#

 3
90917-06043

1UZFE..UCF1#

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06031

1UZFE..UCF1#

ﾘﾔ

 1
90917-06054

1UZFE..UCF1#

ﾌﾛﾝﾄ

 2
90917-06072

1UZFE..UCF1#

ﾌﾛﾝﾄ

 2
90917-06054

1UZFE..UCF1#

 3
90917-06043

1UZFE..UCF1#

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06031

1UZFE..UCF1#

ﾘﾔ

 1
90917-06054

1UZFE..UCF1#

ﾌﾛﾝﾄ

 2
90917-06072

1UZFE..UCF1#

ﾌﾛﾝﾄ

 2
90917-06054

1UZFE..UCF1#

 3
90917-06043

1UZFE..UCF1#

ﾘﾔ

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-50020

1UZFE..UCF1#

 1
17504-50021

1UZFE..UCF1#

 1
17505D - BRACKET SUB-ASSY, CONVERTER SUPPORT, LH
17505-50021

1UZFE..UCF1#

 1
17505-50020

1UZFE..UCF1#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-50030

1UZFE..UCF1#

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-50010

1UZFE..UCF1#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17505-50010

1UZFE..UCF1#

 2
17565-46040

1UZFE..UCF1#

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-50020

1UZFE..UCF1#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-50010

1UZFE..UCF1#

 1
17581A - DAMPER, EXHAUST PIPE
17581-50030

1UZFE..UCF1#

 2
Common parts
90105-10023
90119-10668
90179-08072
91651-60830
91652-61020
94180-40800
