UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

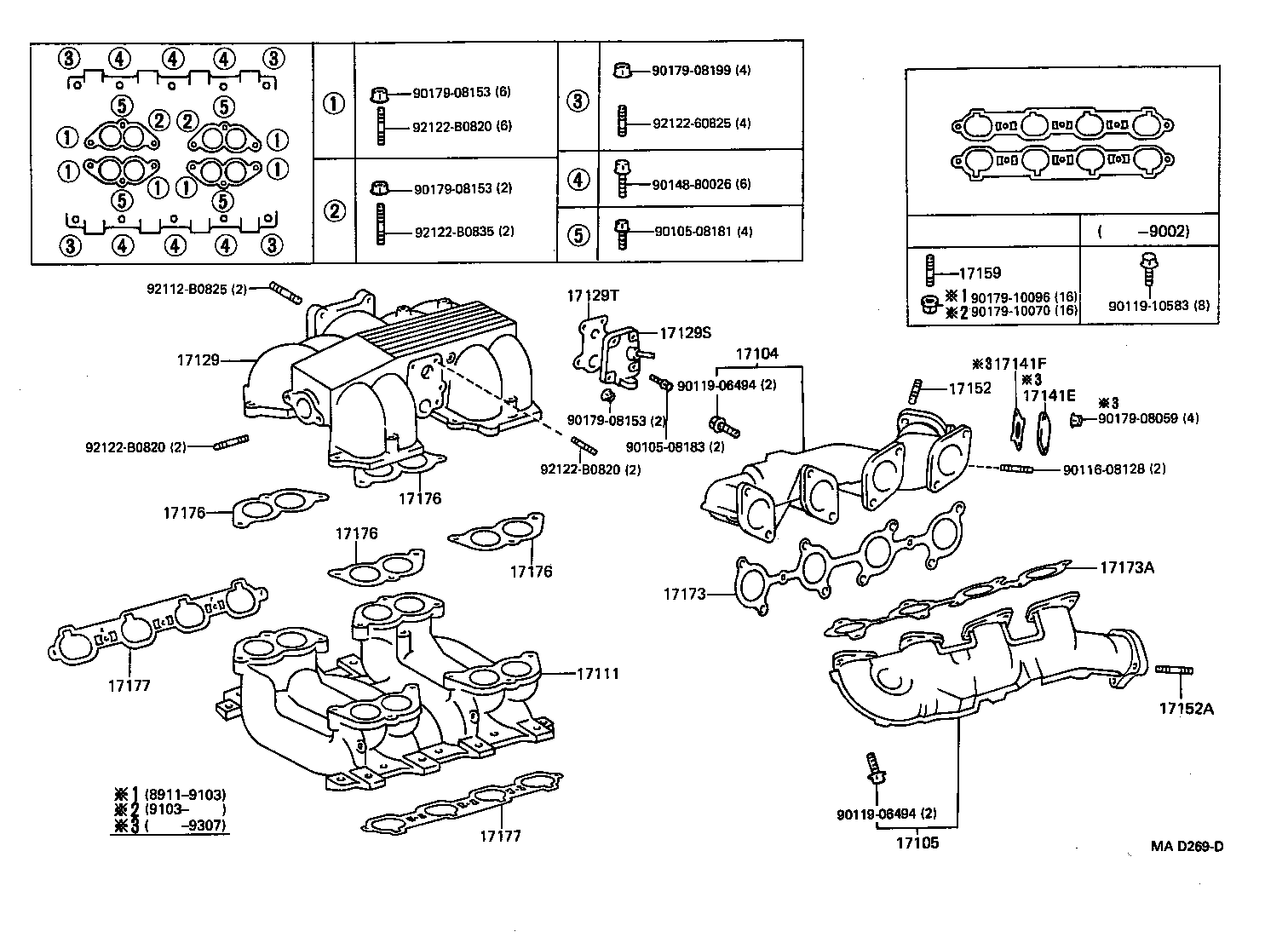

Click highlighted areas on diagram

diagram 17104 17105 17111 17129 17129S 17129T 17141E 17141F 17152 17152A 17159 17173 17173A 17176 17176 17176 17176 17177 17177 9010508181 9010508183 9011608128 9011906494 9011906494 9011910583 9014880026 9017908059 9017908153 9017908153 9017908153 9017908199 9017910070 9017910096 92112B0825 9212260825 92122B0820 92122B0820 92122B0820 92122B0835
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-50011

1UZFE..UCF1#

 1
17140-50040

1UZFE..UCF1#

 1
17140-50010

1UZFE..UCF1#

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-50011

1UZFE..UCF1#

 1
17150-50010

1UZFE..UCF1#

 1
17111 - MANIFOLD, INTAKE
17111-50020

1UZFE..UCF1#

 1
17129 - TANK, INTAKE AIR SURGE
17109-50030

1UZFE..UCF1#

 1
17109-50020

1UZFE..UCF1#

 1
17109-50010

1UZFE..UCF1#

 1
17129S - PLATE(FOR INTAKE AIR SURGE TANK)
25615-50010

1UZFE..UCF1#

 1
17129T - GASKET(FOR INTAKE AIR SURGE TANK)
25629-50010

1UZFE..UCF1#

 1
17141E - PLATE, EXHAUST MANIFOLD
25617-50010

1UZFE..UCF1#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
25634-50010

1UZFE..UCF1#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10159

1UZFE..UCF1#

 3
90126-10006

1UZFE..UCF1#

 3
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10159

1UZFE..UCF1#

 3
90126-10006

1UZFE..UCF1#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10006

1UZFE..UCF1#

 16
90116-10159

1UZFE..UCF1#

 16
90126-10015

1UZFE..UCF1#

 16
90116-10159

1UZFE..UCF1#

 9
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-50010

1UZFE..UCF1#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-50010

1UZFE..UCF1#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50020

1UZFE..UCF1#

 4
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50020

1UZFE..UCF1#

 4
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50020

1UZFE..UCF1#

 4
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-50020

1UZFE..UCF1#

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50010

1UZFE..UCF1#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50010

1UZFE..UCF1#

 2
Common parts
90105-08181
90105-08183
90116-08128
90119-06494
90119-10583
90148-80026
90179-08059
90179-08153
90179-08199
90179-10070
90179-10096
92112-B0825
92122-60825
92122-B0820
92122-B0835
