UCF10-AEPNK (1989)
Toyota Celsior
ILLUST NO. 1 OF 2(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-50020 |
1UZFE..UCF1# |
1 | ||
| 16100-50021 |
1UZFE..UCF1# |
1 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 90253-11021 |
1UZFE..UCF1# |
2 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-50010 |
1UZFE..UCF1# |
1 | ||
| 16603-50010 |
1UZFE..UCF1# LITENS |
1 | ||
| 16603-50020 |
1UZFE..UCF1# AISIN |
1 | ||
| 16604 - PULLEY SUB-ASSY, IDLER, NO.2 | ||||
| 16604-50010 |
1UZFE..UCF1# |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-50020 |
1UZFE..UCF1# |
1 | ||
| 16620-0W030 |
1UZFE..UCF1# |
1 | ||
| 16620-50011 |
1UZFE..UCF1# |
1 | ||
| 16659 - PLATE, IDLER PULLEY COVER, NO.2 | ||||
| 16659-50010 |
1UZFE..UCF1# |
1 | ||
| 16659-50020 |
1UZFE..UCF1# |
1 | ||
| 16920 - PUMP ASSY, HYDRAULIC MOTOR VANE | ||||
| 16920-50010 |
1UZFE..UCF1# |
1 | ||
| 16920-50011 |
1UZFE..UCF1# |
1 | ||
| Common parts | ||||
| 90105-10246 | ||||
| 90105-10247 | ||||
| 90116-08157 | ||||
| 90116-08300 | ||||
| 90116-08301 | ||||
| 90119-08721 | ||||
| 90119-08764 | ||||
| 90119-10552 | ||||
| 90179-08044 | ||||
| 90179-08153 | ||||
| 90179-10144 | ||||

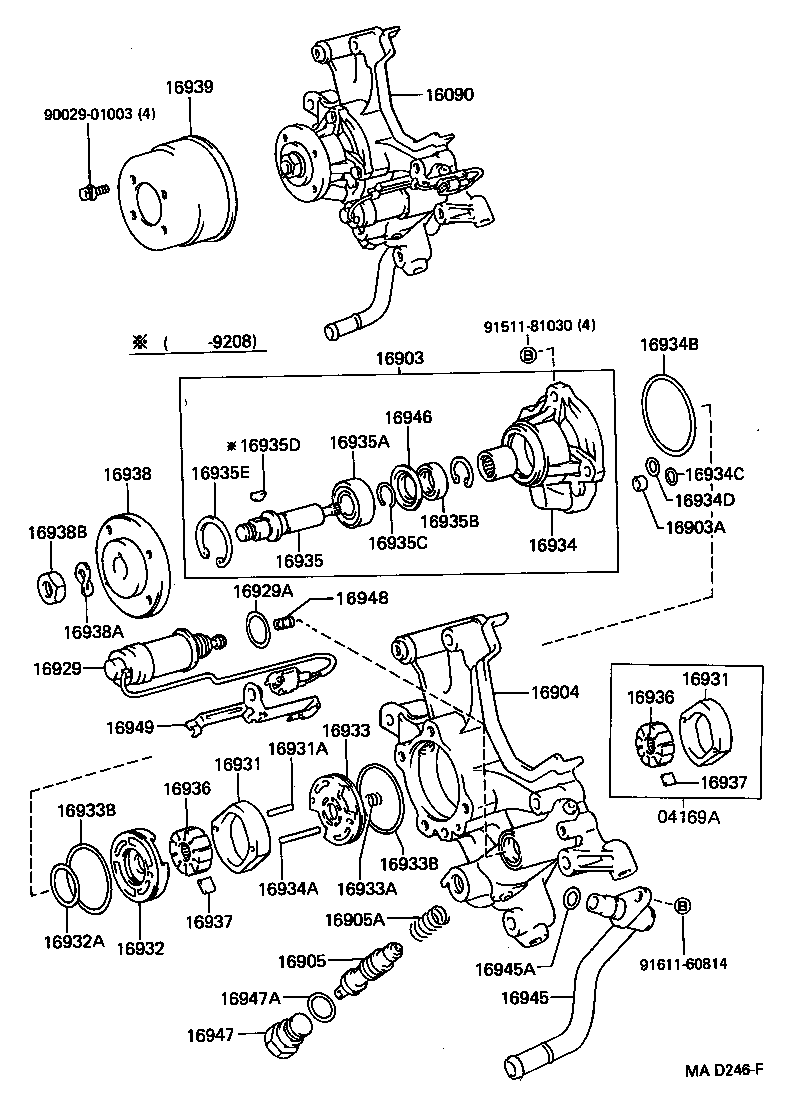

ILLUST NO. 2 OF 2(8911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04169A - ROTOR KIT, VANE PUMP | ||||
| 04169-50010 |
1UZFE..UCF1# |
1 | ||
| 16090 - PUMP ASSY, HYDRAULIC MOTOR VANE W/O PULLEY | ||||
| 16090-50011 |
1UZFE..UCF1# |
1 | ||
| 16090-50010 |
1UZFE..UCF1# |
1 | ||
| 16903 - HOUSING SUB-ASSY, HYDRAULIC MOTOR PUMP, FRONT | ||||
| 16903-50011 |
1UZFE..UCF1# |
1 | ||
| 16903-50010 |
1UZFE..UCF1# |
1 | ||
| 16903A - PIN, RING | ||||
| 90029-15800 |
1UZFE..UCF1# |
1 | ||
| 16904 - HOUSING SUB-ASSY, HYDRAULIC MOTOR PUMP, REAR | ||||
| 16904-50011 |
1UZFE..UCF1# |
1 | ||
| 16904-50010 |
1UZFE..UCF1# |
1 | ||
| 16905 - BODY SUB-ASSY, HYDRAULIC MOTOR PUMP SPOOL VALVE | ||||
| 16905-50010 |
1UZFE..UCF1# MARK 0 |
1 | ||
| 16905-50020 |
1UZFE..UCF1# MARK 1 |
1 | ||
| 16905-50030 |
1UZFE..UCF1# MARK 2 |
1 | ||
| 16905-50040 |
1UZFE..UCF1# MARK 3 |
1 | ||
| 16905-50050 |
1UZFE..UCF1# MARK 4 |
1 | ||
| 16905-50041 |
1UZFE..UCF1# MARK 8 |
1 | ||
| 16905-50031 |
1UZFE..UCF1# MARK 7 |
1 | ||
| 16905-50060 |
1UZFE..UCF1# MARK 10 |
1 | ||
| 16905-50021 |
1UZFE..UCF1# MARK 6 |
1 | ||
| 16905-50011 |
1UZFE..UCF1# MARK 5 |
1 | ||
| 16905-50051 |
1UZFE..UCF1# MARK 9 |
1 | ||
| 16905A - SPRING, COMPRESSION | ||||
| 90029-60005 |
1UZFE..UCF1# |
1 | ||
| 16929 - VALVE, HYDRAULIC MOTOR CONTROL | ||||
| 16929-50010 |
1UZFE..UCF1# |
1 | ||
| 16929A - RING, O(FOR HYDRAULIC MOTOR CONTROL VALVE) | ||||
| 90029-20031 |
1UZFE..UCF1# |
1 | ||
| 16931 - RING, HYDRAULIC MOTOR VANE PUMP CAM | ||||
| 16931-50010 |
1UZFE..UCF1# ﾏｰｸ 1 |
1 | ||
| 16931-50020 |
1UZFE..UCF1# ﾏｰｸ 2 |
1 | ||
| 16931-50050 |
1UZFE..UCF1# ﾏｰｸ 5 |
1 | ||
| 16931-50030 |
1UZFE..UCF1# ﾏｰｸ 3 |
1 | ||
| 16931-50040 |
1UZFE..UCF1# ﾏｰｸ 4 |
1 | ||
| 16931 - RING, HYDRAULIC MOTOR VANE PUMP CAM | ||||
| 16931-50010 |
1UZFE..UCF1# ﾏｰｸ 1 |
1 | ||
| 16931-50020 |
1UZFE..UCF1# ﾏｰｸ 2 |
1 | ||
| 16931-50050 |
1UZFE..UCF1# ﾏｰｸ 5 |
1 | ||
| 16931-50030 |
1UZFE..UCF1# ﾏｰｸ 3 |
1 | ||
| 16931-50040 |
1UZFE..UCF1# ﾏｰｸ 4 |
1 | ||
| 16931A - PIN, STRAIGHT | ||||
| 90029-14201 |
1UZFE..UCF1# |
1 | ||
| 16932 - PLATE, THRUST | ||||
| 16932-50010 |
1UZFE..UCF1# |
1 | ||
| 16932A - RING, O(FOR THRUST PLATE) | ||||
| 90029-20024 |
1UZFE..UCF1# |
1 | ||
| 16933 - PLATE, PRESSURE | ||||
| 16933-50010 |
1UZFE..UCF1# |
1 | ||
| 16933A - SPRING, COMPRESSION | ||||
| 90029-60006 |
1UZFE..UCF1# |
1 | ||
| 16933B - RING, O(FOR PRESSURE PLATE) | ||||
| 90029-20029 |
1UZFE..UCF1# |
2 | ||
| 16933B - RING, O(FOR PRESSURE PLATE) | ||||
| 90029-20029 |
1UZFE..UCF1# |
2 | ||
| 16934 - HOUSING, HIDRAULIC MOTOR PUMP, FRONT | ||||
| 16934-50010 |
1UZFE..UCF1# |
1 | ||
| 16934A - PIN, STRAIGHT | ||||
| 90029-14200 |
1UZFE..UCF1# |
1 | ||
| 16934B - RING, O(FOR HIDRAULIC MOTOR PUMP FRONT HOUSING) | ||||
| 90029-20026 |
1UZFE..UCF1# |
1 | ||
| 16934C - RING, O(FOR HIDRAULIC MOTOR PUMP FRONT HOUSING) | ||||
| 90029-20027 |
1UZFE..UCF1# |
1 | ||
| 16934D - RING, O(FOR HIDRAULIC MOTOR PUMP FRONT HOUSING) | ||||
| 90029-20028 |
1UZFE..UCF1# |
1 | ||
| 16935 - SHAFT, HYDRAULIC MOTOR VANE PUMP DRAIVE | ||||
| 16935-50010 |
1UZFE..UCF1# |
1 | ||
| 16935-50011 |
1UZFE..UCF1# |
1 | ||
| 16935A - BEARING, RADIAL BALL(FOR HYD MOTOR VANE PUMP DRIVE SHAF | ||||
| 90029-36005 |
1UZFE..UCF1# |
1 | ||
| 16935B - SEAL, OIL(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 90029-21016 |
1UZFE..UCF1# |
1 | ||
| 16935C - RING, SHAFT SPRING(FOR HYD MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 90029-52402 |
1UZFE..UCF1# |
1 | ||
| 16935D - KEY, WOODRUFF(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT | ||||
| 90029-18001 |
1UZFE..UCF1# |
1 | ||
| 16935E - RING, SNAP(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) | ||||
| 96151-04000 |
1UZFE..UCF1# |
1 | ||
| 16936 - ROTOR, HYDRAULIC MOTOR VANE PUMP | ||||
| 16936-50040 |
1UZFE..UCF1# ﾏｰｸ 4 |
1 | ||
| 16936-50050 |
1UZFE..UCF1# ﾏｰｸ 5 |
1 | ||
| 16936-50020 |
1UZFE..UCF1# ﾏｰｸ 2 |
1 | ||
| 16936-50010 |
1UZFE..UCF1# ﾏｰｸ 1 |
1 | ||
| 16936-50030 |
1UZFE..UCF1# ﾏｰｸ 3 |
1 | ||
| 16936 - ROTOR, HYDRAULIC MOTOR VANE PUMP | ||||
| 16936-50040 |
1UZFE..UCF1# ﾏｰｸ 4 |
1 | ||
| 16936-50050 |
1UZFE..UCF1# ﾏｰｸ 5 |
1 | ||
| 16936-50020 |
1UZFE..UCF1# ﾏｰｸ 2 |
1 | ||
| 16936-50010 |
1UZFE..UCF1# ﾏｰｸ 1 |
1 | ||
| 16936-50030 |
1UZFE..UCF1# ﾏｰｸ 3 |
1 | ||
| 16937 - VANE, HYDRAULIC MOTOR VANE PUMP | ||||
| 16937-50010 |
1UZFE..UCF1# ROTOR MARK 1 |
10 | ||
| 16937-50040 |
1UZFE..UCF1# ﾏｰｸ 4 |
10 | ||
| 16937-50050 |
1UZFE..UCF1# ROTOR MARK 5 |
10 | ||
| 16937-50020 |
1UZFE..UCF1# ﾏｰｸ 2 |
10 | ||
| 16937-50010 |
1UZFE..UCF1# ﾏｰｸ 1 |
10 | ||
| 16937-50020 |
1UZFE..UCF1# ROTOR MARK 2 |
10 | ||
| 16937-50040 |
1UZFE..UCF1# ROTOR MARK 4 |
10 | ||
| 16937-50030 |
1UZFE..UCF1# ﾏｰｸ 3 |
10 | ||
| 16937-50030 |
1UZFE..UCF1# ROTOR MARK 3 |
10 | ||
| 16937-50050 |
1UZFE..UCF1# ﾏｰｸ 5 |
10 | ||
| 16937 - VANE, HYDRAULIC MOTOR VANE PUMP | ||||
| 16937-50010 |
1UZFE..UCF1# ROTOR MARK 1 |
10 | ||
| 16937-50040 |
1UZFE..UCF1# ﾏｰｸ 4 |
10 | ||
| 16937-50050 |
1UZFE..UCF1# ROTOR MARK 5 |
10 | ||
| 16937-50020 |
1UZFE..UCF1# ﾏｰｸ 2 |
10 | ||
| 16937-50010 |
1UZFE..UCF1# ﾏｰｸ 1 |
10 | ||
| 16937-50020 |
1UZFE..UCF1# ROTOR MARK 2 |
10 | ||
| 16937-50040 |
1UZFE..UCF1# ROTOR MARK 4 |
10 | ||
| 16937-50030 |
1UZFE..UCF1# ﾏｰｸ 3 |
10 | ||
| 16937-50030 |
1UZFE..UCF1# ROTOR MARK 3 |
10 | ||
| 16937-50050 |
1UZFE..UCF1# ﾏｰｸ 5 |
10 | ||
| 16938 - SEAT, HYDRAULIC MOTOR VANE PUMP PULLEY | ||||
| 16938-50010 |
1UZFE..UCF1# |
1 | ||
| 16938-50011 |
1UZFE..UCF1# |
1 | ||
| 16938A - WASHER WAVE(FOR HYDRAULIC MOTOR VANE PUMP PULLEY SEAT) | ||||
| 90029-11400 |
1UZFE..UCF1# |
1 | ||
| 90206-15081 |
1UZFE..UCF1# |
1 | ||
| 16938B - NUT, HEXAGON(FOR HYDRAULIC MOTOR VANE PUMP PULLEY SEAT) | ||||
| 90029-07002 |
1UZFE..UCF1# |
1 | ||
| 90029-07007 |
1UZFE..UCF1# |
1 | ||
| 16939 - PULLEY, HYDRAULIC MOTOR VANE PUMP | ||||
| 16939-50010 |
1UZFE..UCF1# |
1 | ||
| 16945 - UNION, HYDRAULIC MOTOR VANE PUMP SUCTION PORT | ||||
| 16945-50010 |
1UZFE..UCF1# |
1 | ||
| 16945A - RING, O(FOR SUCTION PORT UNION) | ||||
| 90029-20023 |
1UZFE..UCF1# |
1 | ||
| 16946 - RETAINER, OIL SEAL | ||||
| 16946-50010 |
1UZFE..UCF1# |
1 | ||
| 16947 - PLUG, HYDRAULIC MOTOR VANE PUMP SCREW | ||||
| 16947-50010 |
1UZFE..UCF1# |
1 | ||
| 16947A - RING, O(FOR SCREW PLUG) | ||||
| 90029-20030 |
1UZFE..UCF1# |
1 | ||
| 16948 - FILTER, HYDRAULIC MOTOR VANE PUMP | ||||
| 16948-50010 |
1UZFE..UCF1# |
1 | ||
| 16949 - CLAMP, HYDRAULIC MOTOR VANE PUMP | ||||
| 16949-50010 |
1UZFE..UCF1# |
1 | ||
| Common parts | ||||
| 90029-01003 | ||||
| 91511-81030 | ||||
| 91611-60814 | ||||
