UCF10-AEPNK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

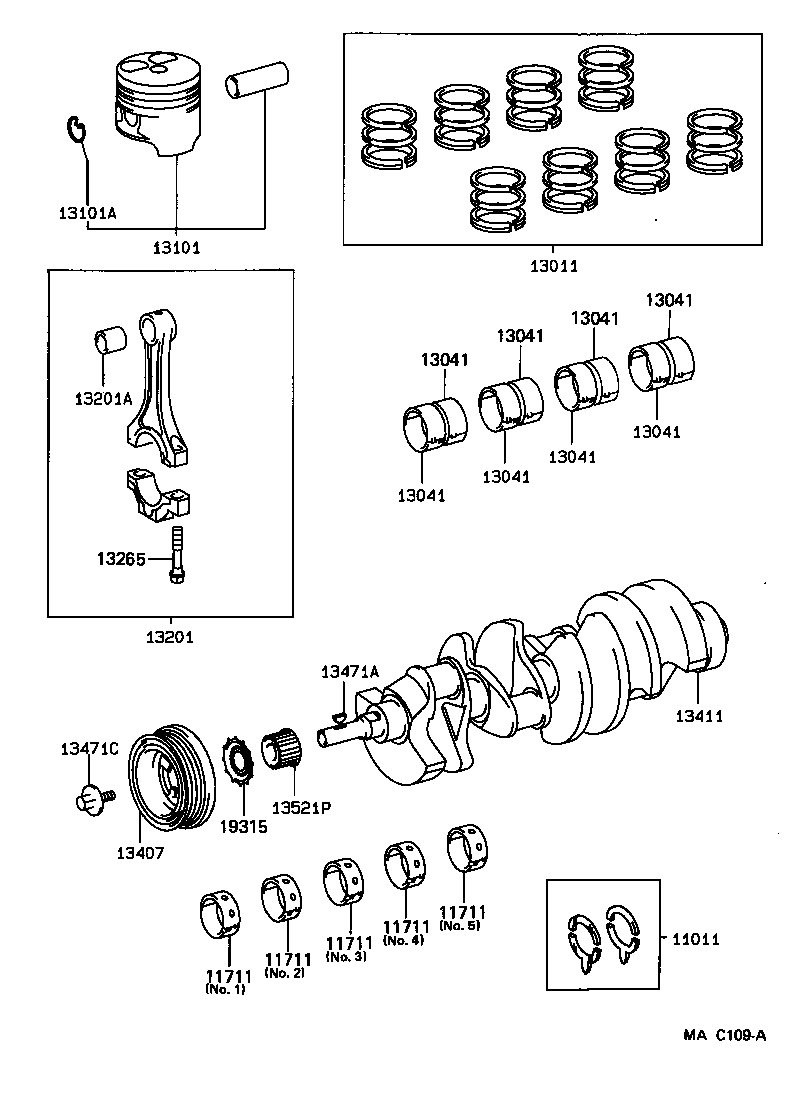

Click highlighted areas on diagram

diagram 11011 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13265 13407 13411 13471A 13471C 13521P 19315
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-50010

1UZFE..UCF1#

STD

 1
11711 - BEARING, CRANKSHAFT
11701-5001001

1UZFE..UCF1#

MARK 1,NO.1,5

 2
11701-5001003

1UZFE..UCF1#

MARK 3,NO.1,5

 2
11071-5001002

1UZFE..UCF1#

MARK 2,NO.2,3,4

 3
11071-5001005

1UZFE..UCF1#

MARK 5,NO.2,3,4

 3
11071-5001004

1UZFE..UCF1#

MARK 4,NO.2,3,4

 3
11701-5001002

1UZFE..UCF1#

MARK 2,NO.1,5

 2
11071-5001001

1UZFE..UCF1#

MARK 1,NO.2,3,4

 3
11701-5001004

1UZFE..UCF1#

MARK 4,NO.1,5

 2
11071-5001003

1UZFE..UCF1#

MARK 3,NO.2,3,4

 3
11701-5001005

1UZFE..UCF1#

MARK 5,NO.1,5

 2
11711 - BEARING, CRANKSHAFT
11701-5001001

1UZFE..UCF1#

MARK 1,NO.1,5

 2
11701-5001003

1UZFE..UCF1#

MARK 3,NO.1,5

 2
11071-5001002

1UZFE..UCF1#

MARK 2,NO.2,3,4

 3
11071-5001005

1UZFE..UCF1#

MARK 5,NO.2,3,4

 3
11071-5001004

1UZFE..UCF1#

MARK 4,NO.2,3,4

 3
11701-5001002

1UZFE..UCF1#

MARK 2,NO.1,5

 2
11071-5001001

1UZFE..UCF1#

MARK 1,NO.2,3,4

 3
11701-5001004

1UZFE..UCF1#

MARK 4,NO.1,5

 2
11071-5001003

1UZFE..UCF1#

MARK 3,NO.2,3,4

 3
11701-5001005

1UZFE..UCF1#

MARK 5,NO.1,5

 2
11711 - BEARING, CRANKSHAFT
11701-5001001

1UZFE..UCF1#

MARK 1,NO.1,5

 2
11701-5001003

1UZFE..UCF1#

MARK 3,NO.1,5

 2
11071-5001002

1UZFE..UCF1#

MARK 2,NO.2,3,4

 3
11071-5001005

1UZFE..UCF1#

MARK 5,NO.2,3,4

 3
11071-5001004

1UZFE..UCF1#

MARK 4,NO.2,3,4

 3
11701-5001002

1UZFE..UCF1#

MARK 2,NO.1,5

 2
11071-5001001

1UZFE..UCF1#

MARK 1,NO.2,3,4

 3
11701-5001004

1UZFE..UCF1#

MARK 4,NO.1,5

 2
11071-5001003

1UZFE..UCF1#

MARK 3,NO.2,3,4

 3
11701-5001005

1UZFE..UCF1#

MARK 5,NO.1,5

 2
11711 - BEARING, CRANKSHAFT
11701-5001001

1UZFE..UCF1#

MARK 1,NO.1,5

 2
11701-5001003

1UZFE..UCF1#

MARK 3,NO.1,5

 2
11071-5001002

1UZFE..UCF1#

MARK 2,NO.2,3,4

 3
11071-5001005

1UZFE..UCF1#

MARK 5,NO.2,3,4

 3
11071-5001004

1UZFE..UCF1#

MARK 4,NO.2,3,4

 3
11701-5001002

1UZFE..UCF1#

MARK 2,NO.1,5

 2
11071-5001001

1UZFE..UCF1#

MARK 1,NO.2,3,4

 3
11701-5001004

1UZFE..UCF1#

MARK 4,NO.1,5

 2
11071-5001003

1UZFE..UCF1#

MARK 3,NO.2,3,4

 3
11701-5001005

1UZFE..UCF1#

MARK 5,NO.1,5

 2
11711 - BEARING, CRANKSHAFT
11701-5001001

1UZFE..UCF1#

MARK 1,NO.1,5

 2
11701-5001003

1UZFE..UCF1#

MARK 3,NO.1,5

 2
11071-5001002

1UZFE..UCF1#

MARK 2,NO.2,3,4

 3
11071-5001005

1UZFE..UCF1#

MARK 5,NO.2,3,4

 3
11071-5001004

1UZFE..UCF1#

MARK 4,NO.2,3,4

 3
11701-5001002

1UZFE..UCF1#

MARK 2,NO.1,5

 2
11071-5001001

1UZFE..UCF1#

MARK 1,NO.2,3,4

 3
11701-5001004

1UZFE..UCF1#

MARK 4,NO.1,5

 2
11071-5001003

1UZFE..UCF1#

MARK 3,NO.2,3,4

 3
11701-5001005

1UZFE..UCF1#

MARK 5,NO.1,5

 2
13011 - RING SET, PISTON
13011-50040

1UZFE..UCF1#

STD

 1
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13041 - BEARING, CONNECTING ROD
13041-5002005

1UZFE..UCF1#

MARK 5

 8
13041-5002004

1UZFE..UCF1#

MARK 4

 8
13041-5002006

1UZFE..UCF1#

MARK 6

 8
13041-5002002

1UZFE..UCF1#

MARK 2

 8
13041-5002003

1UZFE..UCF1#

MARK 3

 8
13041-5002007

1UZFE..UCF1#

MARK 7

 8
13101 - PISTON SUB-ASSY, W/PIN
13101-5002001

1UZFE..UCF1#

STD,MARK 1,右側

 4
13101-5002002

1UZFE..UCF1#

STD,MARK 2,右側

 4
13301-5001002

1UZFE..UCF1#

STD,MARK 2,左側

 4
13301-5001001

1UZFE..UCF1#

STD,MARK 1,左側

 4
13301-5001003

1UZFE..UCF1#

STD,MARK 3,左側

 4
13101-5002003

1UZFE..UCF1#

STD,MARK 3,右側

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25005

1UZFE..UCF1#

 16
90521-25004

1UZFE..UCF1#

 16
13201 - ROD SUB-ASSY, CONNECTING
13201-50020

1UZFE..UCF1#

 8
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73119

1UZFE..UCF1#

 8
13265 - BOLT, CONNECTING ROD
13265-50020

1UZFE..UCF1#

 16
13407 - DAMPER SUB-ASSY, CRANKSHAFT
13407-50030

1UZFE..UCF1#

 1
13411 - CRANKSHAFT
13411-50020

1UZFE..UCF1#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20519

1UZFE..UCF1#

 1
90280-05005

1UZFE..UCF1#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-18005

1UZFE..UCF1#

 1
90109-18003

1UZFE..UCF1#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-50020

1UZFE..UCF1#

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-50010

1UZFE..UCF1#

 1
