UCF10-AEPGK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )B,C

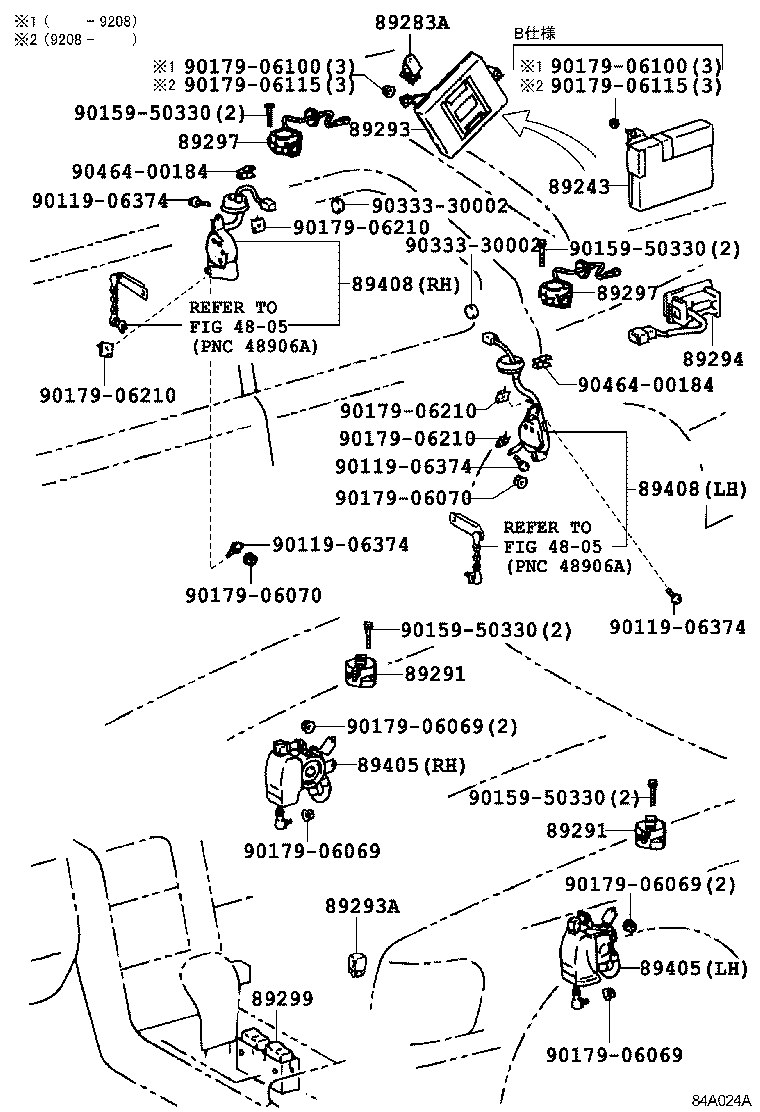

Click highlighted areas on diagram

diagram 4805 4805 89243 89283A 89291 89291 89293 89293A 89294 89297 89297 89299 89405 89405 89408 89408 9011906374 9011906374 9011906374 9011906374 9015950330 9015950330 9015950330 9015950330 9017906069 9017906069 9017906069 9017906069 9017906070 9017906070 9017906100 9017906100 9017906115 9017906115 9017906210 9017906210 9017906210 9017906210 9033330002 9033330002 9046400184 9046400184
Part # Description Qty Price
89243 - COMPUTER, ABSORBER CONTROL
89243-50011

UCF10..B

 1
89243-50010

UCF10..B

 1
89243-50020

UCF10..B

 1
Common parts
90119-06374
90159-50330
90179-06069
90179-06070
90179-06100
90179-06115
90179-06210
90333-30002
90464-00184
Linked diagrams
4805
