UCF10-AEPGK (1989)

Toyota Celsior

Production Nov 1989 - Oct 1994
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

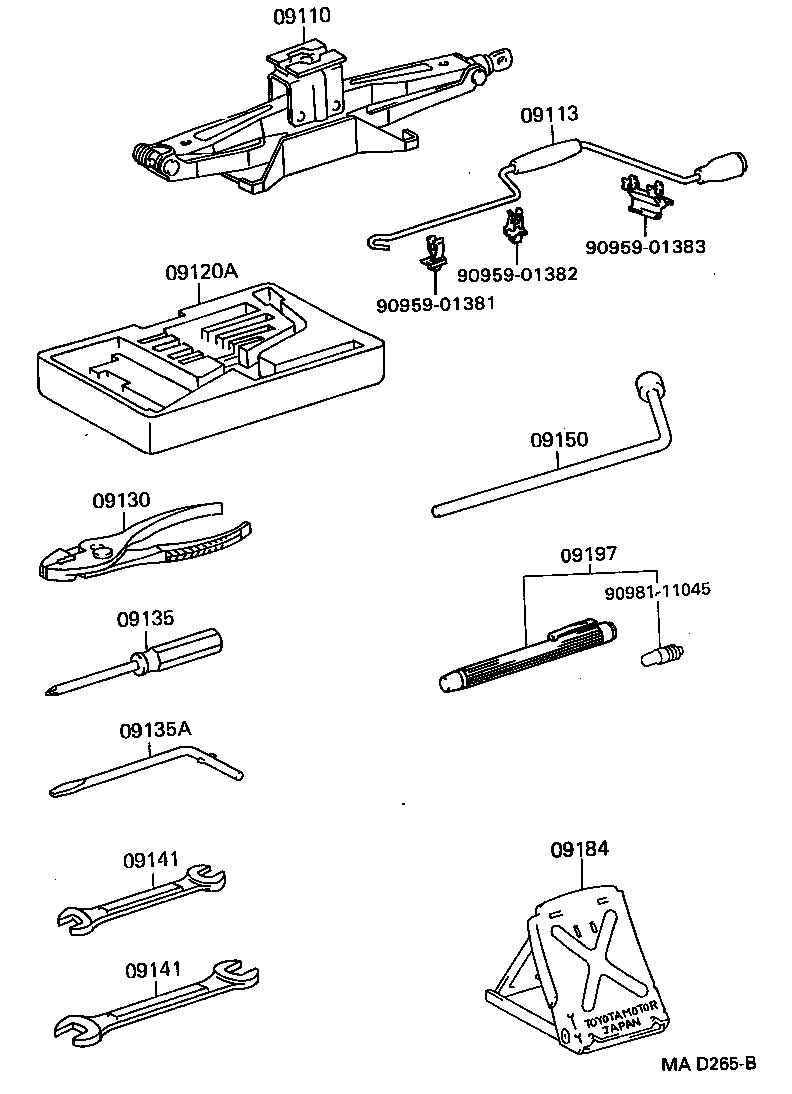

Click highlighted areas on diagram

diagram 09110 09113 09120A 09130 09135 09135A 09141 09141 09150 09184 09197 9095901381 9095901382 9095901383 9098111045
Part # Description Qty Price
09110 - JACK ASSY
09111-50021

UCF1#

 1
09111-50030

UCF1#

 1
09111-22050

UCF1#

 1
09111-50031

UCF1#

 1
09111-50020

UCF1#

 1
09113 - HANDLE, JACK
09113-50010

UCF1#

 1
09113-50020

UCF1#

 1
09120A - CASE, TOOL
09120-50010

UCF1#

 1
09130 - PLIERS
09130-50020

UCF1#

 1
09130-50030

UCF1#

 1
09135 - DRIVER, SCREW
09135-50030

UCF1#

 1
09135-50040

UCF1#

 1
09135A - BIT, SCREW DRIVER
09135-50010

UCF1#

 1
09135-50010

UCF1#..B,C

 1
09141 - SPANNER
09141-50040

UCF1#

12 X 14

 1
09141-50050

UCF1#

8 X 10

 1
09141-50030

UCF1#

8 X 10

 1
09141-50060

UCF1#

12 X 14

 1
09141 - SPANNER
09141-50040

UCF1#

12 X 14

 1
09141-50050

UCF1#

8 X 10

 1
09141-50030

UCF1#

8 X 10

 1
09141-50060

UCF1#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-50020

UCF1#

 1
09150-50010

UCF1#

 1
09184 - STOPPER, WHEEL
09184-50010

UCF1#

 1
09197 - LIGHT, PEN
09197-50030

UCF1#

 1
09197-50020

UCF1#

 1
Common parts
90959-01381
90959-01382
90959-01383
90981-11045
