ZZT231-BLPVF (1999)

Toyota Celica

Production Aug 1999 - Apr 2006
Engine 2ZZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

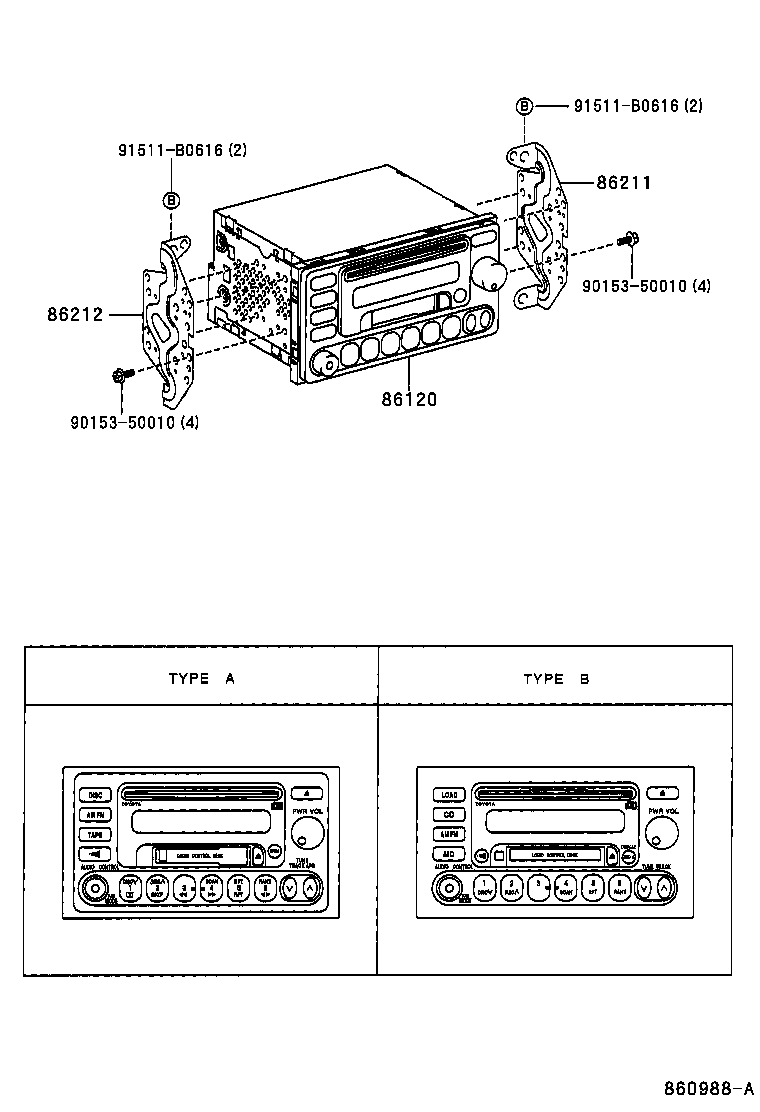

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

diagram 86120 86211 86212 9015350010 9015350010 91511B0616 91511B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2B730

ZZT23#

MATSUSHITA,ID=55848,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-2B660

ZZT23#

MATSUSHITA,ID=55827,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-2B670

ZZT23#

MATSUSHITA,ID=50301,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-2B740

ZZT23#

MATSUSHITA,ID=50318,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-20410

ZZT23#

 1
86211-20410

ZZT23#

 1
86212 - BRACKET, RADIO, NO.2
86212-20400

ZZT23#

 1
86212-20400

ZZT23#

 1
Common parts
90153-50010
91511-B0616

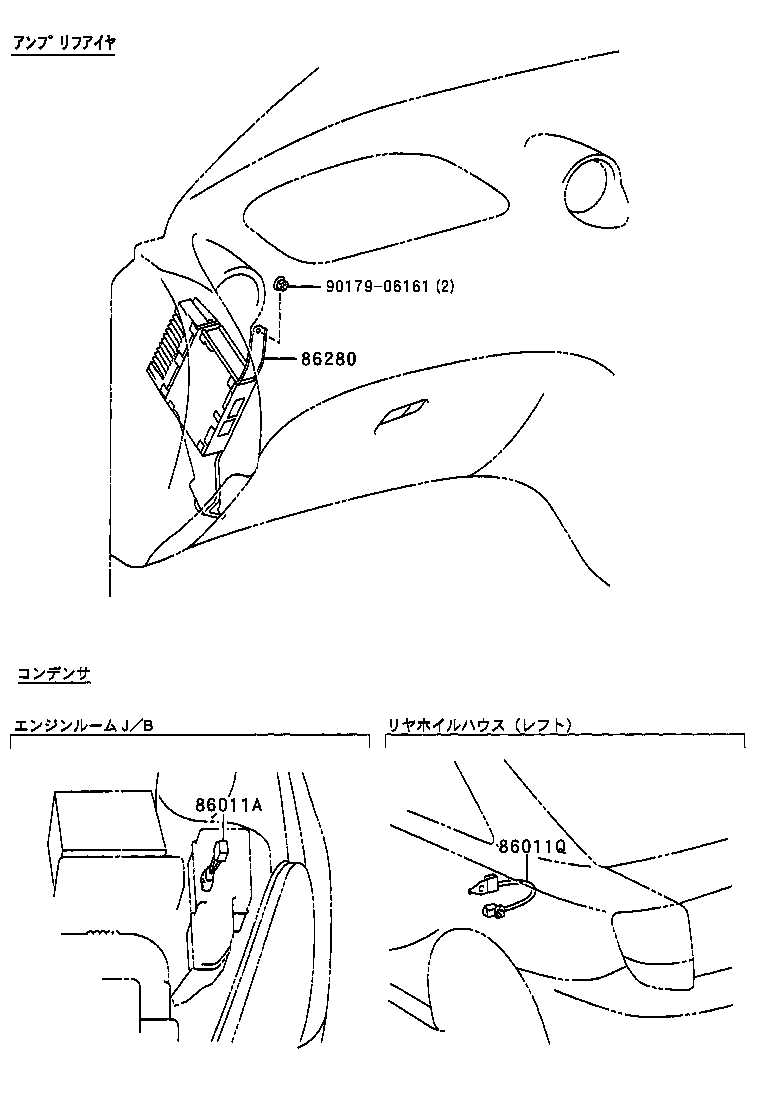

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

diagram 86011A 86011Q 86280 9017906161
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04144

ZZT23#

 1
90980-04144

ZZT23#

 1
86011Q - CONDENSER, RADIO SETTING
90980-04134

ZZT23#

 1
90980-04134

ZZT23#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-20450

ZZT23#

 1
86280-20450

ZZT23#

 1
Common parts
90179-06161
