ZZT231-BLPVF (1999)
Toyota Celica

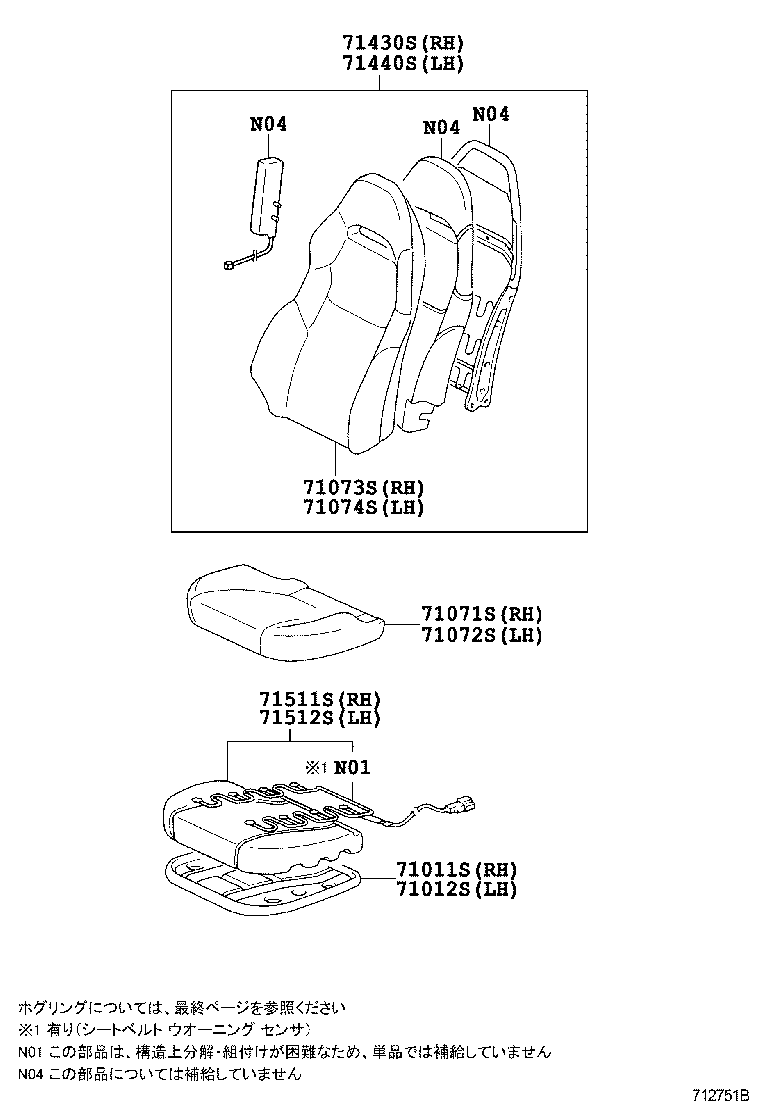

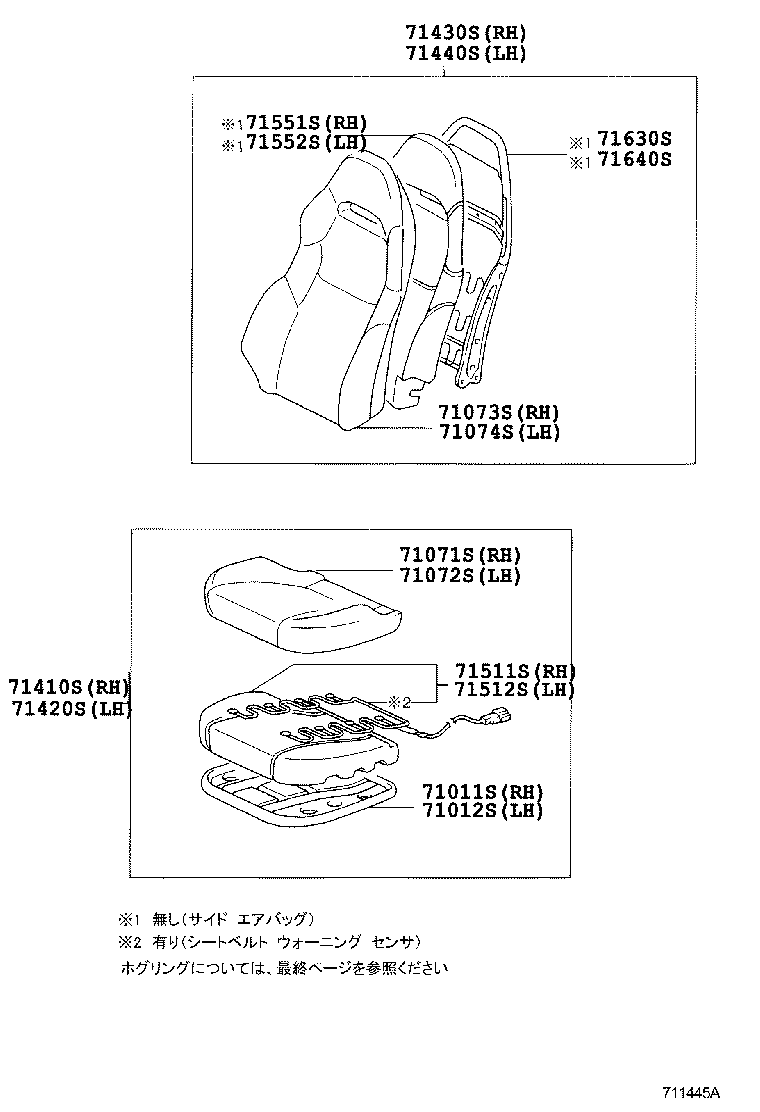

ILLUST NO. 1 OF 2(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-20560 |
ZZT23# |
1 | ||
| 71610-20560 |
ZZT23# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-20560 |
ZZT23# |
1 | ||
| 71610-20560 |
ZZT23# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2H21021 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H310C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H250C3 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H300C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H210C5 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H210C4 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H310C1 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H210C3 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H250C4 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H25020 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H250C5 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H300C1 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H250C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H25021 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H210C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H21020 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2G540C3 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G600C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G500C3 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G50020 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G500C4 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G54021 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G500C5 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G590C1 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G590C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G50021 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G540C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G500C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G54020 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G540C5 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G540C4 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G600C1 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2H290C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H250C1 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71073-2H25121 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H250C2 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G260C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-2H290C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71073-2H290C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H29120 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H250C0 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H29121 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H25120 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H291C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71073-2H341C3 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G261C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71073-2H340C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-2H251C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2G250C0 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G330C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-2G25121 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G280C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G251C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G340C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-2G250C2 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G250C1 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G280C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G341C3 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G281C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G28121 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G331C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G280C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G25120 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G28120 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2H760C2 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71410-2H760C0 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71410-2H770C1 |
ZZT23# ***,ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71410-2H770C0 |
ZZT23# ***,ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71410-2H760C1 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71410-2H770C2 |
ZZT23# ***,ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71410-2H860C0 |
ZZT231 ***,ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71410-2H850C0 |
ZZT231 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2H390C1 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71420-2H480C0 |
ZZT231 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71420-2H490C0 |
ZZT231 ***,ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71420-2H390C0 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71420-2H390C2 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71420-2H400C0 |
ZZT23# ***,ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71420-2H490C1 |
ZZT231 ***,ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71420-2H400C1 |
ZZT23# ***,ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71420-2H400C2 |
ZZT23# ***,ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-20170C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20170C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71040-20160C0 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20171C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71040-2017220 |
ZZT23# ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71040-20171C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71040-2017221 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71040-20171C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20172C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20160C2 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20080C0 |
ZZT231 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71040-20170C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71040-20251C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71040-20160C1 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71040-20252C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71040-20250C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-20060C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-20050C0 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-20060C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20060C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71070-20050C2 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20140C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71070-20050C1 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71070-20141C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71070-20062C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-20142C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71070-20130C0 |
ZZT231 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71070-20061C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71070-2006220 |
ZZT23# ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71070-20061C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20061C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-2006221 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20810 |
ZZT23# |
1 | ||
| 71511-20810 |
ZZT23# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-20060 |
ZZT23# |
1 | ||
| 71052-20060 |
ZZT23# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20490 |
ZZT23# |
1 | ||
| 71551-20490 |
ZZT23# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20490 |
ZZT23# |
1 | ||
| 71551-20490 |
ZZT23# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20830 |
ZZT23# |
1 | ||
| 71630-20830 |
ZZT23# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20830 |
ZZT23# |
1 | ||
| 71630-20830 |
ZZT23# |
1 | ||

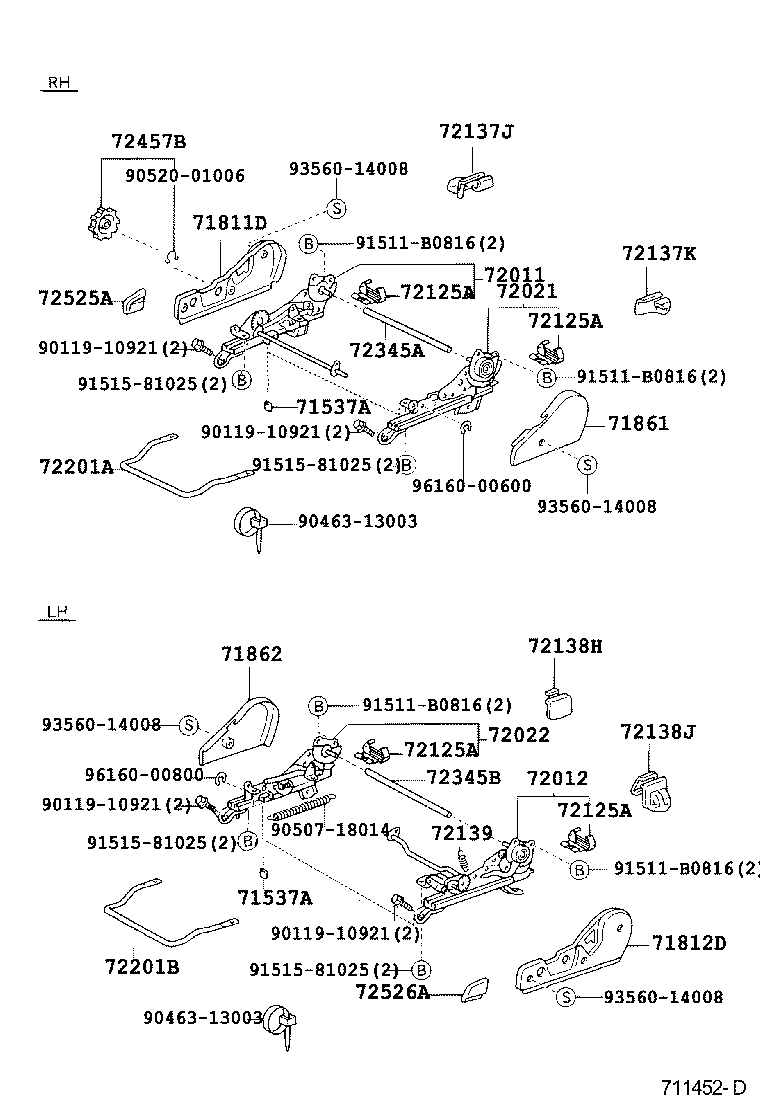

ILLUST NO. 2 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZZT23# |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZZT23# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20310B1 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 71811-20310B0 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20290B0 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| 71812-20290B1 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20140B0 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| 71861-20140B1 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20140B0 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| 71862-20140B1 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20280 |
ZZT23# |
1 | ||
| 72011-20280 |
ZZT23# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20340 |
ZZT23# |
1 | ||
| 72012-20340 |
ZZT23# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20250 |
ZZT23# |
1 | ||
| 72021-20250 |
ZZT23# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20310 |
ZZT23# |
1 | ||
| 72022-20310 |
ZZT23# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ZZT23# |
4 | ||
| 72125-28030 |
ZZT23# |
4 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-20090C0 |
ZZT231 BLACK,TRIM20,21,22,2# |
1 | ||
| 72137-20090C0 |
ZZT231 BLACK,TRIM20,21,22,23 |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-20050C0 |
ZZT231 BLACK,TRIM20,21,22,2# |
1 | ||
| 72157-20050C0 |
ZZT231 BLACK,TRIM20,21,22,23 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-20050C0 |
ZZT231 BLACK,TRIM20,21,22,2# |
1 | ||
| 72158-20050C0 |
ZZT231 BLACK,TRIM20,21,22,23 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-20050C0 |
ZZT231 BLACK,TRIM20,21,22,23 |
1 | ||
| 72138-20050C0 |
ZZT231 BLACK,TRIM20,21,22,2# |
1 | ||
| 72139 - SPRING, SEAT TRACK COVER | ||||
| 72139-20010 |
ZZT23# |
1 | ||
| 72139-20010 |
ZZT23# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20130 |
ZZT23# |
1 | ||
| 72201-20130 |
ZZT23# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-20130 |
ZZT23# |
1 | ||
| 72201-20130 |
ZZT23# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-47010 |
ZZT23# |
1 | ||
| 72345-47010 |
ZZT23# |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-47010 |
ZZT23# |
1 | ||
| 72345-47010 |
ZZT23# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72592-20040B6 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| 72592-20040B8 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P5 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| 72525-16010S1 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010S1 |
ZZT231 DK.GRAY,TRIM20,21,22,23 |
1 | ||
| 72526-16010P5 |
ZZT231 AMETHYST,TRIM20,21,22,2# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90463-13003 | ||||
| 90507-18014 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(0208- )
ﾅｼ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-20560 |
ZZT23# |
1 | ||
| 71610-20560 |
ZZT23# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-20560 |
ZZT23# |
1 | ||
| 71610-20560 |
ZZT23# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2H21021 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H310C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H250C3 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H300C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H210C5 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H210C4 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H310C1 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H210C3 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H250C4 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H25020 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H250C5 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H300C1 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H250C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H25021 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H210C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H21020 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2G540C3 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G600C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G500C3 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G50020 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G500C4 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G54021 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G500C5 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G590C1 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G590C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G50021 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G540C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G500C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G54020 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G540C5 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G540C4 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G600C1 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2H290C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H250C1 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71073-2H25121 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H250C2 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G260C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-2H290C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71073-2H290C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H29120 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H250C0 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H29121 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H25120 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H291C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71073-2H341C3 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G261C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71073-2H340C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-2H251C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2G250C0 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G330C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-2G25121 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G280C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G251C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G340C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-2G250C2 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G250C1 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G280C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G341C3 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G281C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G28121 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G331C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G280C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G25120 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G28120 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20810 |
ZZT23# |
1 | ||
| 71511-20810 |
ZZT23# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-20060 |
ZZT23# |
1 | ||
| 71052-20060 |
ZZT23# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20490 |
ZZT23# |
1 | ||
| 71551-20490 |
ZZT23# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20490 |
ZZT23# |
1 | ||
| 71551-20490 |
ZZT23# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20830 |
ZZT23# |
1 | ||
| 71630-20830 |
ZZT23# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20830 |
ZZT23# |
1 | ||
| 71630-20830 |
ZZT23# |
1 | ||
ILLUST NO. 1 OF 2(0208- )
ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-20560 |
ZZT23# |
1 | ||
| 71610-20560 |
ZZT23# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-20560 |
ZZT23# |
1 | ||
| 71610-20560 |
ZZT23# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2H21021 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H310C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H250C3 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H300C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H210C5 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H210C4 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H310C1 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H210C3 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H250C4 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H25020 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H250C5 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71071-2H300C1 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-2H250C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H25021 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71071-2H210C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71071-2H21020 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2G540C3 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G600C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G500C3 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G50020 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G500C4 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G54021 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G500C5 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G590C1 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G590C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-2G50021 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71072-2G540C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G500C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G54020 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G540C5 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71072-2G540C4 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71072-2G600C1 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2H290C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H250C1 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71073-2H25121 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H250C2 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G260C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-2H290C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71073-2H290C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H29120 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H250C0 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H29121 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71073-2H25120 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71073-2H291C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71073-2H341C3 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G261C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71073-2H340C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-2H251C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2G250C0 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G330C0 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-2G25121 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G280C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G251C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G340C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-2G250C2 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G250C1 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G280C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G341C3 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G281C9 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71074-2G28121 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71074-2G331C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71074-2G280C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G25120 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71074-2G28120 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-20170C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20170C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71040-20160C0 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20171C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71040-2017220 |
ZZT23# ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71040-20171C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71040-2017221 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71040-20171C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20172C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71040-20160C2 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20080C0 |
ZZT231 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71040-20170C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71040-20251C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71040-20160C1 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71040-20252C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71040-20250C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-20060C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-20050C0 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-20060C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20060C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71070-20050C2 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20140C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71070-20050C1 |
ZZT23# ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71070-20141C0 |
ZZT231 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71070-20062C9 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-20142C3 |
ZZT231 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM23 |
1 | ||
| 71070-20130C0 |
ZZT231 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71070-20061C1 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM21 |
1 | ||
| 71070-2006220 |
ZZT23# ｼ-ﾄ = TYPE A-*104,GRAY,TRIM21 |
1 | ||
| 71070-20061C2 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71070-20061C0 |
ZZT23# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM20 |
1 | ||
| 71070-2006221 |
ZZT23# ｼ-ﾄ = TYPE A-*104,BLACK,TRIM22 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20810 |
ZZT23# |
1 | ||
| 71511-20810 |
ZZT23# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-20060 |
ZZT23# |
1 | ||
| 71052-20060 |
ZZT23# |
1 | ||
(9908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
