ZZT231-BLPVF (1999)
Toyota Celica
(9908- )

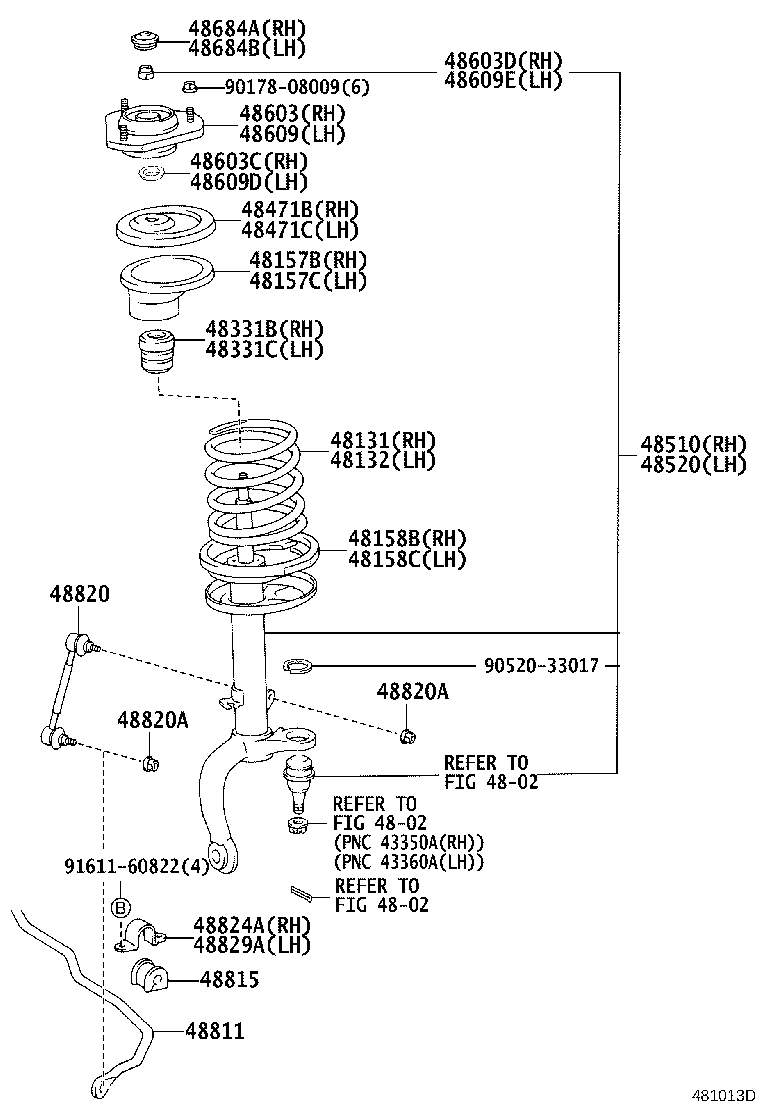

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48131-2T340 |
ZZT231..4FC 長さ=318.5 |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2T340 |
ZZT231..4FC 長さ=318.5 |
1 | ||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-47010 |
ZZT23# |
1 | ||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157-47010 |
ZZT23# |
1 | ||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157-47010 |
ZZT23# |
1 | ||
| 48157-47010 |
ZZT23# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-29755 |
ZZT231 |
1 | ||
| 48510-29735 |
ZZT231 ﾏｰｸ 48510−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510-29735 |
ZZT231 ﾏｰｸ 48510−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510-80326 |
ZZT231 ﾏｰｸ 48510−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510-80072 |
ZZT231 ﾏｰｸ 48510−2B360 |
1 | ||
| 48510-80325 |
ZZT231 ﾏｰｸ 48510−2B361 |
1 | ||
| 48510-29756 |
ZZT231 |
1 | ||
| 48510-80221 |
ZZT231 ﾏｰｸ 48510−2B361 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-29445 |
ZZT231 ﾏｰｸ 48520−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48520-29465 |
ZZT231 |
1 | ||
| 48520-29445 |
ZZT231 ﾏｰｸ 48520−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48520-29466 |
ZZT231 |
1 | ||
| 48520-80047 |
ZZT231 ﾏｰｸ 48520−2B361 |
1 | ||
| 48520-29675 |
ZZT231 |
1 | ||
| 48520-80103 |
ZZT231 ﾏｰｸ 48520−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48520-80102 |
ZZT231 ﾏｰｸ 48520−2B361 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20470 |
ZZT23# |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
ZZT23# |
1 | ||
| 90303-22049 |
ZZT23# |
1 | ||
| 90303-22002 |
ZZT23# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
ZZT23# |
1 | ||
| 94182-11400 |
ZZT23# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20470 |
ZZT23# |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
ZZT23# |
1 | ||
| 90303-22049 |
ZZT23# |
1 | ||
| 90303-22002 |
ZZT23# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
ZZT23# |
1 | ||
| 94182-11400 |
ZZT23# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-52010 |
ZZT23# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-52010 |
ZZT23# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-2B070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48811-2B060 |
ZZT23# |
1 | ||
| 48811-2B060 |
ZZT23# |
1 | ||
| 48811-2B070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20280 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48815-20280 |
ZZT23# |
2 | ||
| 48815-20280 |
ZZT23# |
2 | ||
| 48815-20280 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-20070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48820-32010 |
ZZT23# |
2 | ||
| 48820-20070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48820-32010 |
ZZT23# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
ZZT23# |
4 | ||
| 90179-10183 |
ZZT23# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
ZZT23# |
4 | ||
| 90179-10183 |
ZZT23# |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26210 |
ZZT23# |
1 | ||
| 48824-26210 |
ZZT23# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-26210 |
ZZT23# |
1 | ||
| 48824-26210 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-08009 | ||||
| 91611-60822 | ||||
(9908- )ZZT231
ｽ-ﾊﾟ-ｽﾄﾗﾂﾄﾊﾟﾂｹ-ｼﾞ*(Z)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48131-2T340 |
ZZT231..4FC 長さ=318.5 |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2T340 |
ZZT231..4FC 長さ=318.5 |
1 | ||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48131-2T390 |
ZZT231..4FC |
1 | ||
| 48131-2T280 |
ZZT231..4FC ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-47010 |
ZZT23# |
1 | ||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157-47010 |
ZZT23# |
1 | ||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157-20160 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48157-47010 |
ZZT23# |
1 | ||
| 48157-47010 |
ZZT23# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158-47010 |
ZZT23# |
1 | ||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48158-20100 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20150 |
ZZT23# |
1 | ||
| 48331-20140 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48044-47010 |
ZZT23# |
1 | ||
| 48044-20050 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-29755 |
ZZT231 |
1 | ||
| 48510-29735 |
ZZT231 ﾏｰｸ 48510−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510-29735 |
ZZT231 ﾏｰｸ 48510−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510-80326 |
ZZT231 ﾏｰｸ 48510−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48510-80072 |
ZZT231 ﾏｰｸ 48510−2B360 |
1 | ||
| 48510-80325 |
ZZT231 ﾏｰｸ 48510−2B361 |
1 | ||
| 48510-29756 |
ZZT231 |
1 | ||
| 48510-80221 |
ZZT231 ﾏｰｸ 48510−2B361 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-29445 |
ZZT231 ﾏｰｸ 48520−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48520-29465 |
ZZT231 |
1 | ||
| 48520-29445 |
ZZT231 ﾏｰｸ 48520−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48520-29466 |
ZZT231 |
1 | ||
| 48520-80047 |
ZZT231 ﾏｰｸ 48520−2B361 |
1 | ||
| 48520-29675 |
ZZT231 |
1 | ||
| 48520-80103 |
ZZT231 ﾏｰｸ 48520−2B290,ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48520-80102 |
ZZT231 ﾏｰｸ 48520−2B361 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20470 |
ZZT23# |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
ZZT23# |
1 | ||
| 90303-22049 |
ZZT23# |
1 | ||
| 90303-22002 |
ZZT23# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
ZZT23# |
1 | ||
| 94182-11400 |
ZZT23# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20471 |
ZZT23# |
1 | ||
| 48609-20480 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48609-20470 |
ZZT23# |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
ZZT23# |
1 | ||
| 90303-22049 |
ZZT23# |
1 | ||
| 90303-22002 |
ZZT23# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
ZZT23# |
1 | ||
| 94182-11400 |
ZZT23# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-52010 |
ZZT23# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-12070 |
ZZT23# |
1 | ||
| 48684-52010 |
ZZT23# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-2B070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48811-2B060 |
ZZT23# |
1 | ||
| 48811-2B060 |
ZZT23# |
1 | ||
| 48811-2B070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20280 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48815-20280 |
ZZT23# |
2 | ||
| 48815-20280 |
ZZT23# |
2 | ||
| 48815-20280 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-20070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48820-32010 |
ZZT23# |
2 | ||
| 48820-20070 |
ZZT231 ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ﾊﾟﾂｹ-ｼﾞ *(Z) |
2 | ||
| 48820-32010 |
ZZT23# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
ZZT23# |
4 | ||
| 90179-10183 |
ZZT23# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
ZZT23# |
4 | ||
| 90179-10183 |
ZZT23# |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26210 |
ZZT23# |
1 | ||
| 48824-26210 |
ZZT23# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-26210 |
ZZT23# |
1 | ||
| 48824-26210 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90178-08009 | ||||
| 90520-33017 | ||||
| 91611-60822 | ||||
| Linked diagrams | ||||
| 4802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
