ZZT230-BLPGH (1999)

Toyota Celica

Production Aug 1999 - Apr 2006
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ZZT230..4FC

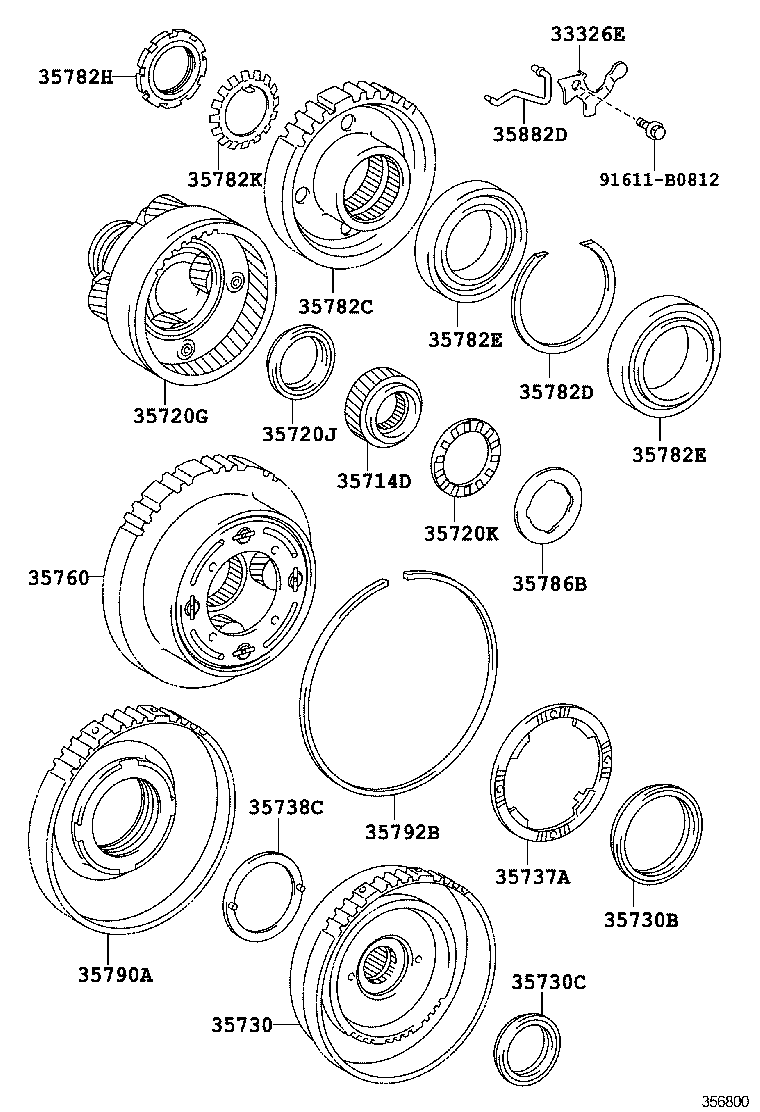

Click highlighted areas on diagram

U341E

diagram 33326E 35714D 35720G 35720J 35720K 35730 35730B 35730C 35737A 35738C 35760 35782C 35782D 35782E 35782E 35782H 35782K 35786B 35790A 35792B 35882D 91611B0812
Part # Description Qty Price
33326E - PLATE, BEARING LOCK
33326-20010

ZZT230..4FC

 1
33326-20010

ZZT230..4FC

 1
35714D - GEAR, FR PLANETARY SUN
35714-52020

ZZT230..4FC

 1
35714-52020

ZZT230..4FC

 1
35720G - GEAR ASSY, PLANETARY
35720-52021

ZZT230..4FC

 1
35720-52020

ZZT230..4FC

 1
35720-52020

ZZT230..4FC

 1
35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
90374-33006

ZZT230..4FC

 1
90374-33006

ZZT230..4FC

 1
35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
90374-33007

ZZT230..4FC

 1
90374-33007

ZZT230..4FC

 1
35730 - GEAR ASSY, REAR PLANETARY SUN
35730-52020

ZZT230..4FC

 1
35730-52020

ZZT230..4FC

 1
35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G
90374-43003

ZZT230..4FC

 1
90374-43003

ZZT230..4FC

 1
35730C - BEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.
90374-29002

ZZT230..4FC

 1
90374-29002

ZZT230..4FC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-52020

ZZT230..4FC

 1
35737-52020

ZZT230..4FC

 1
35738C - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-52010

ZZT230..4FC

 1
35738-52010

ZZT230..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-52010

ZZT230..4FC

 1
35760-52010

ZZT230..4FC

 1
35760-52011

ZZT230..4FC

 1
35782C - GEAR, COUNTER DRIVE
35782-52020

ZZT230..4FC

 1
35782-52020

ZZT230..4FC

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-83001

ZZT230..4FC

 1
90520-83001

ZZT230..4FC

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90366-52007

ZZT230..4FC

 2
90366-52007

ZZT230..4FC

 2
90363-52005

ZZT230..4FC

 2
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90366-52007

ZZT230..4FC

 2
90366-52007

ZZT230..4FC

 2
90363-52005

ZZT230..4FC

 2
35782H - NUT(FOR COUNTER DRIVE GEAR)
90179-40009

ZZT230..4FC

 1
90179-40009

ZZT230..4FC

 1
90179-40008

ZZT230..4FC

 1
35782K - WASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT)
90215-40002

ZZT230..4FC

 1
90215-40001

ZZT230..4FC

 1
90215-40002

ZZT230..4FC

 1
35786B - RACE, THRUST BEARING, NO.2
35787-52010

ZZT230..4FC

 1
35787-52010

ZZT230..4FC

 1
35790A - CLUTCH ASSY, 1 WAY
35790-52020

ZZT230..4FC

 1
35790-52020

ZZT230..4FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90520-99053

ZZT230..4FC

 1
90520-99053

ZZT230..4FC

 1
35882D - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-52020

ZZT230..4FC

 1
35882-52020

ZZT230..4FC

 1
Common parts
91611-B0812
