ZZT230-BLMGH (1999)
Toyota Celica
Production
Aug 1999
-
Apr 2006
Engine
1ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0208)

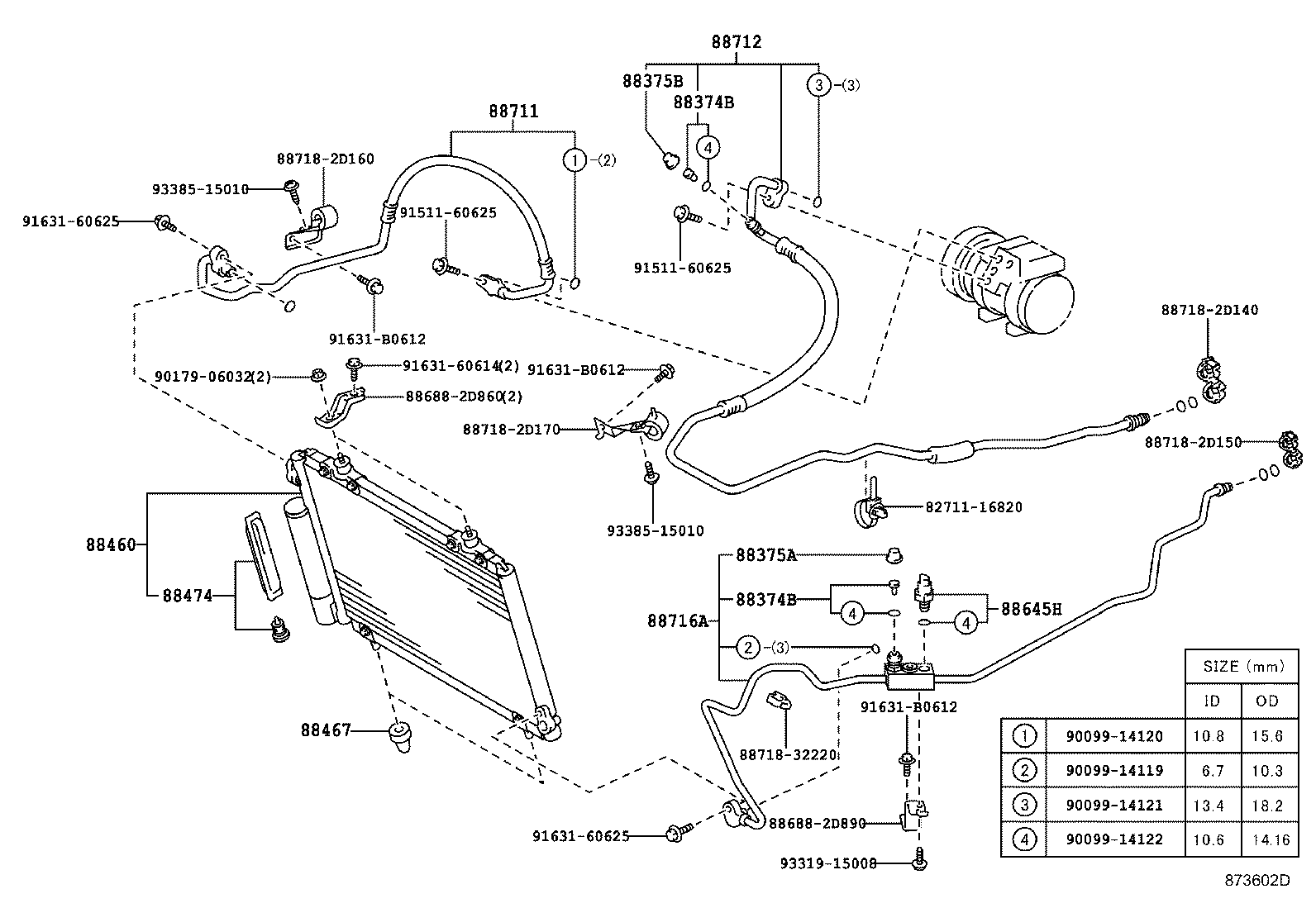

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZT23# |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZT23# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ZZT23# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZT23# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20590 |
ZZT23# |
1 | ||
| 88460-20550 |
ZZT23# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32020 |
ZZT23# |
2 | ||
| 88467-20190 |
ZZT23# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ZZT23# |
1 | ||
| 88474-17010 |
ZZT23# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
ZZT23# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2B380 |
ZZT23# |
1 | ||
| 88703-20240 |
ZZT23# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2D200 |
ZZT23# |
1 | ||
| 88704-20490 |
ZZT23# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D570 |
ZZT23# |
1 | ||
| 88706-20220 |
ZZT23# |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 88688-2D860 | ||||
| 88688-2D890 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2D160 | ||||
| 88718-2D170 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90179-06032 | ||||
| 91511-60625 | ||||
| 91631-60614 | ||||
| 91631-60625 | ||||
| 91631-B0612 | ||||
| 93319-15008 | ||||
| 93385-15010 | ||||
(0208- )

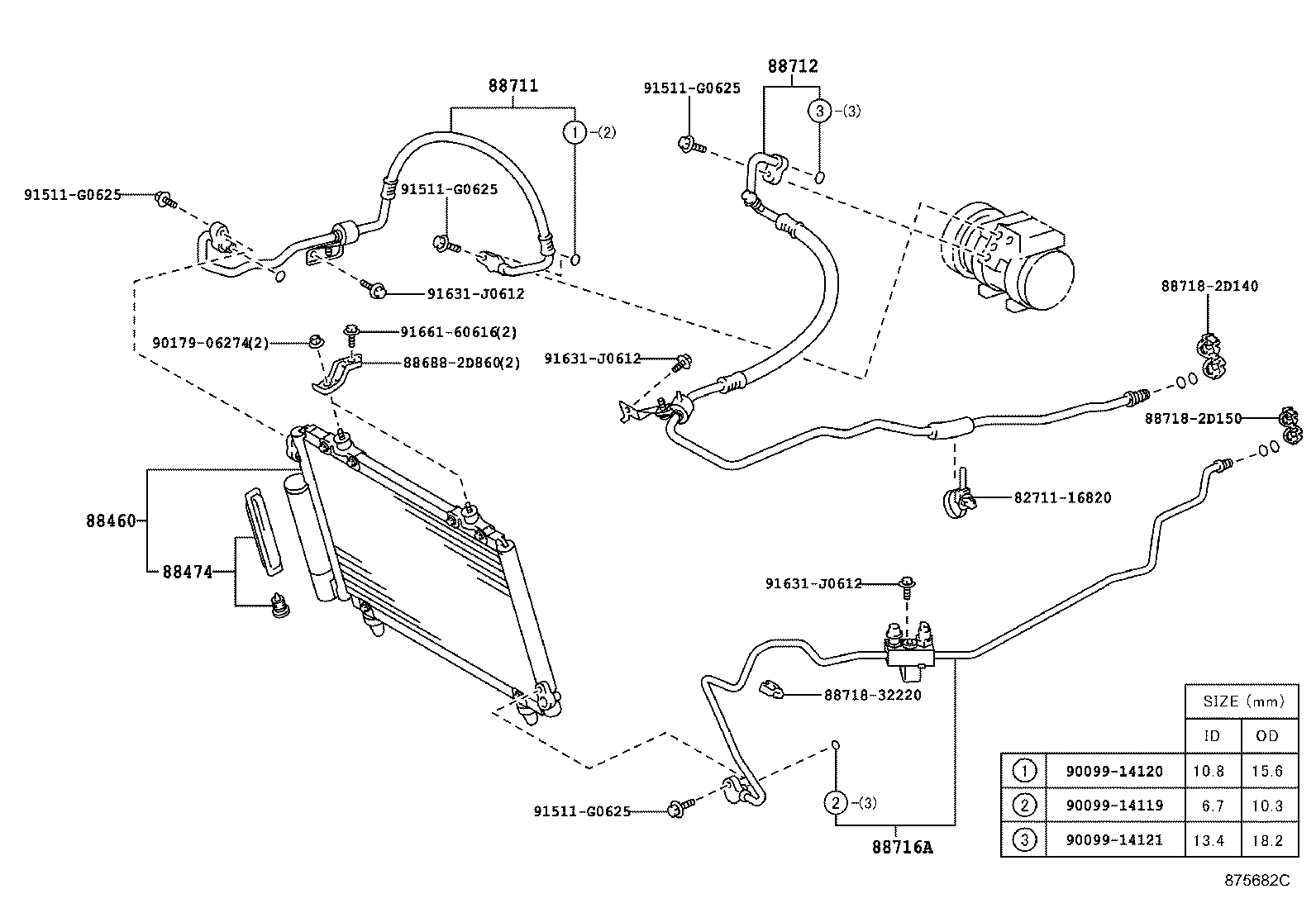

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20590 |
ZZT23# |
1 | ||
| 88460-20550 |
ZZT23# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ZZT23# |
1 | ||
| 88474-17010 |
ZZT23# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2B380 |
ZZT23# |
1 | ||
| 88703-20240 |
ZZT23# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2D200 |
ZZT23# |
1 | ||
| 88704-20490 |
ZZT23# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D570 |
ZZT23# |
1 | ||
| 88706-20220 |
ZZT23# |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 88688-2D860 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06274 | ||||
| 91511-G0625 | ||||
| 91631-J0612 | ||||
| 91661-60616 | ||||
