ZZT230-BLMGH (1999)
Toyota Celica
ILLUST NO. 1 OF 6(9908- )ZZT230
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZZT23# DENSO |
1 | ||
| 83530-60020 |
ZZT23# YAZAKI |
1 | ||
| 83530-28020 |
ZZT23# DENSO |
1 | ||
| 83530-60020 |
ZZT23# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14040 |
ZZT23#..MTM |
1 | ||
| 84210-14040 |
ZZT23#..MTM |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12120 |
ZZT230 |
1 | ||
| 89615-12120 |
ZZT230 |
1 | ||
| Common parts | ||||
| 82715-60010 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||

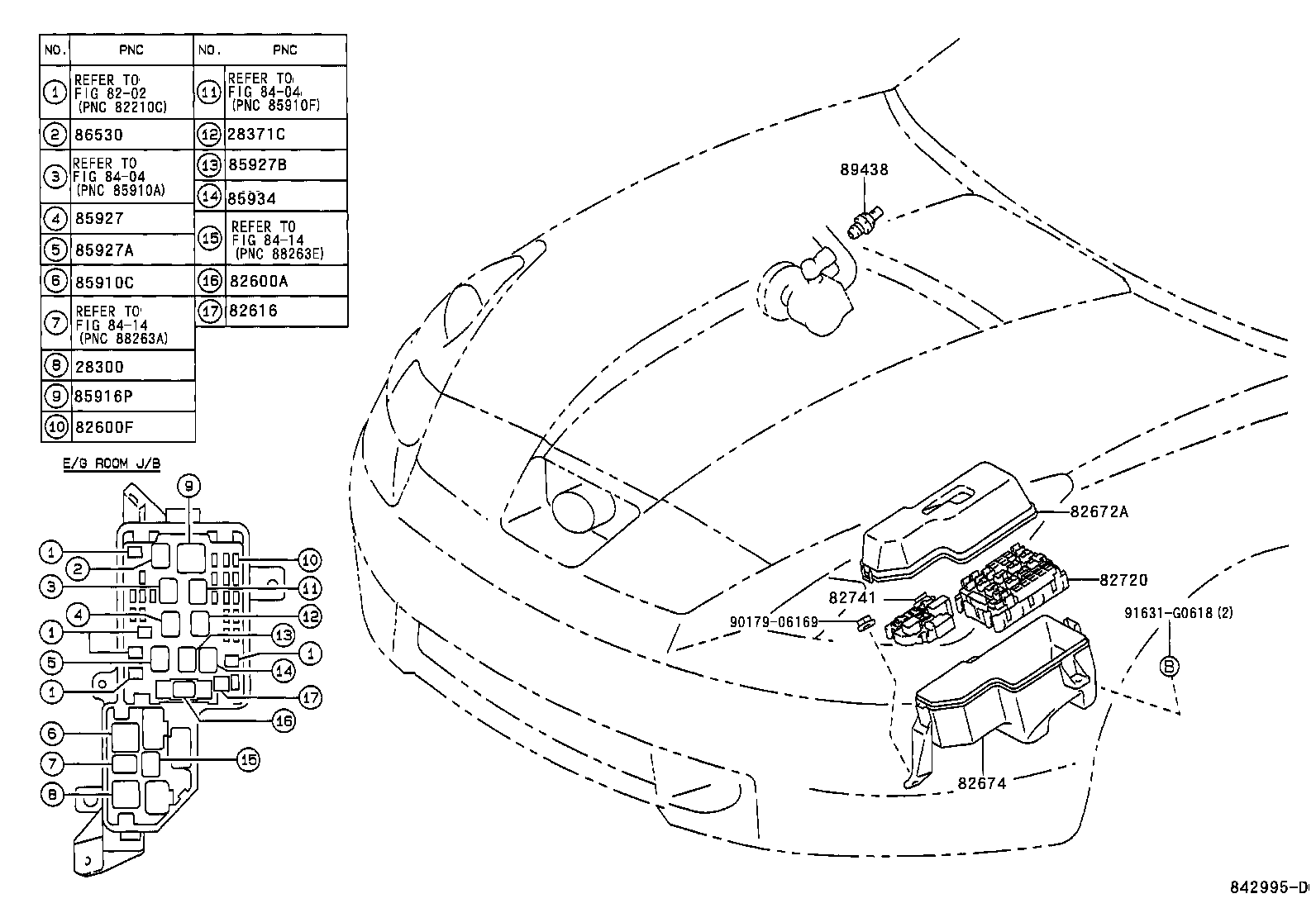

ILLUST NO. 2 OF 6(9908- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 28300-10020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 90987-02012 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 82600A - FUSE, HIGH CURRENT | ||||
| 90982-08293 |
ZZT23# 120A,白 |
1 | ||
| 90982-08293 |
ZZT23# 120A,白 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
ZZT23# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
ZZT23# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09016 |
ZZT23# 7.5A,ﾏﾙﾁ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09014 |
ZZT23# 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
ZZT23# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ZZT23# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
ZZT23# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
ZZT23# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
ZZT23# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
ZZT23# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09012 |
ZZT23# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ZZT23# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09016 |
ZZT23# 7.5A,ﾏﾙﾁ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09014 |
ZZT23# 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ZZT23# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ZZT23# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-32010 |
ZZT23# |
1 | ||
| 82616-32010 |
ZZT23# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-2B201 |
ZZT23# |
1 | ||
| 82672-2B200 |
ZZT23# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20050 |
ZZT23# |
1 | ||
| 82674-20050 |
ZZT23# |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-20101 |
ZZT23# |
1 | ||
| 82720-20100 |
ZZT23# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20041 |
ZZT23# |
1 | ||
| 82741-20040 |
ZZT23# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
ZZT23# |
1 | ||
| 90987-04006 |
ZZT23# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZZT23# |
1 | ||
| 90987-02016 |
ZZT23# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZZT23# |
1 | ||
| 90987-02012 |
ZZT23# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZZT23# |
1 | ||
| 90987-04004 |
ZZT23# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZZT23# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02027 |
1 | ||
| 90987-02012 |
ZZT23# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
ZZT23# |
1 | ||
| 90987-02022 |
ZZT23# |
1 | ||
| 90987-02028 |
ZZT23# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZZT23# |
1 | ||
| 90987-02012 |
ZZT23# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ZZT23# |
1 | ||
| 89438-33010 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90179-06169 | ||||
| 91631-G0618 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

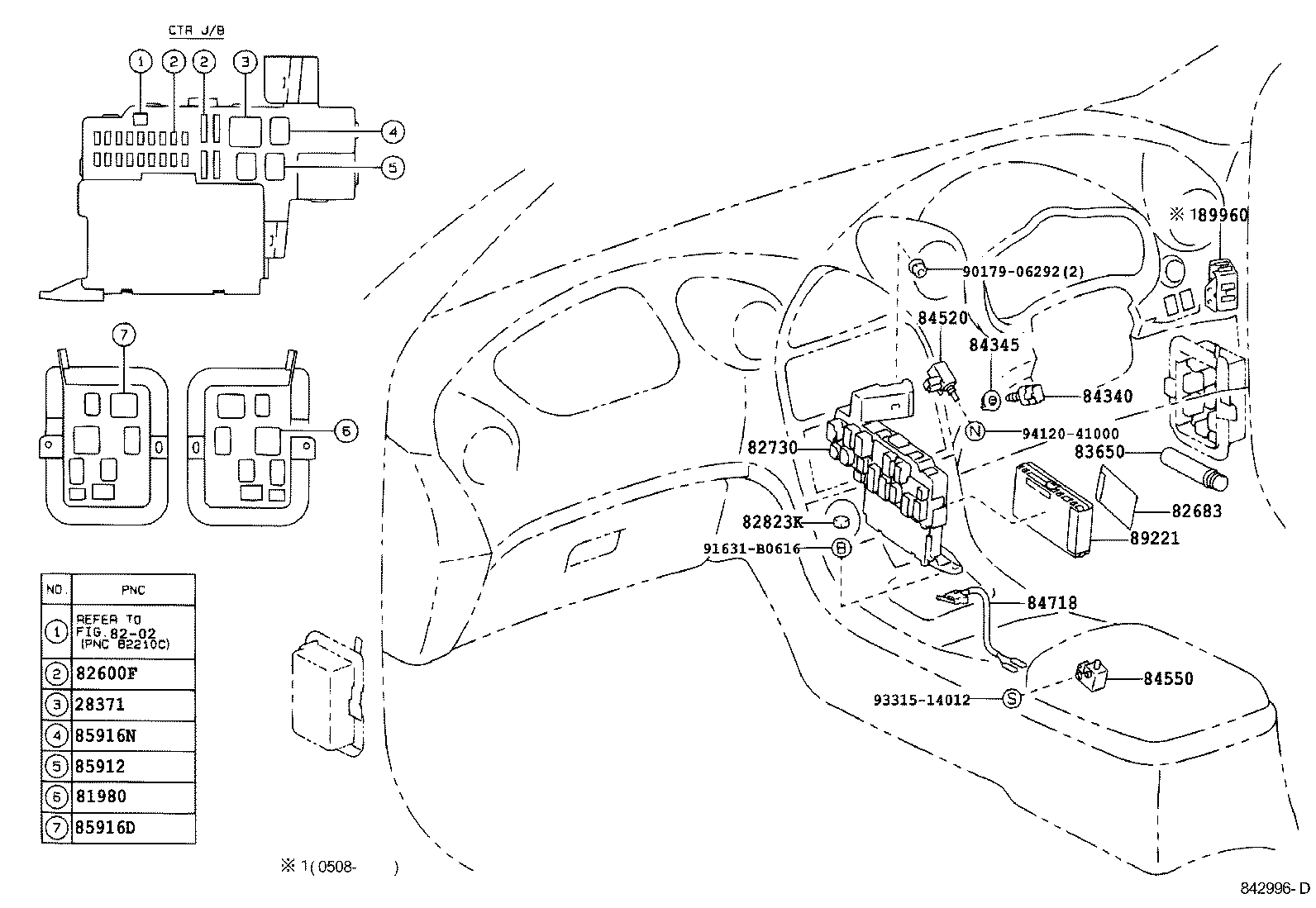

ILLUST NO. 3 OF 6(9908- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02016 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 90987-02025 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ZZT23# |
1 | ||
| 81980-50030 |
ZZT23# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
ZZT23# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
ZZT23# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09016 |
ZZT23# 7.5A,ﾏﾙﾁ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09014 |
ZZT23# 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
ZZT23# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ZZT23# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
ZZT23# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
ZZT23# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
ZZT23# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
ZZT23# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09012 |
ZZT23# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ZZT23# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09016 |
ZZT23# 7.5A,ﾏﾙﾁ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09014 |
ZZT23# 5A,ﾏﾙﾁ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ZZT23# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ZZT23# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-20160 |
ZZT23# |
1 | ||
| 82683-20160 |
ZZT23# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20080 |
ZZT23# |
1 | ||
| 82730-20080 |
ZZT23# |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-20050 |
ZZT23# |
1 | ||
| 82823-20050 |
ZZT23# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ZZT23# |
1 | ||
| 90986-01005 |
ZZT23# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ZZT23# |
1 | ||
| 84340-69035 |
ZZT23# |
1 | ||
| 84340-19015 |
ZZT23# |
1 | ||
| 84340-19015 |
ZZT23# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZZT23# |
1 | ||
| 84345-51010 |
ZZT23# |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-24010 |
ZZT23#..MTM |
1 | ||
| 84520-24010 |
ZZT23#..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ZZT23# |
1 | ||
| 84550-16060 |
ZZT23# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
ZZT23# |
1 | ||
| 90987-02020 |
ZZT23# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02020 |
ZZT23# |
1 | ||
| 90987-02027 |
ZZT23# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
ZZT23# |
1 | ||
| 90987-02020 |
ZZT23# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-20010 |
ZZT23# |
1 | ||
| 89221-20010 |
ZZT23# |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-20010 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90179-06292 | ||||
| 91631-B0616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

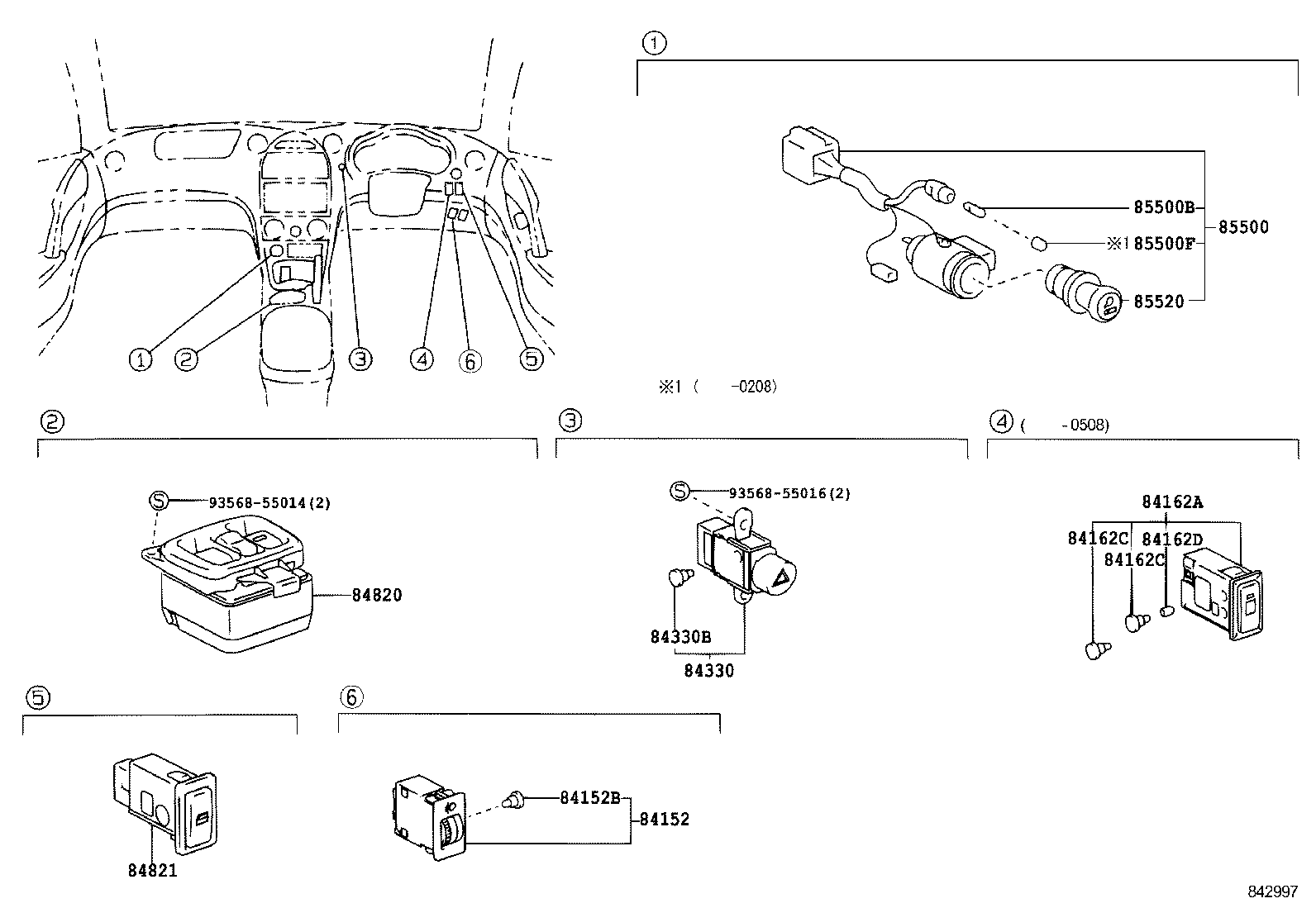

ILLUST NO. 4 OF 6(9908- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-20050 |
ZZT23# |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08106 |
ZZT23# 14V 40MA |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-20100 |
ZZT23# |
1 | ||
| 84165-20070 |
ZZT23# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
ZZT23# 14V 0.7W |
2 | ||
| 84999-10780 |
ZZT23# 14V 0.7W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
ZZT23# 14V 0.7W |
2 | ||
| 84999-10780 |
ZZT23# 14V 0.7W |
2 | ||
| 84162D - CAP, REAR FOG LAMP BULB | ||||
| 84998-10640 |
ZZT23# |
1 | ||
| 84998-10640 |
ZZT23# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20380 |
ZZT23# |
1 | ||
| 84332-20380 |
ZZT23# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
ZZT23# 14V 0.91W |
1 | ||
| 84999-10860 |
ZZT23# 14V 0.91W |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84802-20370 |
ZZT23# |
1 | ||
| 84802-20320 |
ZZT23# |
1 | ||
| 84821 - SWITCH, POWER WINDOW LOCK | ||||
| 84821-20020 |
ZZT23# |
1 | ||
| 84821-20020 |
ZZT23# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20300 |
ZZT23# |
1 | ||
| 85500-20330 |
ZZT23# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ZZT23# 14V 1.4W |
1 | ||
| 90981-11014 |
ZZT23# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
ZZT23# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZZT23# |
1 | ||
| 85520-28010 |
ZZT23# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

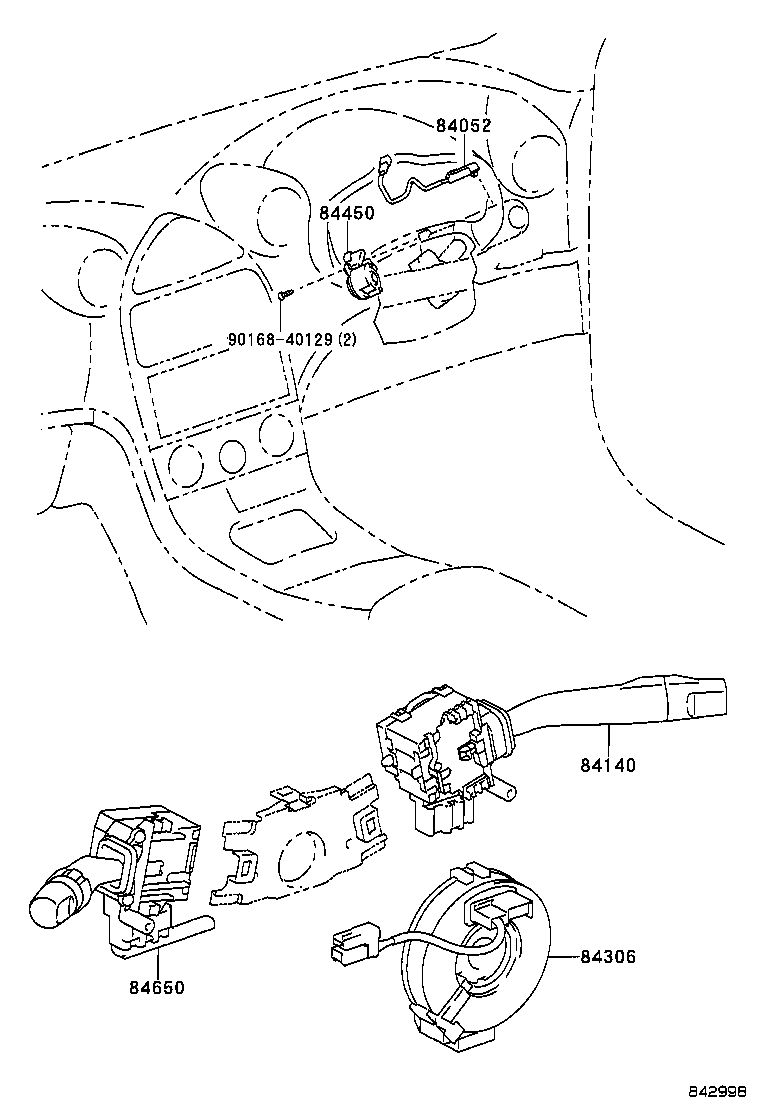

ILLUST NO. 5 OF 6(9908- )
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
ZZT23# |
1 | ||
| 84052-32030 |
ZZT23# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32230 |
ZZT23# ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84140-32230 |
ZZT23# ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84140-32220 |
ZZT23# |
1 | ||
| 84140-32220 |
ZZT23# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52010 |
ZZT230;ZZT231..6F |
1 | ||
| 84306-52010 |
ZZT230;ZZT231..6F |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
ZZT23# |
1 | ||
| 84450-52010 |
ZZT23# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G410 |
ZZT23# |
1 | ||
| 84652-2G410 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||

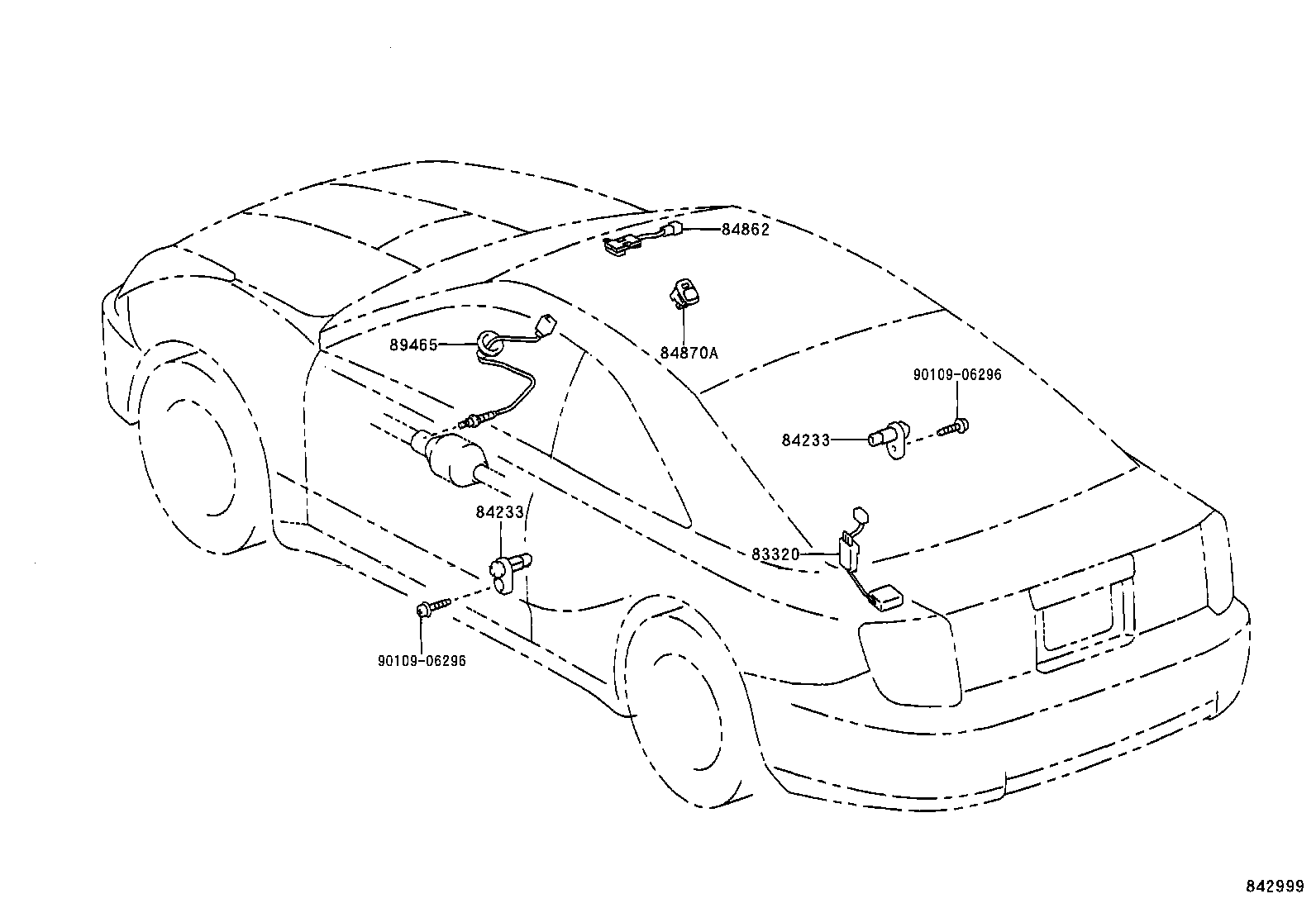

ILLUST NO. 6 OF 6(9908- )
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-20610 |
ZZT23# |
1 | ||
| 83320-20570 |
ZZT23# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZZT23# |
2 | ||
| 84231-60070 |
ZZT23# |
2 | ||
| 84231-46020 |
ZZT23# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZZT23# |
2 | ||
| 84231-60070 |
ZZT23# |
2 | ||
| 84231-46020 |
ZZT23# |
2 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-13010B0 |
ZZT230 LIGHT GRAY,TRIM20,21,22 |
1 | ||
| 84862-13010B3 |
ZZT230 LT.GRAY,TRIM20,21,22 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20220B1 |
ZZT230 DK.GRAY,TRIM20,21,22 |
1 | ||
| 84870-20220B0 |
ZZT230 AMETHYST,TRIM20,21,22 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20670 |
ZZT230 |
1 | ||
| 89465-20670 |
ZZT230 |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
