TA64-BCMXZ (1982)

Toyota Celica

Production Oct 1982 - Aug 1983
Engine 4TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)

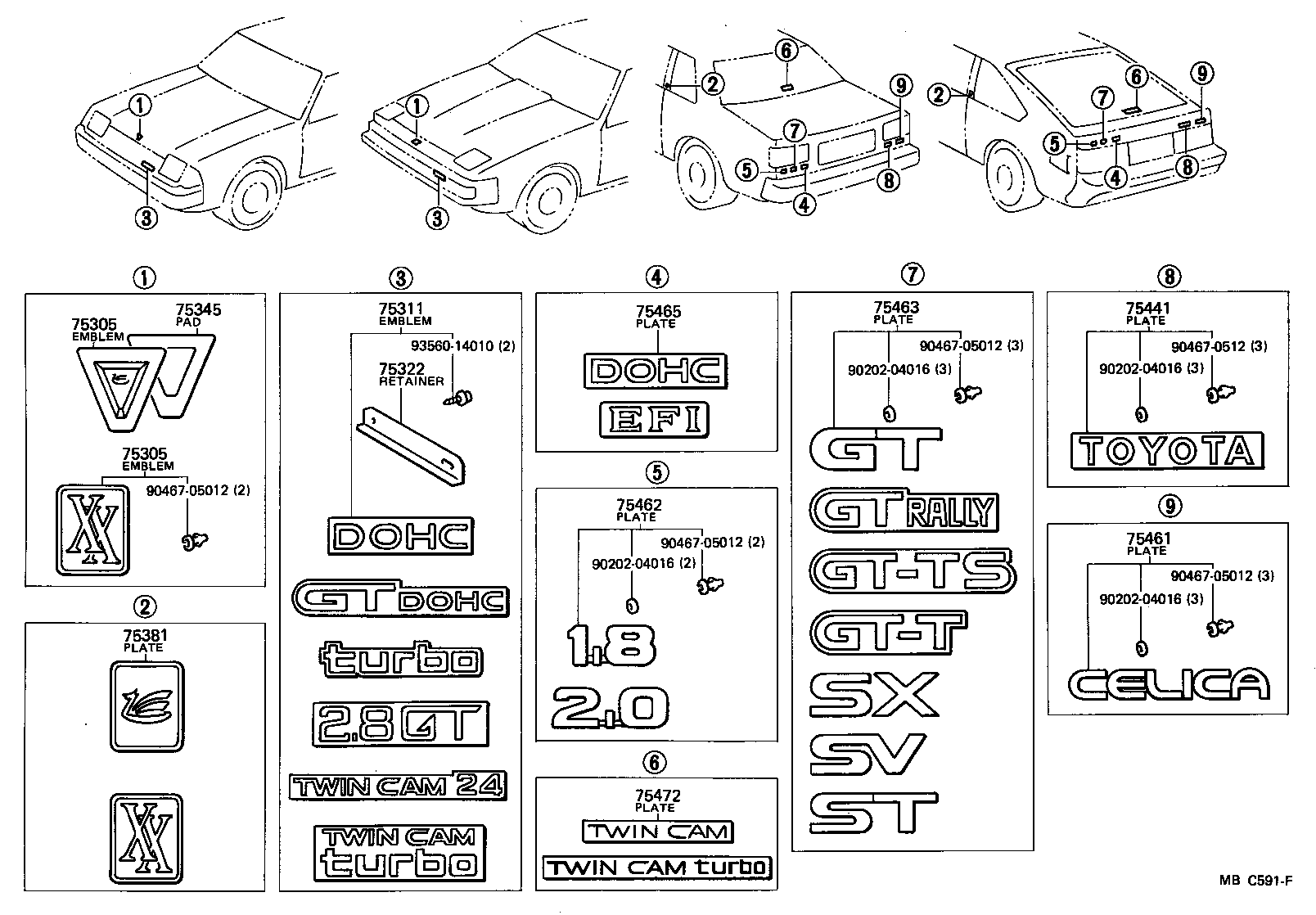

Click highlighted areas on diagram

diagram 75305 75305 75311 75322 75345 75381 75441 75461 75462 75463 75465 75472 9020204016 9020204016 9020204016 9020204016 9046705012 9046705012 9046705012 9046705012 9046705012 9356014010
Part # Description Qty Price
75305 - EMBLEM, HOOD
75303-14020

RA63,SA60,TA6#

 1
75305 - EMBLEM, HOOD
75303-14020

RA63,SA60,TA6#

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75321-19755

TA63,64..GTS,GTT

TWIN CAM TURBO

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14140

TA63,64..GTS,GTT

 1
75345 - PAD, HOOD ORNAMENT, NO.1
75345-14030

RA63,SA60,TA6#

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-14130

AA63,RA63,SA60,TA6#

TYPE A

 2
75441 - PLATE, REAR NAME, NO.1
75443-14200

RA63,SA60,TA6#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-14170

RA63,SA60,TA6#

CELICA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14370

TA64

GT-TS

 1
75472 - PLATE, REAR WINDOW NAME
75485-14040

TA63,64..GTS,GTT

TWIN CAM TURBO

 1
Common parts
90202-04016
90467-05012
93560-14010
