TA63-BLPSE (1981)

Toyota Celica

Production Jul 1981 - Oct 1982
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)4FC ; (8308- )GA61,MA63,SA60,TA63..4FC

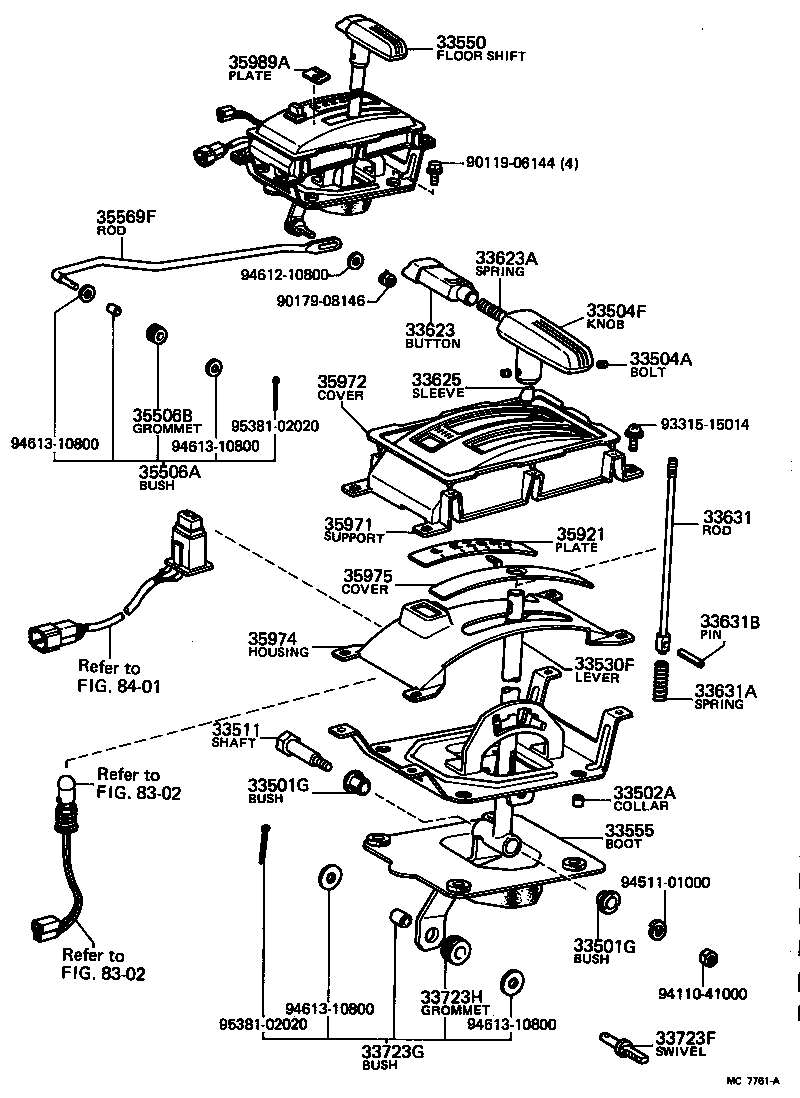

Click highlighted areas on diagram

diagram 33501G 33501G 33502A 33504A 33504F 33511 33530F 33550 33555 33623 33623A 33625 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506B 35569F 35921 35971 35972 35974 35975 35989A 8302 8302 8401 9011906144 9017908146 9331515014 9411041000 9451101000 9461210800 9461310800 9461310800 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-14001

GA61,MA6#,SA60,TA63..4FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-14001

GA61,MA6#,SA60,TA63..4FC

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

GA61,MA6#,SA60,TA63..4FC

外径=8.8

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

GA61,MA6#,SA60,TA63..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-2403001

GA61,MA6#,SA60,TA63..4FC..(G,GT,S,ST,SX)

BLACK,BLACK,TRIM2#

 1
33542-2403004

GA61,MA6#,SA60,TA63..4FC..(G,GT,S,ST,SX)

BLUE,BLUE,TRIM8#

 1
33542-2403006

SA60,TA63..4FC..(ST,SX)

DARK BROWN,BROWN,TRIM4#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-22100

GA61,MA6#,SA60,TA63..4FC

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-14110

GA61,MA6#,SA60,TA63..4FC

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-1424006

SA60,TA63..4FC..(ST,SX)

DARK BROWN,BROWN,TRIM4#

 1
33550-1424004

GA61,MA6#,SA60,TA63..LB..4FC..(G,GT,S,ST,SX)

BLUE,BLUE,TRIM8#

 1
33550-1424001

GA61,MA6#,SA60,TA63..4FC

BLACK,BLACK,TRIM2#

 1
33555 - BOOT, SHIFT LEVER
33555-14030

GA61,MA6#,SA60,TA63..4FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-3004014

GA61,MA6#,SA60,TA63..LB..4FC..(G,GT,S,ST,SX)

BLUE,BLUE,TRIM8#

 1
33623-3004006

SA60,TA63..4FC..(ST,SX)

DARK BROWN,BROWN,TRIM4#

 1
33623-22060

GA61,MA6#,SA60,TA63..4FC

BLACK

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

GA61,MA6#,SA60,TA63..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22020

GA61,MA6#,SA60,TA63..4FC

 1
33631 - ROD, DETENT
33631-20060

GA61,MA6#,SA60,TA63..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08017

GA61,MA6#,SA60,TA63..4FC

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90256-04001

GA61,MA6#,SA60,TA63..4FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

GA61,MA6#,SA60,TA63..4FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

GA61,MA6#,SA60,TA63..4FC

 1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

GA61,MA6#,SA60,TA63..4FC

 1
35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT)
90999-99017

GA61,MA6#,SA60,TA63..4FC

 1
35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT)
90480-17177

GA61,MA6#,SA60,TA63..4FC

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33675-14070

GA61,MA6#,TA63..4FC..(G,GT,GTT,S)

 1
33675-14080

TA63..4FC..(ST,SX)

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-14080

GA61,MA6#,SA60,TA63..4FC

 1
35971 - SUPPORT, POSITION INDICATOR
35971-1408006

SA60,TA63..4FC..(ST,SX)

DARK BROWN,BROWN,TRIM4#

 1
35971-1408004

GA61,MA63,SA60,TA63..LB..4FC..(G,S,ST,SX)

BLUE,BLUE,TRIM8#

 1
35971-1408001

GA61,MA63,SA60,TA63..4FC

BLACK,BLACK,TRIM2#

 1
35972 - COVER, POSITION INDICATOR HOUSING
35972-1401001

GA61,MA6#,SA60,TA63..4FC

BLACK,BLACK,TRIM2#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-14080

GA61,MA6#,SA60,TA63..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-14050

GA61,MA6#,SA60,TA63..4FC

 1
Common parts
90119-06144
90179-08146
93315-15014
94110-41000
94511-01000
94612-10800
94613-10800
95381-02020
Linked diagrams
8302
8401
