TA63-BLMZE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)AA63,RA63,SA60,TA6#

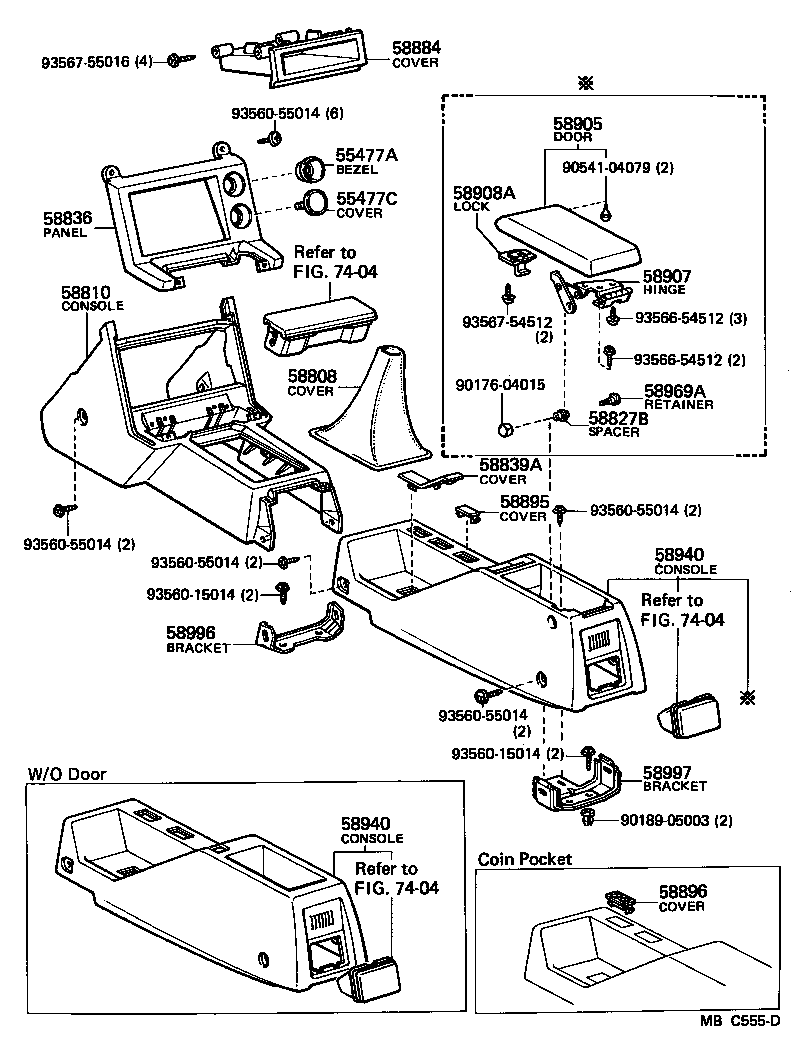

Click highlighted areas on diagram

diagram 55477A 55477C 58808 58810 58827B 58836 58839A 58884 58895 58896 58905 58907 58908A 58940 58940 58969A 58996 58997 7404 7404 7404 9017604015 9018905003 9054104079 9356015014 9356015014 9356055014 9356055014 9356055014 9356055014 9356055014 9356654512 9356654512 9356754512 9356755016
Part # Description Qty Price
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55477C - COVER, COOLER SWITCH HOLE
55477-10010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1410006

TA63..5F..(ST,SX)

DARK BROWN,BROWN,TRIM4#

 1
58808-1410004

TA63..LB..5F..(ST,SX)

BLUE,BLUE,TRIM8#

 1
58808-1410001

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

BLACK,BLACK,TRIM2#

 1
58810 - CONSOLE ASSY
58811-1418004

TA63..LB..(ST,SX)

BLUE,BLUE,TRIM8#

 1
58811-1418001

AA63,GA61,MA6#,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
58811-1418006

TA63..ST,SX

DARK BROWN,BROWN,TRIM4#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
58836 - PANEL, CONSOLE, UPPER FRONT
58821-14070

RA63,SA60,TA6#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-1401006

TA63..ST,SX

DARK BROWN,BROWN,TRIM4#

 1
58839-1401001

AA63,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
58839-1401004

TA63..LB..(ST,SX)

BLUE,BLUE,TRIM8#

 1
58884 - COVER, STEREO OPENING
55521-14050

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
58895 - COVER, SWITCH HOLE, NO.1
55539-2401004

TA63..LB..(ST,SX)

BLUE,BLUE,TRIM8#

 2
55539-2401001

AA63,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 2
55539-2401006

TA63..ST,SX

DARK BROWN,BROWN,TRIM4#

 2
58896 - COVER, SWITCH HOLE, NO.2
55539-1403001

GA61,MA6#,RA63,SA60,TA6#

W/COIN POCKET,BLACK,BLACK,TRIM2#

 1
55539-1403006

TA63..SX

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

 1
55539-1403104

TA63..LB..(ST,SX)

W/COIN POCKET,BLUE,BLUE,TRIM8#

 1
55539-1403106

TA63..ST,SX

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

 1
55539-1403004

TA63..LB..SX

W/COIN POCKET,BLUE,BLUE,TRIM8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1404001

RA63,TA61,63..GT,GTT,SX

BLACK,BLACK,TRIM2#

 1
58905-1404004

TA63..LB..SX

BLUE,BLUE,TRIM8#

 1
58905-1404006

TA63..SX

DARK BROWN,BROWN,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-14010

GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22010

RA63,TA61,63..GT,GTT,SX

 1
58940 - CONSOLE ASSY, REAR
58901-1405001

RA63,TA61,63..GT,GTT,SX

BLACK,BLACK,TRIM2#

 1
58901-1405004

TA63..LB..SX

BLUE,BLUE,TRIM8#

 1
58901-1405006

TA63..SX

DARK BROWN,BROWN,TRIM4#

 1
58940 - CONSOLE ASSY, REAR
58901-1405001

RA63,TA61,63..GT,GTT,SX

BLACK,BLACK,TRIM2#

 1
58901-1405004

TA63..LB..SX

BLUE,BLUE,TRIM8#

 1
58901-1405006

TA63..SX

DARK BROWN,BROWN,TRIM4#

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58902-14030

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-24010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
90176-04015
90189-05003
90541-04079
93560-15014
93560-55014
93566-54512
93567-54512
93567-55016
Linked diagrams
7404
