TA63-BLMZE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

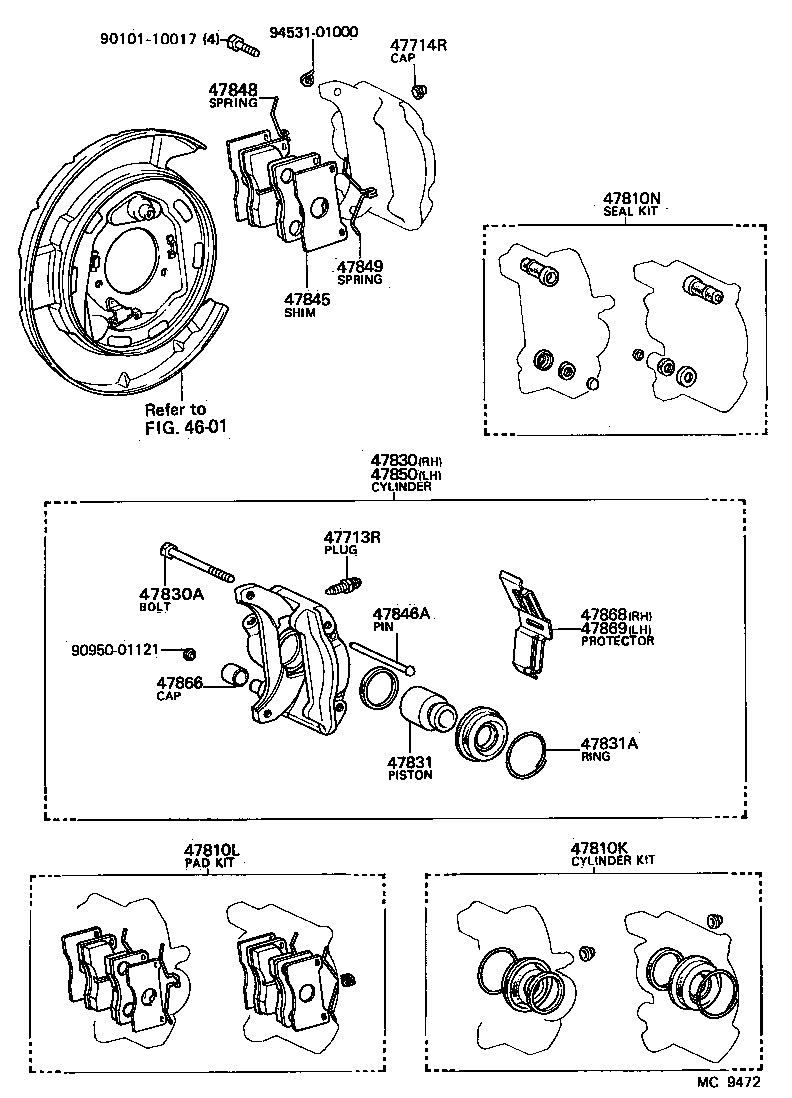

ILLUST NO. 1 OF 2(8107- )AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

Click highlighted areas on diagram

diagram 4601 47713R 47714R 47810K 47810L 47810N 47830 47830A 47831 47831A 47845 47846A 47848 47849 47850 47866 47868 47869 9010110017 9095001121 9453101000
Part # Description Qty Price
47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12040

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 2
47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

AA63,GA61,MA6#,RA63,TA6#..G,GT,GTS,GTT,L,S,SX

 2
47810K - CYLINDER KIT, DISC BRAKE, REAR
04479-30040

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47810L - PAD KIT, DISC BRAKE, REAR
04492-24020

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
04492-30050

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
47810N - SEAL KIT, DISC BRAKE, REAR
04498-30010

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47730-22090

GA61,MA63,TA63..G,GTT,L,S,SX

 1
47830A - BOLT(FOR REAR DISC BRAKE)
90101-10481

GA61,MA63,TA63..G,GTT,L,S,SX

 4
47831 - PISTON, REAR DISC BRAKE
47731-30030

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 2
47831A - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-48044

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 2
47845 - SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)
47744-30070

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 4
47846A - PIN, W/HOLE(FOR REAR DISC BRAKE PAD)
90240-06133

GA61,MA63,TA63..G,GTT,L,S,SX

 4
47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-30030

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 2
47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-30010

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-22090

GA61,MA63,TA63..G,GTT,L,S,SX

 1
47866 - CAP, TORQUE PLATE PIN, REAR
47766-12010

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 2
47868 - PROTECTOR, DISC BRAKE PAD, REAR RH
47767-30020

GA61,MA63,TA63..G,GTT,L,S,SX

 1
47869 - PROTECTOR, DISC BRAKE PAD, REAR LH
47767-30020

GA61,MA63,TA63..G,GTT,L,S,SX

 1
Common parts
90101-10017
90950-01121
94531-01000
Linked diagrams
4601

ILLUST NO. 2 OF 2(8107- )AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX ; (8210- )TA64

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-30070

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
04466-22100

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-30040

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
04946-30030

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-30020

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
04948-30020

GA61,MA6#,RA63,TA6#..G,GT,L,S,SX

 1
