TA63-BLMSE (1981)
Toyota Celica
Production
Jul 1981
-
Oct 1982
Engine
3TEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8107-8308)TA63..ST,SX

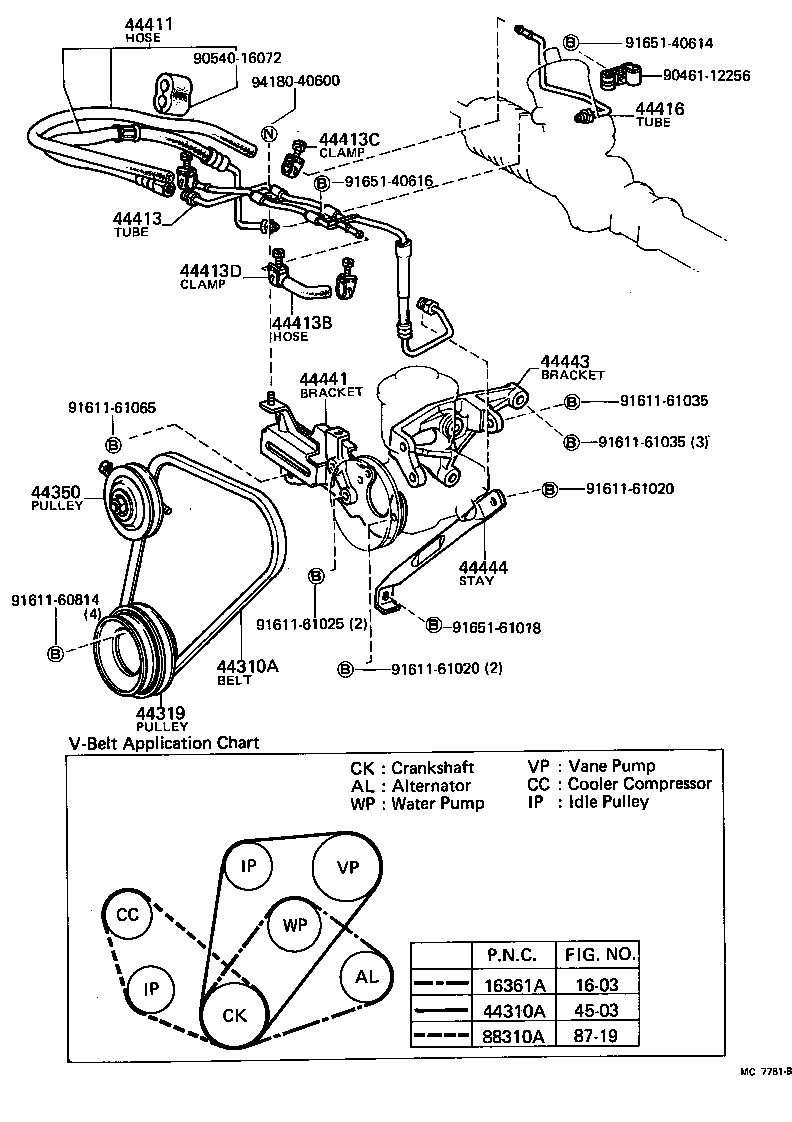

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
3TEU..TA63 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01080 |
TA63..ST,SX |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01080 |
TA63..ST,SX |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 13477-18020 |
TA63 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-12020 |
TA63..ST,SX |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44410-14020 |
TA63..ST,SX |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-14060 |
TA63..ST,SX |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 44412-14020 |
TA63..ST,SX |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
TA63..ST,SX |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
AA63,TA63..GT,ST,SX |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-14090 |
TA63..ST,SX |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-14020 |
TA63..ST,SX |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12010 |
TA63..ST,SX |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-12010 |
TA63..ST,SX |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| Common parts | ||||
| 90461-12256 | ||||
| 90540-16072 | ||||
| 91611-60814 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91611-61065 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-61018 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
