TA63-BLMQZ (1982)
Toyota Celica

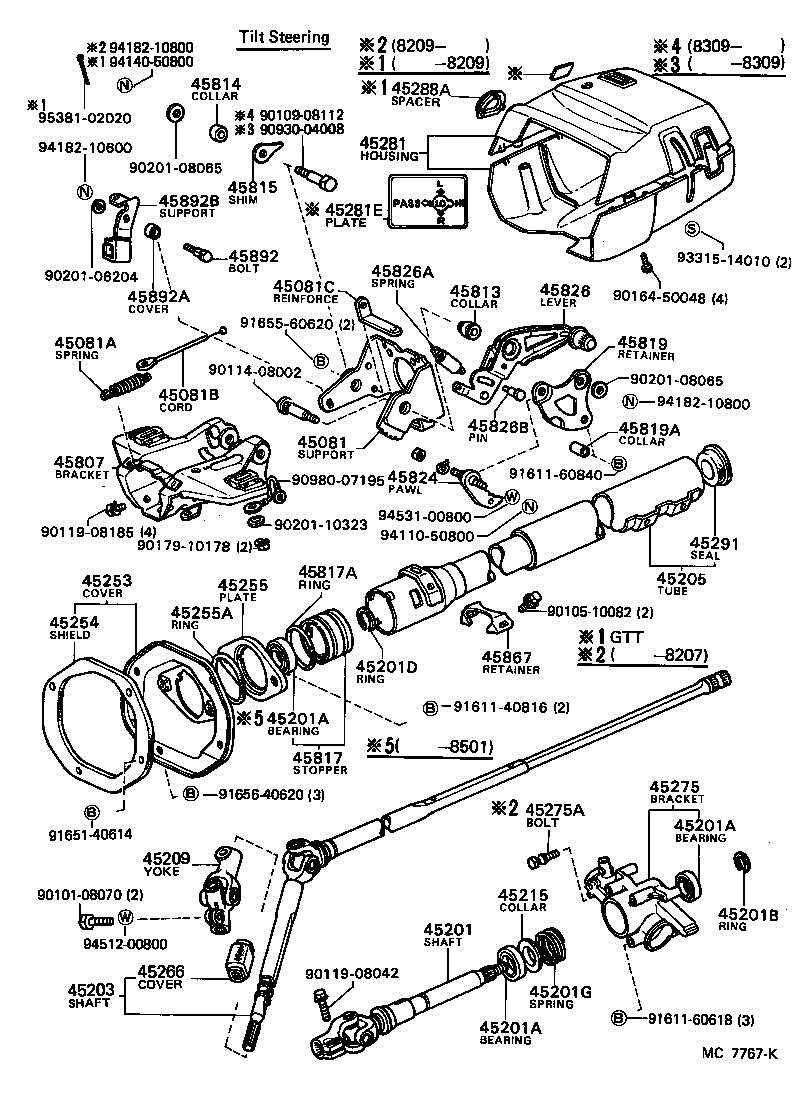

ILLUST NO. 1 OF 3(8107-8507)AA63,RA63,TA61,63..GT,GTT,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 長さ=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX W/TILT STRG,W/TILT&POWER STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA63,GA61,MA6#,RA63,SA60,TA6# LWR |
1 | ||
| 90363-18001 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX UPR,W/TILT STEERING |
1 | ||
| 90363-28001 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX CTR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA63,GA61,MA6#,RA63,SA60,TA6# LWR |
1 | ||
| 90363-18001 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX UPR,W/TILT STEERING |
1 | ||
| 90363-28001 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX CTR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA63,GA61,MA6#,RA63,SA60,TA6# LWR |
1 | ||
| 90363-18001 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX UPR,W/TILT STEERING |
1 | ||
| 90363-28001 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX CTR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AA63,GA61,MA6#,RA63,SA60,TA6# 厚さ=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-14050 |
RA63,TA6#..GT,SX |
1 | ||
| 45220-14170 |
AA63,TA63 |
1 | ||
| 45220-14130 |
AA63,TA63 W/POWER STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14110 |
AA63,RA63,SA60,TA61,63..GT,GTT,SX W/TILT STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AA63,SA60,TA63..GT,GTT,ST,SV |
1 | ||
| 45209-14020 |
AA63,SA60,TA63..GT,GTT,SX W/POWER STEERING |
1 | ||
| 45209-14010 |
RA63,TA6# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14100 |
AA63,RA63,SA60,TA6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
GA61,MA61,RA63,SA60,TA6# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24011 |
GA61,MA63,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-14010 |
GA61,MA63,RA63,TA6#..G,GT,L,S,SX |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492206 |
AA63,RA63,SA60,TA61,63..GT,SX W/TILT STEERING,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1492201 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX W/TILT STEERING,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1492204 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,SX) W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-1401001 |
TA63,64..GTS,GTT BLACK,BLACK,TRIM2# |
1 | ||
| 45288-1401001 |
TA63..GTT BLACK,BLACK,TRIM2# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-14050 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=17.996−18.003,OD=17.996-18.003 |
1 | ||
| 45813-22020 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=18.003−18.010,OD=18.003-18.010 |
1 | ||
| 45813-22040 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=18.017−18.024,OD=18.017-18.024 |
1 | ||
| 45813-22030 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=18.010−18.017,OD=18.010-18.017 |
1 | ||
| 45813-22050 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=17.989−17.996,OD=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=17.982−18.000,OD=17.982-18.000 |
1 | ||
| 45814-22020 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 外径=18.000−18.018,OD=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 厚さ=0.5,T=0.5 |
1 | ||
| 45815-22060 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 厚さ=0.2,T=0.2 |
1 | ||
| 45815-22100 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22090 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22080 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX 厚さ=0.8,T=0.8 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91651-40614 | ||||
| 91655-60620 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||

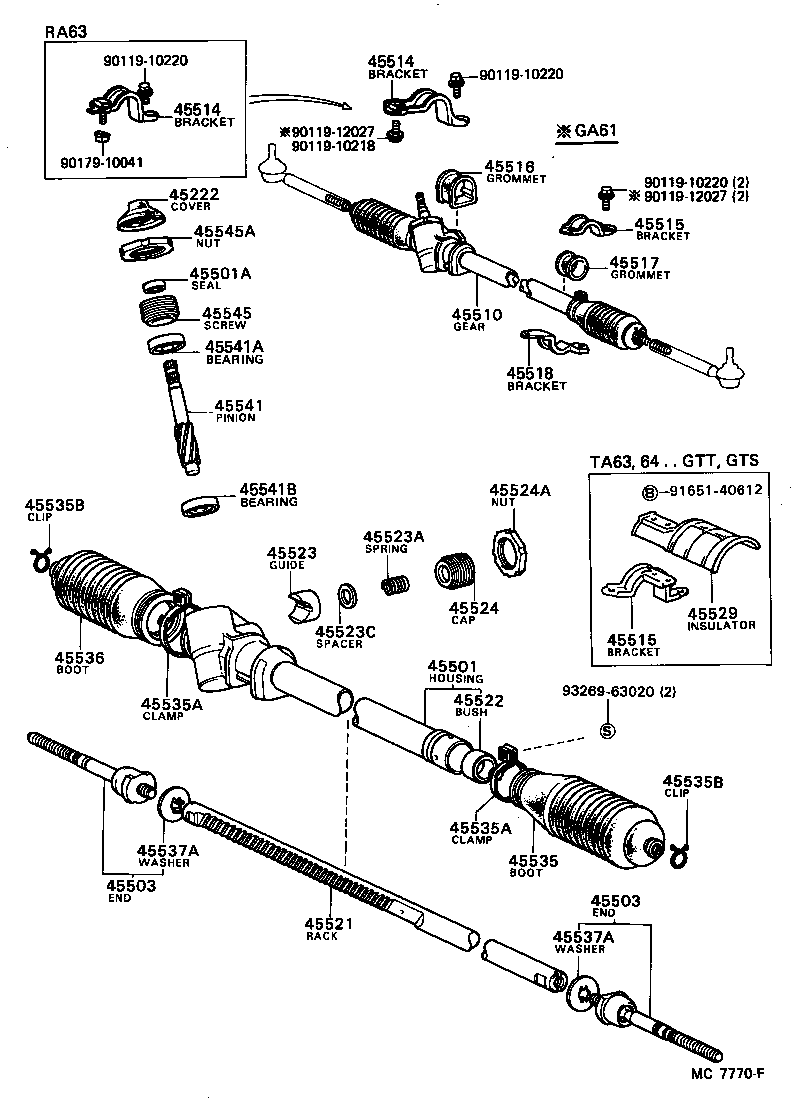

ILLUST NO. 2 OF 3(8107-8507)L ; (8107-8507)AA63,RA63,SA60,TA6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14011 |
TA63;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29016 |
GA61,TA63..GTT,L,SX;AA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
2 | ||
| 45503-29015 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29016 |
GA61,TA63..GTT,L,SX;AA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
2 | ||
| 45503-29015 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14020 |
RA63,TA63,64 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
SA60,TA6# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
SA60,TA6# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 45515-14060 |
TA63..GTT W/POWER STEERING |
1 | ||
| 45515-14050 |
TA63,64..GTS,GTT |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
RA63,SA60,TA61,63..GT,GTR,ST,SV,SX |
1 | ||
| 45515-14060 |
TA63..GTT W/POWER STEERING |
1 | ||
| 45515-14050 |
TA63,64..GTS,GTT |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
AA63,SA60,TA63..GT,GTT,SX W/POWER STEERING |
1 | ||
| 45517-14020 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-14010 |
TA63;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-14021 |
RA63,TA63,64 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-14010 |
TA63,64..GTS,GTT |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22011 |
GA61,TA63..GTT,L,SX;AA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45535-22010 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=41.5 |
1 | ||
| 90461-10524 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=61.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=41.5 |
1 | ||
| 90461-10524 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV ID=61.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-14020 |
TA63;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 90214-14005 |
TA61,63;GA61,SA60,TA64..GTS,L,ST,SV |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA63,TA61;GA61,SA60,TA63,64..GTS,GTT,L,ST,SV,SX |
2 | ||
| 90214-14005 |
TA61,63;GA61,SA60,TA64..GTS,L,ST,SV |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
GA61,TA63..GTT,L,ST,SX;AA63,RA63,SA60,TA61,64..GT,GTR,GTS,ST,SV |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90119-12027 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
