TA63-BCPZE (1981)
Toyota Celica
(8107-8507)CP

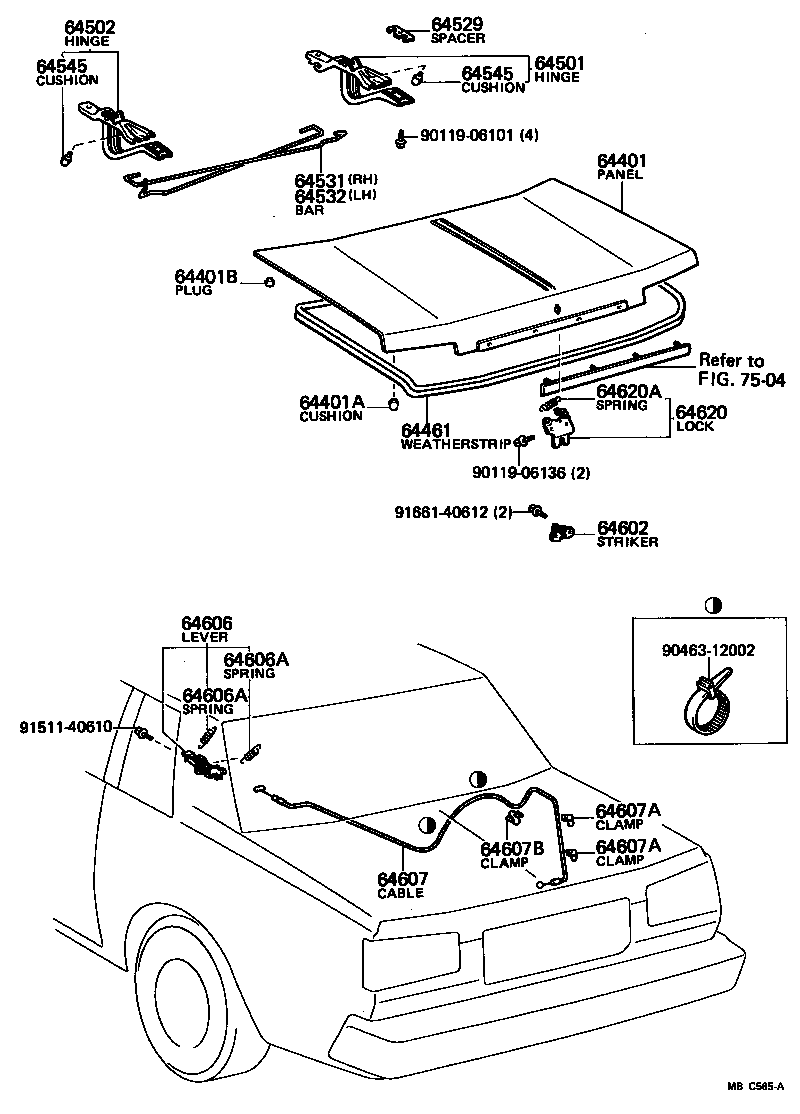

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-14370 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09021 |
AA63,RA63,SA60,TA6#..CP |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
AA63,RA63,SA60,TA6#..CP |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-14200 |
AA63,RA63,SA60,TA6#..CP COLD SPEC |
1 | ||
| 64461-14190 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-14110 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-14100 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-22010 |
AA63,RA63,SA60,TA6#..CP T=1.0 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-14140 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-14140 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AA63,RA63,SA60,TA6#..CP |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AA63,RA63,SA60,TA6#..CP |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-95800 |
AA63,RA63,SA60,TA6#..CP |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-14030 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-14090 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
2 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
2 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90463-05005 |
AA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX) |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-22020 |
RA63,SA60,TA6#..CP..(4FC,5F) W/CANCEL |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-09001 |
AA63,RA63,SA60,TA61,63..CP..(GT,GTR,GTT,ST,SX) W/CANCEL |
1 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 90119-06136 | ||||
| 90463-12002 | ||||
| 91511-40610 | ||||
| 91661-40612 | ||||
| Linked diagrams | ||||
| 7504 | ||||
