TA63-BCPZE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)3TEU

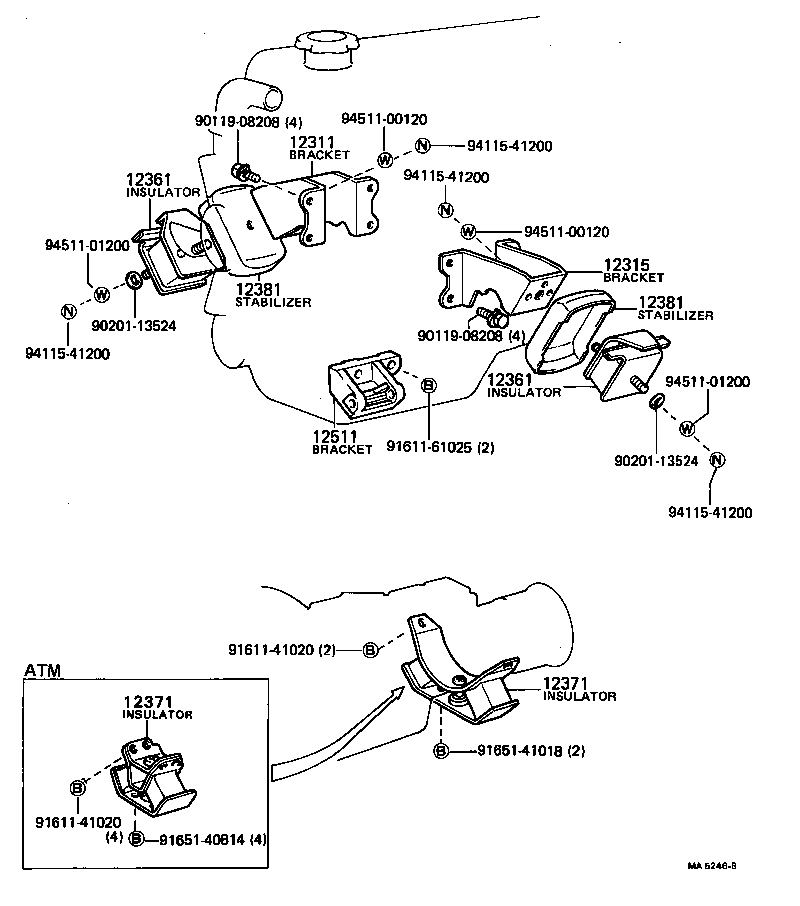

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 9011908208 9011908208 9020113524 9020113524 9161141020 9161141020 9161161025 9165140814 9165141018 9411541200 9411541200 9411541200 9411541200 9451100120 9451100120 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-25051

2TGEU,3T#,4TGTEU..TA6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-25041

2TGEU,3TEU..TA61,63

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-18020

3TEU..TA63

TOYOGOMU

 2
12361-18030

3TEU..TA63

TOYOTA GOSEI

 2
12361-18010

3TEU..TA63

MARUYASU,TOKAIGOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-18020

3TEU..TA63

TOYOGOMU

 2
12361-18030

3TEU..TA63

TOYOTA GOSEI

 2
12361-18010

3TEU..TA63

MARUYASU,TOKAIGOMU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

3TEU..TA63..4FC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

3TEU..TA63..4FC

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-18010

3TEU..TA63

MARUYASU,TOKAIGOMU

 2
12381-18050

3TEU..TA63

TOYOTA GOSEI

 2
12381-18020

3TEU..TA63

TOYOGOMU

 2
12381-18060

3TEU..TA63

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-18010

3TEU..TA63

MARUYASU,TOKAIGOMU

 2
12381-18050

3TEU..TA63

TOYOTA GOSEI

 2
12381-18020

3TEU..TA63

TOYOGOMU

 2
12381-18060

3TEU..TA63

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-25010

2TGEU,3T#,4TGTEU..TA6#

 1
Common parts
90119-08208
90201-13524
91611-41020
91611-61025
91651-40814
91651-41018
94115-41200
94511-00120
94511-01200
