TA63-BCPSE (1981)
Toyota Celica
Production
Jul 1981
-
Oct 1982
Engine
3TEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8107- )4FC

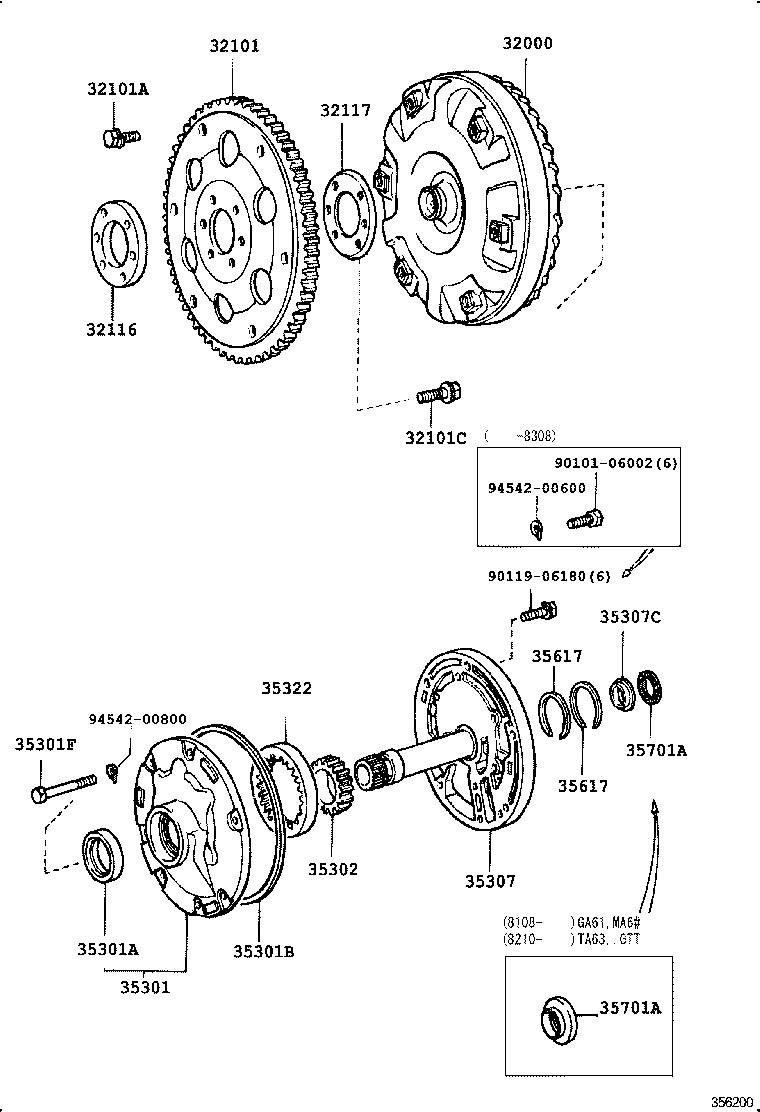

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-14080 |
TA63..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-14030 |
GA61,TA63..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08223 |
GA61,MA6#,SA60,TA63..4FC *8−1.25PX10.5−6.5,YELLOW |
5 | ||
| 90109-08050 |
GA61,MA6#,SA60,TA63..4FC *8−1.25X26−12,WHITE |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10046 |
GA61,TA63..4FC *10−1.25PX23−15.5 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-14011 |
GA61,TA63..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-14011 |
GA61,TA63..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-30030 |
MA63,SA60,TA63..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38129 |
GA61,MA6#,SA60,TA63..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
GA61,MA6#,SA60,TA63..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90101-08431 |
SA60,TA63..4FC..(ST,SX) |
7 | ||
| 90101-08042 |
GA61,MA6#,TA63..4FC..(G,GT,GTT,S) |
7 | ||
| 35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE | ||||
| 35321-22010 |
MA63,SA60,TA63..4FC |
1 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35370-30010 |
SA60,TA63..4FC |
1 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-22010 |
GA61,MA61,SA60,TA63..4FC 厚さ=4.3 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22010 |
MA63,SA60,TA63..4FC 厚さ=15.286−15.235 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-22020 |
GA61,MA61,SA60,TA63..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-22020 |
GA61,MA61,SA60,TA63..4FC |
2 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90374-23012 |
SA60,TA63..4FC..(ST,SX) |
1 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90374-23012 |
SA60,TA63..4FC..(ST,SX) |
1 | ||
| Common parts | ||||
| 90101-06002 | ||||
| 90119-06180 | ||||
| 94542-00600 | ||||
| 94542-00800 | ||||
