TA63-BCPSE (1981)

Toyota Celica

Production Jul 1981 - Oct 1982
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)18RGEU,2TGEU,3T#,4TGTEU

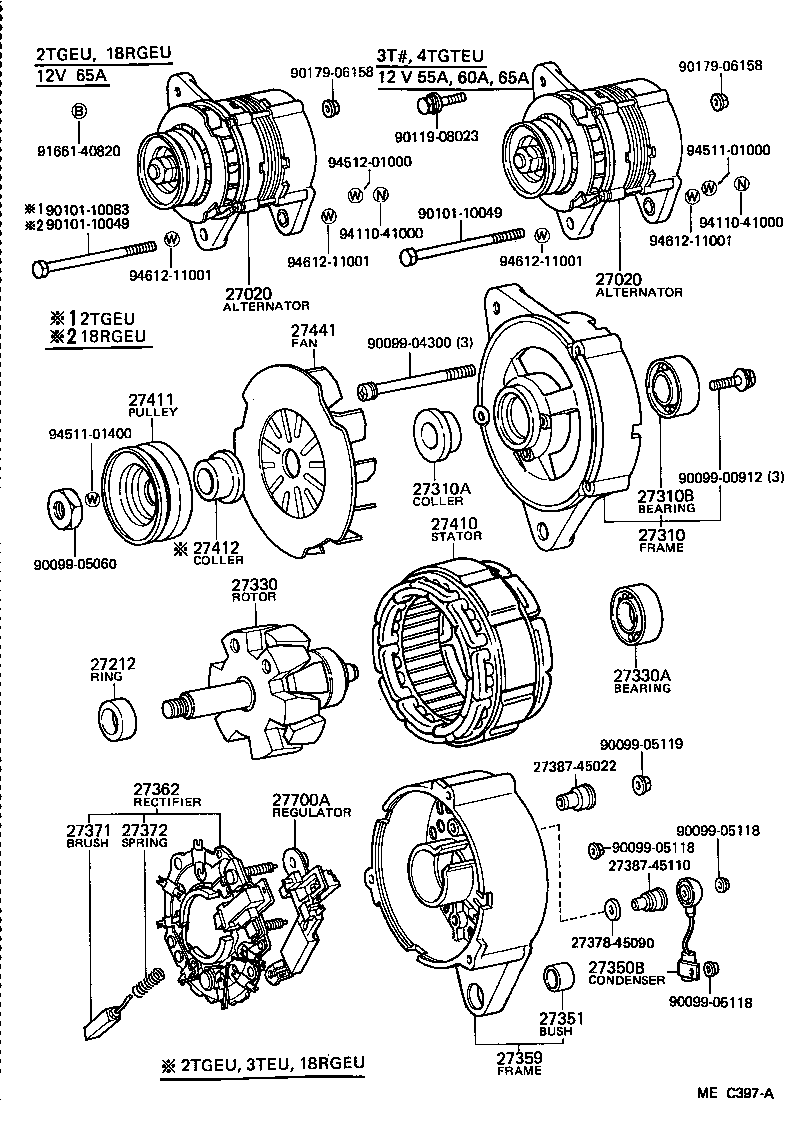

Click highlighted areas on diagram

diagram 27020 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9010110049 9010110083 9011908023 9017906158 9017906158 9166140820 9411041000 9411041000 9451101000 9451101400 9451201000 9461211001 9461211001 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-28050

3TEU..TA63..4FC

12V 60A

 1
27020 - ALTERNATOR ASSY
27060-28050

3TEU..TA63..4FC

12V 60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38061

18RGEU,2TGEU,3T#,4TGTEU..RA63,TA6#

12V 55A,60A,65A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040

3TEU..TA63..4FC

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6#

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

18RGEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-28030

18RGEU,2TGEU,3T#,4TGTEU..RA63,TA6#

12V 55A,60A,65A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-43040

3TEU..TA63..4FC

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-43040

3TEU..TA63..4FC

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

3TEU..TA63

12V 55A,60A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44031

18RGEU,2TGEU,3TEU..RA63,TA61,63

12V 55A,60A

 1
27441 - FAN, ALTERNATOR
27441-34111

3TEU..TA63..4FC

12V 60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-43010

18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6#

12V 55A,60A,65A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90119-08023
90179-06158
91661-40820
94110-41000
94511-01000
94511-01400
94512-01000
94612-11001
