TA63-BCPQZ (1982)
Toyota Celica

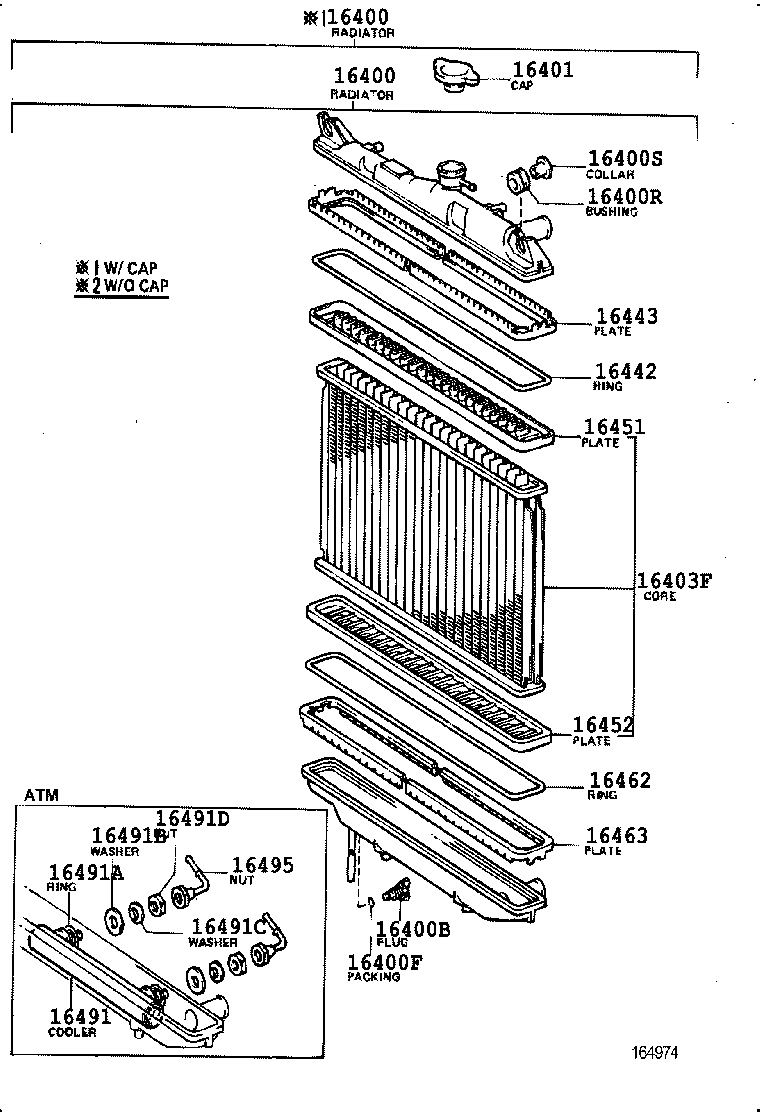

ILLUST NO. 3 OF 3(8107-8507)2TGEU,3T#,4TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-28080 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16400-28081 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16410-28081 |
3TGTEU..TA63..4FC W/O CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28080 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16400-28081 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16410-28081 |
3TGTEU..TA63..4FC W/O CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-35070 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35161 |
3TGTEU..TA63 |
2 | ||
| 16443-35070 |
3T#,4TGTEU..TA63,64 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35160 |
3TGTEU..TA63 |
2 | ||
| 16463-35070 |
3T#,4TGTEU..TA63,64 |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-28081 |
3TGTEU..TA63 |
1 | ||
| 16491-35080 |
3T#..TA63..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
3T#..TA63..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-35080 |
3T#..TA63..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-35080 |
3T#..TA63..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-35080 |
3T#..TA63..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-26340 |
3T#..TA63..4FC |
2 | ||

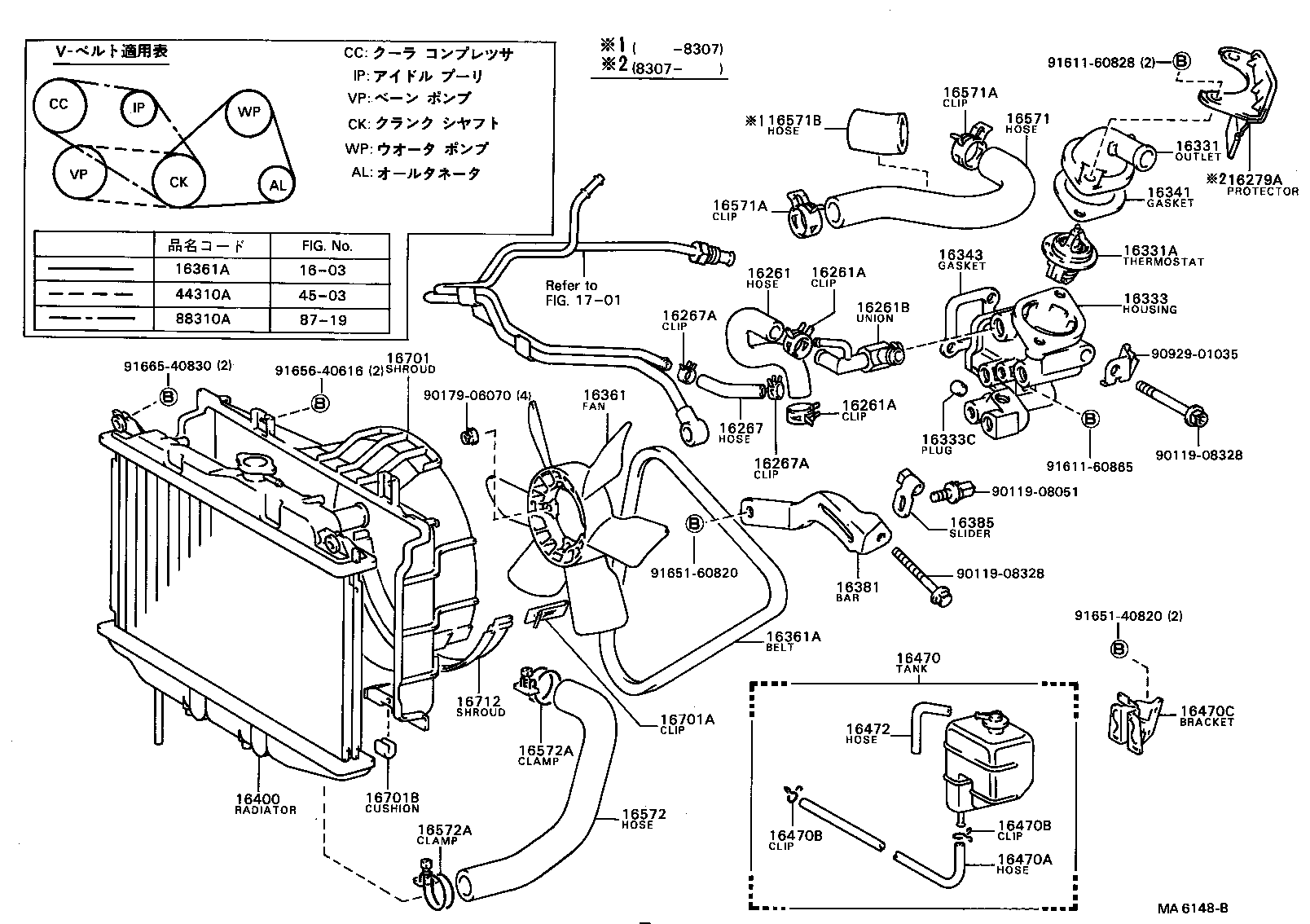

ILLUST NO. 1 OF 3(8210-8308)3TGTEU,4TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
2TGEU,3TGTEU,4TGTEU..TA6# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
2TGEU,3TGTEU,4TGTEU..TA6# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53052 |
3TGTEU..TA63 |
1 | ||
| 90404-53047 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU,4TGTEU..TA63,64 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU,4TGTEU..TA63,64 |
2 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 16279-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
2TGEU,3TGTEU,4TGTEU..TA6# *WAX 88-100,*(F) |
1 | ||
| 90916-03055 |
3TGTEU,4TGTEU..TA63,64 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-88281 |
3TGTEU..TA63..4FC |
1 | ||
| 16333-88285 |
3TGTEU..TA63..4FC |
1 | ||
| 16303-88283 |
3TGTEU..TA63..4FC |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90336-10002 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16361 - FAN | ||||
| 16361-18010 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16361-16010 |
3TGTEU..TA63 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00845 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00845 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70010 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28080 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16400-28081 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16410-28081 |
3TGTEU..TA63..4FC W/O CAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26080 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16470-28040 |
3TGTEU..TA63 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12013 |
2TGEU,3T#,4TGTEU..TA6# *H,L=700 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-26010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-28010 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16571B - HOSE, SLIT(FOR RADIATOR HOSE) | ||||
| 90449-44001 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16571-28040 |
3TGTEU..TA63 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2TGEU,3T#,4TGTEU..TA6# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2TGEU,3T#,4TGTEU..TA6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2TGEU,3T#,4TGTEU..TA6# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2TGEU,3T#,4TGTEU..TA6# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28090 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16711-28091 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2TGEU,3T#,4TGTEU..TA6# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
2TGEU,3T#,4TGTEU..TA6# W/COOLER |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-00840 |
TA63..GTT 長さ=840 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 99322-00980 |
TA63,64..GTS,GTT |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90119-08328 | ||||
| 90179-06070 | ||||
| 90929-01035 | ||||
| 91611-60828 | ||||
| 91611-60865 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 4503 | ||||
| 8719 | ||||

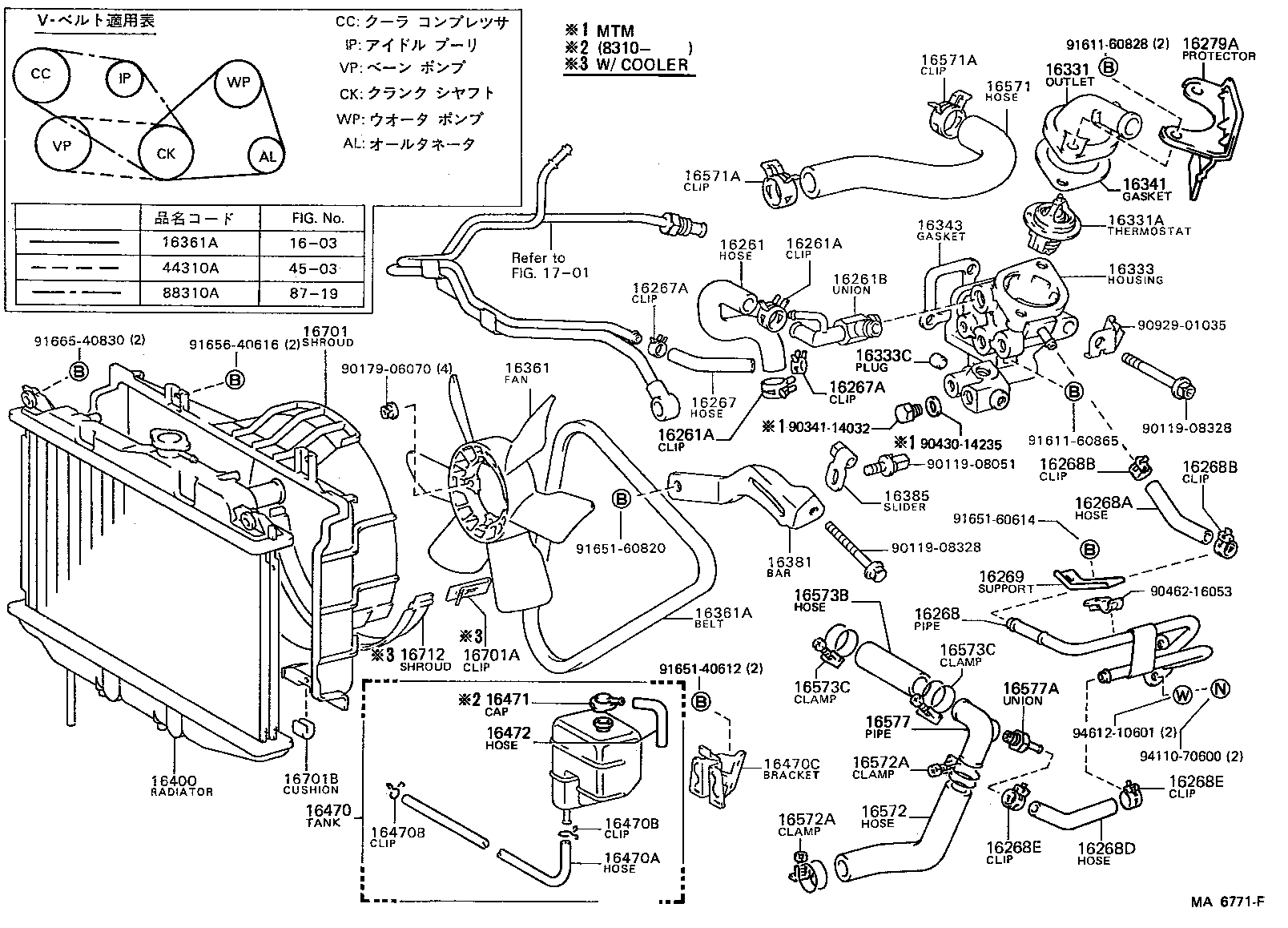

ILLUST NO. 1 OF 3(8308-8507)3TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
2TGEU,3TGTEU,4TGTEU..TA6# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
2TGEU,3TGTEU,4TGTEU..TA6# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53052 |
3TGTEU..TA63 |
1 | ||
| 90404-53047 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU,4TGTEU..TA63,64 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU,4TGTEU..TA63,64 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88280 |
3TGTEU..TA63 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16282-88280 |
3TGTEU..TA63 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TA63 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TA63 |
2 | ||
| 16268D - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16283-88280 |
3TGTEU..TA63 |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TA63 |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TA63 |
2 | ||
| 16269 - SUPPORT, WATER BY-PASS PIPE | ||||
| 16269-88280 |
3TGTEU..TA63 |
1 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 16279-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
2TGEU,3TGTEU,4TGTEU..TA6# *WAX 88-100,*(F) |
1 | ||
| 90916-03055 |
3TGTEU,4TGTEU..TA63,64 *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-88281 |
3TGTEU..TA63..4FC |
1 | ||
| 16333-88285 |
3TGTEU..TA63..4FC |
1 | ||
| 16303-88283 |
3TGTEU..TA63..4FC |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90336-10002 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16361 - FAN | ||||
| 16361-18010 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16361-16010 |
3TGTEU..TA63 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00845 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00845 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88280 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70010 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28080 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16400-28081 |
3TGTEU..TA63..4FC W/CAP |
1 | ||
| 16410-28081 |
3TGTEU..TA63..4FC W/O CAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26080 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16470-28040 |
3TGTEU..TA63 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12013 |
2TGEU,3T#,4TGTEU..TA6# *H,L=700 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-26010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-28010 |
3TGTEU..TA63 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-28010 |
3TGTEU,4TGTEU..TA63,64 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 16571-28040 |
3TGTEU..TA63 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2TGEU,3T#,4TGTEU..TA6# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2TGEU,3T#,4TGTEU..TA6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2TGEU,3T#,4TGTEU..TA6# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2TGEU,3T#,4TGTEU..TA6# WATER PUMP SIDE |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 90445-48001 |
3TGTEU..TA63 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10490 |
3TGTEU..TA63 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10490 |
3TGTEU..TA63 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 90413-52004 |
3TGTEU..TA63 |
1 | ||
| 16577A - UNION(FOR RADIATOR PIPE) | ||||
| 90404-52004 |
3TGTEU..TA63 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28090 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16711-28091 |
3T#,4TGTEU..TA63,64 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2TGEU,3T#,4TGTEU..TA6# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
2TGEU,3T#,4TGTEU..TA6# W/COOLER |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-00840 |
TA63..GTT 長さ=840 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 99322-00980 |
TA63,64..GTS,GTT |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90119-08328 | ||||
| 90179-06070 | ||||
| 90341-14032 | ||||
| 90430-14235 | ||||
| 90462-16053 | ||||
| 90929-01035 | ||||
| 91611-60828 | ||||
| 91611-60865 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| 94110-70600 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 4503 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
