TA63-BCMZE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)AA63,RA63,TA61,63..GT,GTR,ST,SX

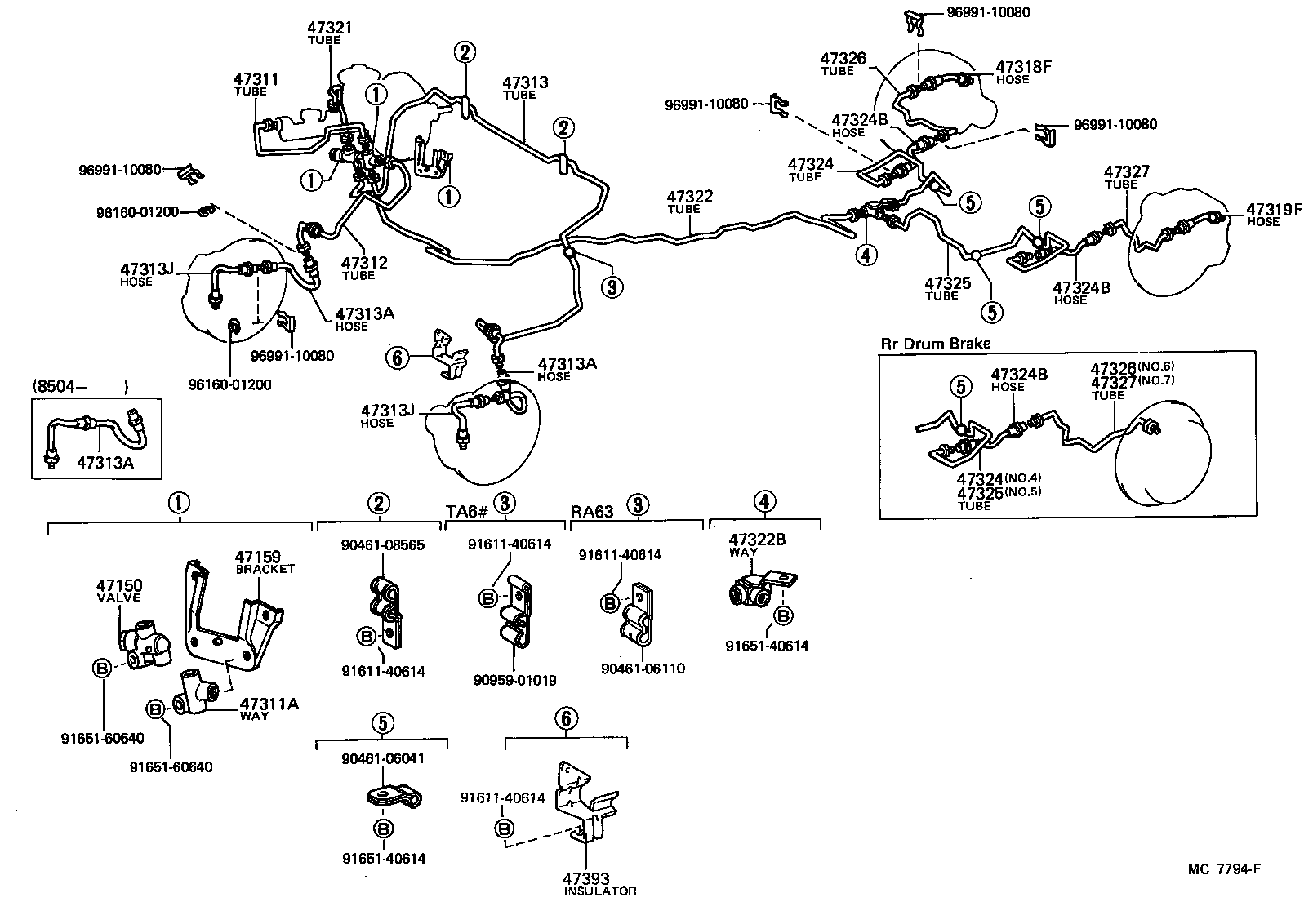

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47318F 47319F 47321 47322 47322B 47324 47324 47324B 47324B 47324B 47325 47325 47326 47326 47327 47327 47393 9046106041 9046106110 9046108565 9095901019 9161140614 9161140614 9161140614 9161140614 9165140614 9165140614 9165160640 9165160640 9616001200 9616001200 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14030

AA63,RA63,TA6#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

AA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AA63,RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14110

RA63,SA60,TA6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA63,SA60,TA6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA63,SA60,TA6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA63,SA60,TA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA63,SA60,TA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA63,SA60,TA6#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96940-32105

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96940-32105

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

RA63,SA60,TA6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14100

RA63,TA6#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10109

AA63,GA61,MA6#,RA63,TA61,63

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-14030

AA63,GA61,MA6#,RA63,TA61,63

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-14030

AA63,GA61,MA6#,RA63,TA61,63

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,GA61,MA6#,RA63,TA61,63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,GA61,MA6#,RA63,TA61,63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,GA61,MA6#,RA63,TA61,63

 2
47325 - TUBE, REAR BRAKE, NO.5
47326-14030

AA63,GA61,MA6#,RA63,TA61,63

 1
47325 - TUBE, REAR BRAKE, NO.5
47326-14030

AA63,GA61,MA6#,RA63,TA61,63

 1
47326 - TUBE, REAR BRAKE, NO.6
47327-22020

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47326 - TUBE, REAR BRAKE, NO.6
47327-22020

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47327 - TUBE, REAR BRAKE, NO.7
47328-22020

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
47327 - TUBE, REAR BRAKE, NO.7
47328-22020

AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX

 1
Common parts
90461-06041
90461-06110
90461-08565
90959-01019
91611-40614
91651-40614
91651-60640
96160-01200
96991-10080
