TA63-BCMZE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

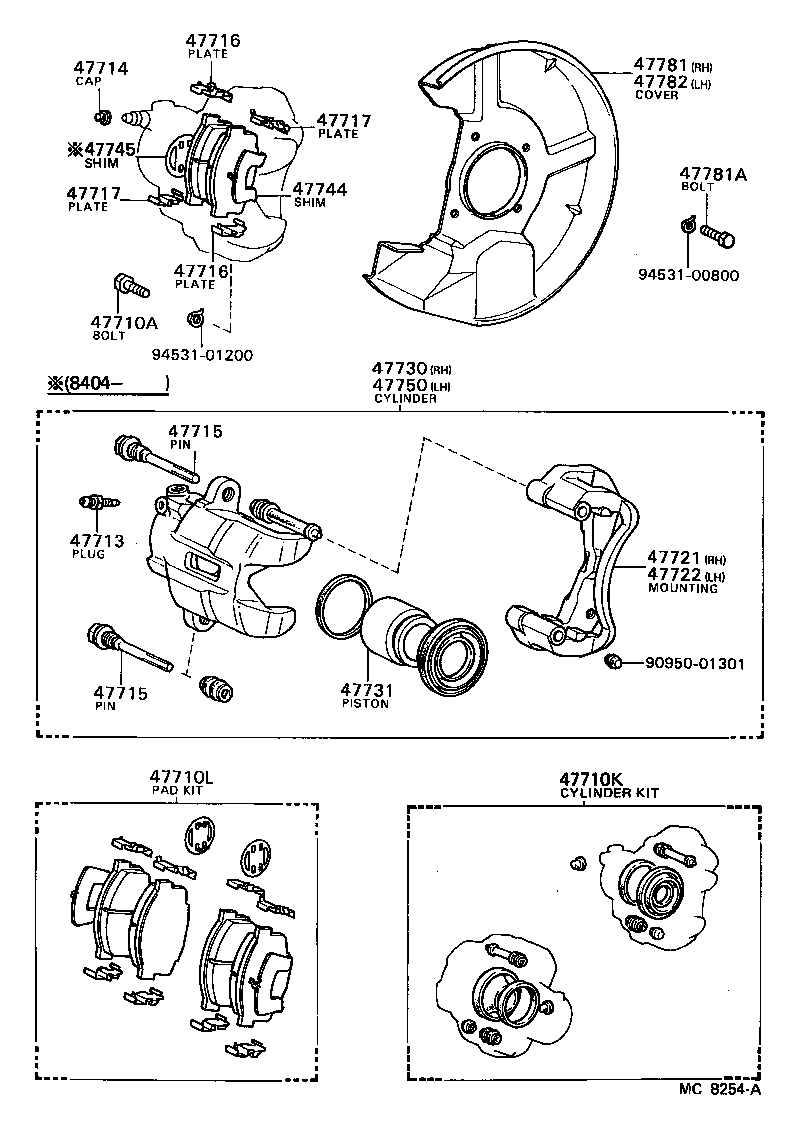

ILLUST NO. 1 OF 2(8107- )AA63,GA61,MA6#,RA63,TA6#

Click highlighted areas on diagram

diagram 47710A 47710K 47710L 47713 47714 47715 47715 47716 47716 47717 47717 47721 47722 47730 47731 47744 47745 47750 47781 47781A 47782 9095001301 9453100800 9453101200
Part # Description Qty Price
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12066

AA63,RA63,TA6#

*12−1.25PX32.5−20.5

 4
47710K - CYLINDER KIT, DISC BRAKE, FRONT
04479-22010

AA63,GA61,MA6#,RA63,TA6#

 1
47710L - PAD KIT, DISC BRAKE, FRONT
04491-24010

GA61,MA63,RA63,TA6#

 1
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12040

AA63,GA61,MA6#,RA63,TA6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715-22010

AA63,GA61,MA6#,RA63,TA6#

 4
47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715-22010

AA63,GA61,MA6#,RA63,TA6#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-22010

AA63,GA61,MA6#,RA63,TA6#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-22010

AA63,GA61,MA6#,RA63,TA6#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-22010

AA63,GA61,MA6#,RA63,TA6#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-22010

AA63,GA61,MA6#,RA63,TA6#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-24010

GA61..G,L,S;AA63,MA63,RA63,TA6#

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-24010

GA61..G,L,S;AA63,MA63,RA63,TA6#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-24010

GA61..G,L,S;AA63,MA63,RA63,TA6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30050

AA63,GA61,MA6#,RA63,TA6#

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-22040

AA63,GA61,MA6#,RA63,TA6#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-24010

GA61..G,L,S;AA63,MA63,RA63,TA6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-14070

AA63,RA63,TA6#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-08341

AA63,GA61,MA6#,RA63,TA6#

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-14060

AA63,RA63,TA6#

 1
Common parts
90950-01301
94531-00800
94531-01200

ILLUST NO. 2 OF 2(8107- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-22140

GA61,MA63,RA63,TA6#

ﾏｰｸ ADVICS PS534

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-22020

GA61,MA63,RA63,TA6#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-22050

GA61,MA63,RA63,TA6#

 1
