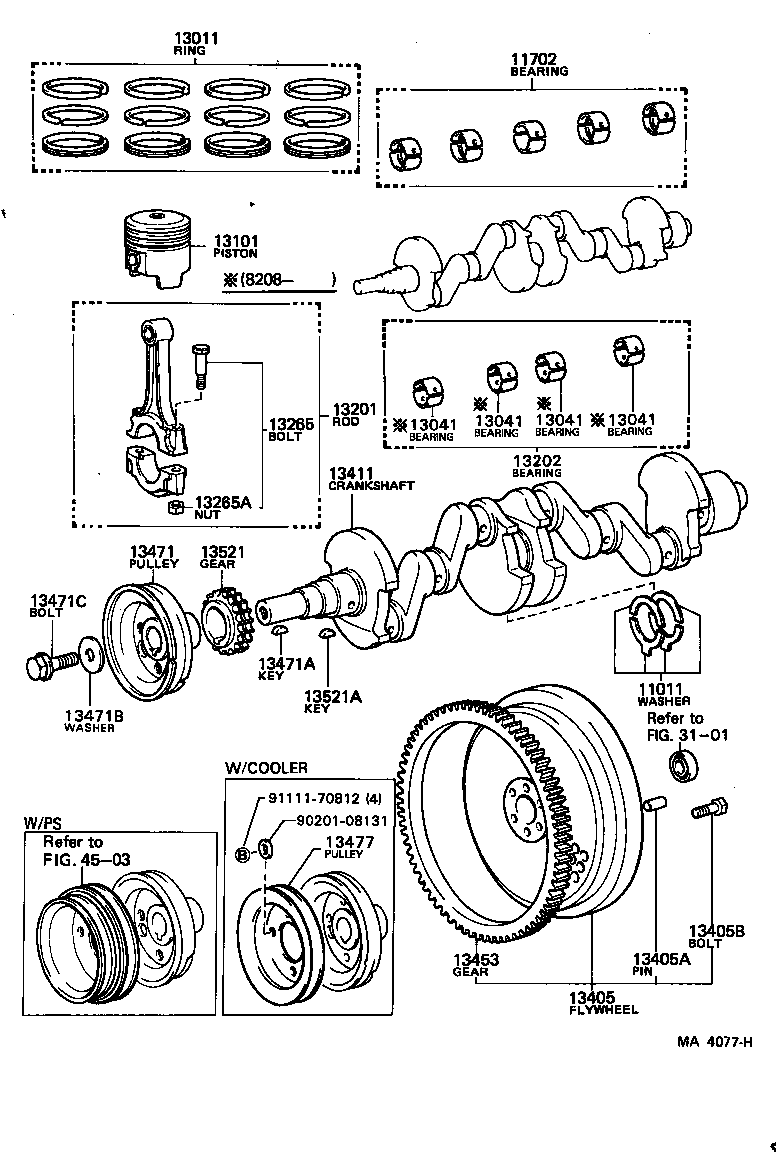

TA63-BCMZE (1981)
Toyota Celica
(8107-8308)3TEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2TGEU,3T#,4TGTEU..TA6# STD,STD |
1 | ||
| 11013-25010 |
2TGEU,3TEU..TA61,63 O/S 0.250 |
1 | ||
| 11012-25010 |
2TGEU,3TEU..TA61,63 O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-25013 |
3TEU..TA63 STD |
1 | ||
| 11703-25013 |
3TEU..TA63 U/S 0.05 |
1 | ||
| 11704-25013 |
3TEU..TA63 U/S 0.25 |
1 | ||
| 11705-25013 |
3TEU..TA63 U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-28030 |
3TEU..TA63 O/S 1.00 |
1 | ||
| 13013-28030 |
3TEU..TA63 O/S 0.50 |
1 | ||
| 13011-28031 |
3TEU..TA63 STD |
1 | ||
| 13011-28030 |
3TEU..TA63 STD |
1 | ||
| 13013-28031 |
3TEU..TA63 O/S 0.50 |
1 | ||
| 13014-28031 |
3TEU..TA63 O/S 0.75 |
1 | ||
| 13015-28031 |
3TEU..TA63 O/S 1.00 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801104 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801007 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801006 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041-1801107 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801103 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801105 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801004 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801005 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801106 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801104 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801007 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801006 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041-1801107 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801103 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801105 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801004 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801005 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801106 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801104 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801007 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801006 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041-1801107 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801103 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801105 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801004 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801005 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801106 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801104 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801007 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801006 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13041-1801107 |
3TEU..TA63 MARK"7",MARK 7 |
4 | ||
| 13041-1801103 |
3TEU..TA63 MARK"3",MARK 3 |
4 | ||
| 13041-1801105 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801004 |
3TEU..TA63 MARK"4",MARK 4 |
4 | ||
| 13041-1801005 |
3TEU..TA63 MARK"5",MARK 5 |
4 | ||
| 13041-1801106 |
3TEU..TA63 MARK"6",MARK 6 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-28020 |
3TEU..TA63 STD |
4 | ||
| 13103-28020 |
3TEU..TA63 O/S 0.50 |
4 | ||
| 13105-28020 |
3TEU..TA63 O/S 1.00 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-25010 |
2TGEU,3TEU..TA6# |
4 | ||
| 13201-71011 |
3TEU..TA63 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-25010 |
3TEU..TA63 U/S 0.05 |
1 | ||
| 13202-25010 |
3TEU..TA63 STD |
1 | ||
| 13205-18010 |
3TEU..TA63 U/S 0.50 |
1 | ||
| 13204-18010 |
3TEU..TA63 U/S 0.25 |
1 | ||
| 13204-18011 |
3TEU..TA63 U/S 0.25 |
1 | ||
| 13204-25010 |
3TEU..TA63 U/S 0.25 |
1 | ||
| 13205-25010 |
3TEU..TA63 U/S 0.50 |
1 | ||
| 13205-18011 |
3TEU..TA63 U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2TGEU,3T#,4TGTEU..TA6# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2TGEU,3T#,4TGTEU..TA6# |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-29115 |
3TEU..TA63..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2TGEU,3T#,4TGTEU..TA6#..5F 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
2TGEU,3TEU..TA61,63..5F *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-28010 |
3TEU..TA63 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2TGEU,3T#,4TGTEU..TA6#..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-18010 |
3TEU..TA63 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
2TGEU,3T#,4TGTEU..TA6# *12-1.25PX24-18 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88358-12020 |
3TEU..TA63 W/COOLER |
1 | ||
| 13477-18011 |
3TEU..TA63 W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| Common parts | ||||
| 90201-08131 | ||||
| 91111-70812 | ||||
| Linked diagrams | ||||
| 3101 | ||||
| 4503 | ||||
