TA63-BCMZE (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

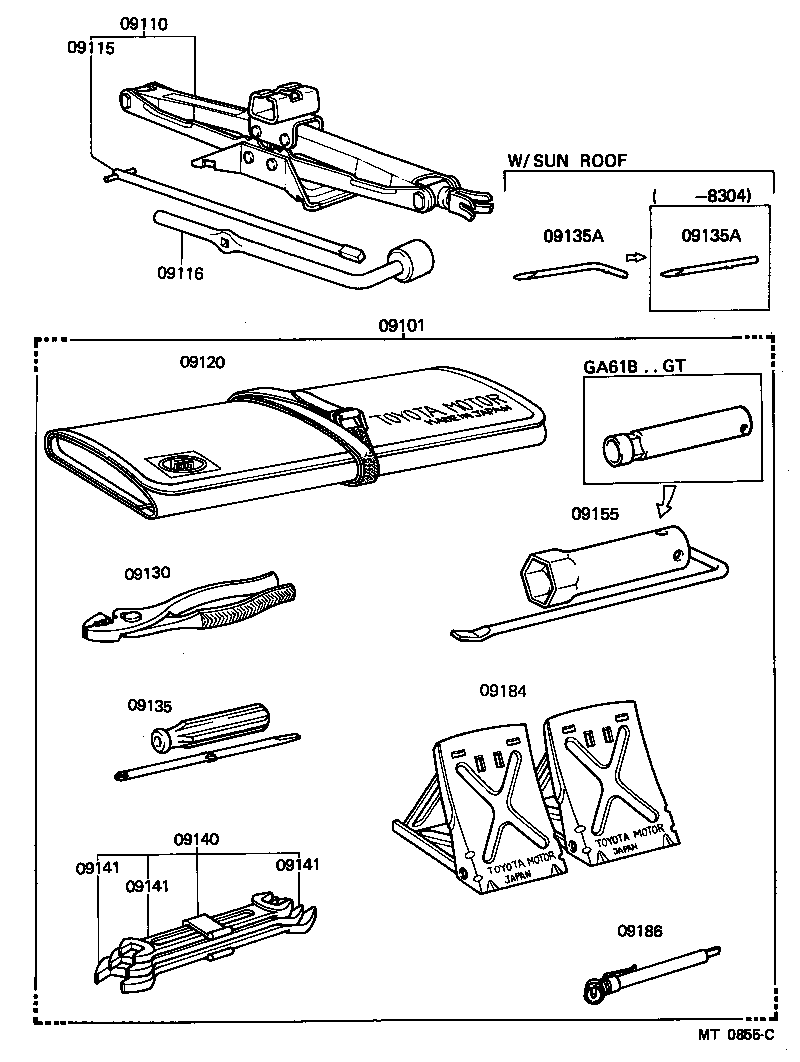

Click highlighted areas on diagram

diagram 09101 09110 09115 09116 09120 09130 09135 09135A 09135A 09140 09141 09141 09141 09155 09184 09186
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-14030

RA63,TA6#

 1
09110 - JACK ASSY
09118-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16010

GA61,MA6#,RA63,SA60,TA6#

 1
09116 - LEVER, JACK HANDLE
09116-16010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
09120 - BAG, TOOL
09120-20030

GA61,MA6#,RA63,SA60,TA6#

 1
09130 - PLIERS
99913-21500

GA61,MA6#,RA63,SA60,TA6#

 1
09135 - DRIVER, SCREW
99915-10700

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
09135A - BIT, SCREW DRIVER
09135-00011

GA61,MA6#,RA63,TA61,63

W/SUN ROOF

 1
09135A - BIT, SCREW DRIVER
09135-00011

GA61,MA6#,RA63,TA61,63

W/SUN ROOF

 1
09140 - SPANNER SET
09140-00060

GA61,MA6#,RA63,SA60,TA6#

 1
09141 - SPANNER
09141-00120

GA61,MA6#,RA63,SA60,TA6#

10X12

 1
09141-00110

GA61,MA6#,RA63,SA60,TA6#

8X10

 1
09141-00130

GA61,MA6#,RA63,SA60,TA6#

14X17

 1
09141 - SPANNER
09141-00120

GA61,MA6#,RA63,SA60,TA6#

10X12

 1
09141-00110

GA61,MA6#,RA63,SA60,TA6#

8X10

 1
09141-00130

GA61,MA6#,RA63,SA60,TA6#

14X17

 1
09141 - SPANNER
09141-00120

GA61,MA6#,RA63,SA60,TA6#

10X12

 1
09141-00110

GA61,MA6#,RA63,SA60,TA6#

8X10

 1
09141-00130

GA61,MA6#,RA63,SA60,TA6#

14X17

 1
09155 - WRENCH, SPARK PLUG
09155-26020

RA63,TA6#

 1
09184 - STOPPER, WHEEL
09184-00010

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
09186 - GAGE, TIRE
09186-00010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
