TA63-BCMSE (1981)

Toyota Celica

Production Jul 1981 - Oct 1982
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

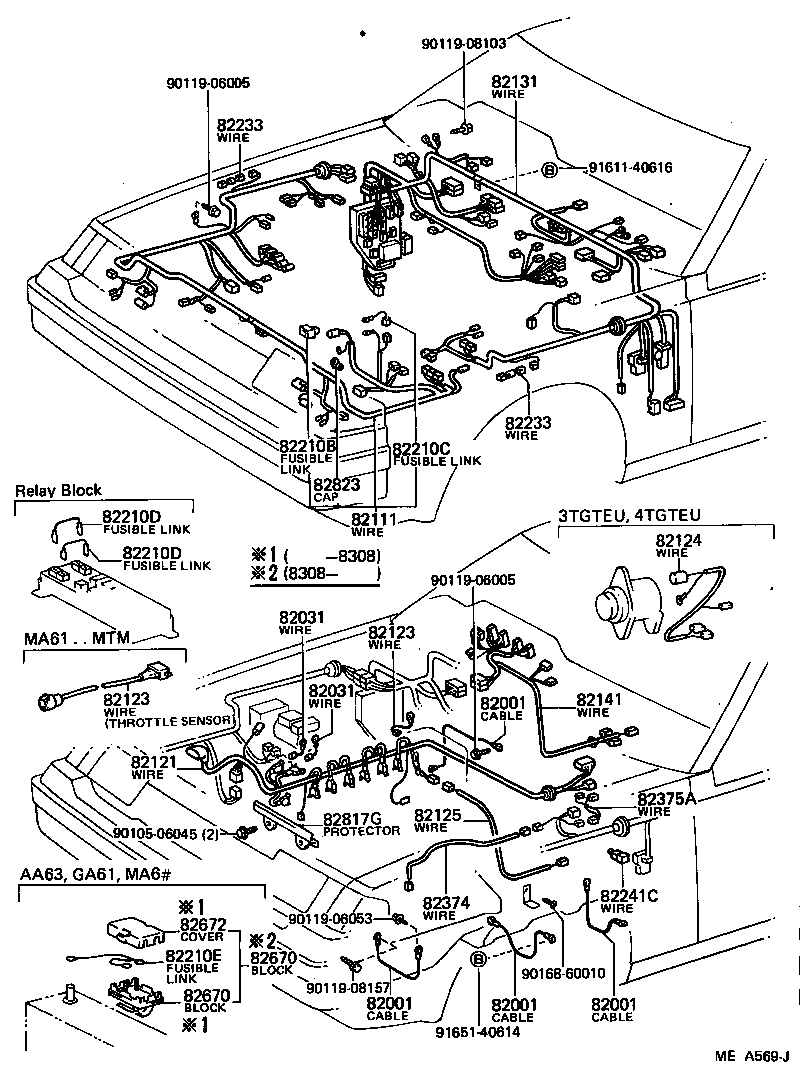

ILLUST NO. 1 OF 6(8107- )

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82031 82031 82111 82121 82123 82123 82124 82125 82131 82141 82210B 82210C 82210D 82210D 82210E 82233 82233 82241C 82374 82375A 82670 82670 82672 82817G 82823 9010506045 9011906005 9011906005 9011906053 9011908103 9011908157 9016860010 9161140616 9165140614
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07148

GA61,MA6#,RA63,SA60,TA6#

TRANSMISSION--FLOOR

 2
90980-07200

MA61,RA63,SA60,TA6#

ENGINE--DASH PANEL

 1
90980-07196

AA63,SA60,TA6#

ENGINE--SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07148

GA61,MA6#,RA63,SA60,TA6#

TRANSMISSION--FLOOR

 2
90980-07200

MA61,RA63,SA60,TA6#

ENGINE--DASH PANEL

 1
90980-07196

AA63,SA60,TA6#

ENGINE--SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07148

GA61,MA6#,RA63,SA60,TA6#

TRANSMISSION--FLOOR

 2
90980-07200

MA61,RA63,SA60,TA6#

ENGINE--DASH PANEL

 1
90980-07196

AA63,SA60,TA6#

ENGINE--SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07148

GA61,MA6#,RA63,SA60,TA6#

TRANSMISSION--FLOOR

 2
90980-07200

MA61,RA63,SA60,TA6#

ENGINE--DASH PANEL

 1
90980-07196

AA63,SA60,TA6#

ENGINE--SIDE MEMBER

 1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-12490

RA63,TA63

(+)

 1
82031-14040

RA63,TA63

(-)

 1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-12490

RA63,TA63

(+)

 1
82031-14040

RA63,TA63

(-)

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-14081

RA63,TA61,63..GT,GTR,ST,SX

 1
82121 - WIRE, ENGINE
82121-14081

TA63..ST,SX

 1
82125 - WIRE, TRANSMISSION
82125-14090

TA63..5F..(ST,SX)

 1
82131 - WIRE, COWL
82131-14101

TA61,63..GTR,ST

 1
82141 - WIRE, INSTRUMENT PANEL
82141-14071

SA60,TA61,63..GTR,ST,SV

 1
82210C - FUSIBLE LINK
90982-08196

AA63,RA63,SA60,TA6#

 1
82210D - FUSIBLE LINK
90982-08125

AA63,GA61,MA6#,RA63,SA60,TA6#

1.0ｲｴﾛｰ,長さ=110,1.0 YELLOW

 1
90982-08157

AA63,GA61,MA6#,RA63,SA60,TA6#

FL 0.3 ﾋﾟﾝｸ,0.3 PINK

 1
82210D - FUSIBLE LINK
90982-08125

AA63,GA61,MA6#,RA63,SA60,TA6#

1.0ｲｴﾛｰ,長さ=110,1.0 YELLOW

 1
90982-08157

AA63,GA61,MA6#,RA63,SA60,TA6#

FL 0.3 ﾋﾟﾝｸ,0.3 PINK

 1
82375A - WIRE, WIPER MOTOR
82375-24010

GA61,MA61,RA63,TA6#..G,GT,L,S,SX

COLD SPEC

 1
82823 - CAP, TERMINAL, NO.1
82823-22020

GA61,MA6#,RA63,SA60,TA6#

ALTERNATOR

 1
Common parts
90105-06045
90119-06005
90119-06053
90119-08103
90119-08157
90168-60010
91611-40616
91651-40614

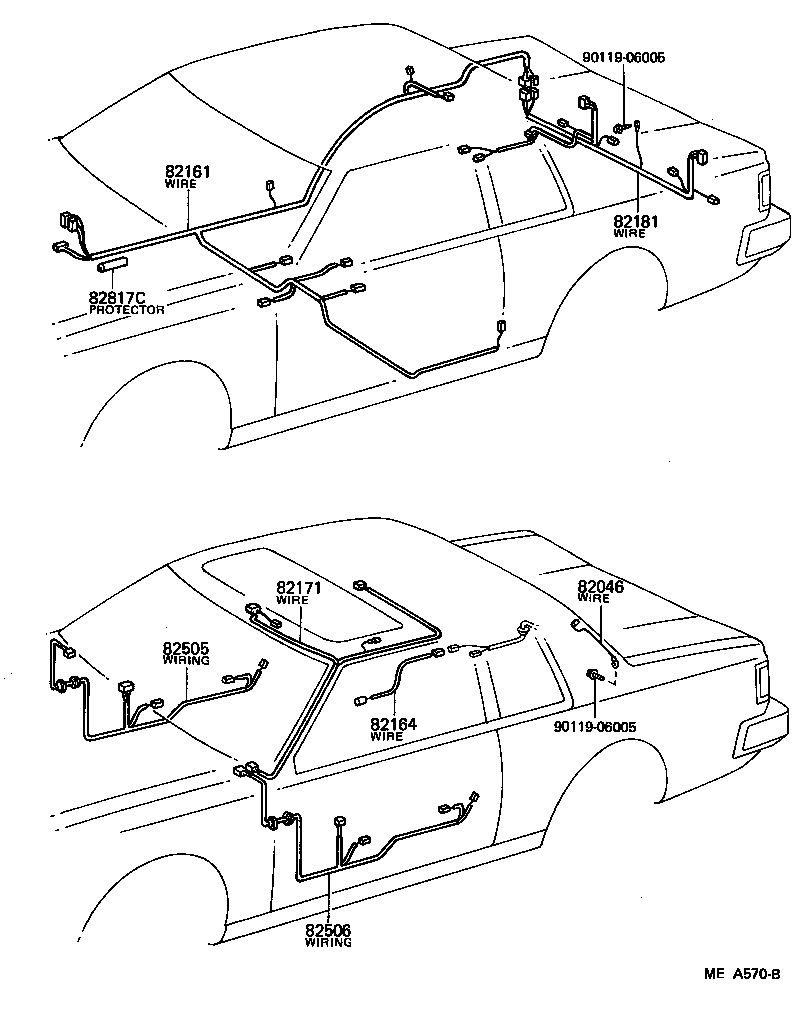

ILLUST NO. 2 OF 6(8107-8507)CP

Click highlighted areas on diagram

diagram 82046 82161 82164 82171 82181 82505 82506 82817C 9011906005 9011906005
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82187-14021

AA63,RA63,SA60,TA6#..CP

 1
82161 - WIRE, FLOOR
82161-14041

RA63,SA60,TA6#..CP

 1
82164 - WIRE, FRAME
82164-14011

GA61,MA6#,RA63,TA6#

 1
82171 - WIRE, ROOF, NO.1
82171-14051

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
82171-14161

AA63,TA61,63..CP

W/SUN ROOF

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-14041

RA63,SA60,TA6#..CP

 1
82505 - WIRING SUB-ASSY, FRONT DOOR, RH
82151-14021

RA63,SA60,TA61,63..GT,GTT,ST,SX

 1
82151-14031

GA61,MA6#,RA63,TA63..G,GT,GTT,L,S,SX

W/*PW

 1
82506 - WIRING SUB-ASSY, FRONT DOOR, LH
82152-14031

GA61,MA6#,RA63,TA63..G,GT,GTT,L,S,SX

W/*PW

 1
82152-14021

RA63,SA60,TA61,63..GT,GTT,ST,SX

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-21030

GA61,MA61,RA63,SA60,TA6#

 1
Common parts
90119-06005

ILLUST NO. 6 OF 6(8107- )

Click highlighted areas on diagram

diagram 8271112250 8271112540 8271114110 8271114230 8271114270 8271114320 8271114330 8271114340 8271114350 8271122300 8271122490 8271124010 8271124070 8271124090 8271124100 8271130070 9046106040 9046106303 9046108066 9046108175 9046108183 9046108186 9046108187 9046108202 9046108306
Part # Description Qty Price
Common parts
82711-12250
82711-12540
82711-14110
82711-14230
82711-14270
82711-14320
82711-14330
82711-14340
82711-14350
82711-22300
82711-22490
82711-24010
82711-24070
82711-24090
82711-24100
82711-30070
90461-06040
90461-06303
90461-08066
90461-08175
90461-08183
90461-08186
90461-08187
90461-08202
90461-08306

ILLUST NO. 6 OF 6(8107- )

Click highlighted areas on diagram

diagram 8271112200 8271114560 8271114690 8271114740 827111A210 8271122220 8271122350 8271122670 9046106006 9046106132 9046108309 9046108312 9046108365 9046108401 9046108483 9046108514 9046108613 9046208003 9046304013 9046310012 9046310337 9046315565 9046400134 9046400137 9098901008
Part # Description Qty Price
Common parts
82711-12200
82711-14560
82711-14690
82711-14740
82711-1A210
82711-22220
82711-22350
82711-22670
90461-06006
90461-06132
90461-08309
90461-08312
90461-08365
90461-08401
90461-08483
90461-08514
90461-08613
90462-08003
90463-04013
90463-10012
90463-10337
90463-15565
90464-00134
90464-00137
90989-01008

ILLUST NO. 3 OF 6(8107- )

Click highlighted areas on diagram

diagram 82981 8298116010 82982 82983 82983 8298312010 8298312010 8298322010 8298322040 82984 8298422010 82985
Part # Description Qty Price
82981 - WIRE, HEADLAMP REPAIR
82981-16010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-12010

AA63,RA63,SA60,TA6#

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-12010

AA63,RA63,SA60,TA6#

 1
82984 - WIRE, HORN REPAIR
82984-22010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
82981-16010
82983-12010
82983-22010
82983-22040
82984-22010

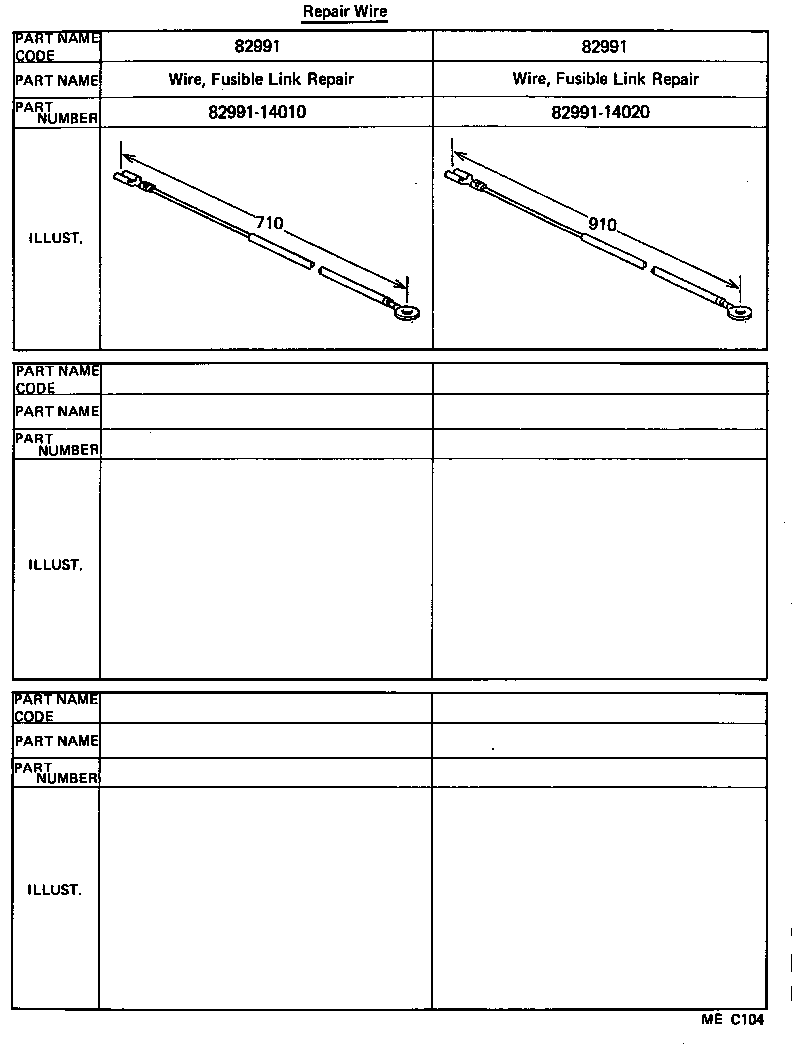

ILLUST NO. 3 OF 6(8107- )

Click highlighted areas on diagram

diagram 82991 82991 8299114010 8299114020
Part # Description Qty Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-14020

AA63,RA63,SA60,TA6#

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-14020

AA63,RA63,SA60,TA6#

 1
Common parts
82991-14010
82991-14020

ILLUST NO. 4 OF 6(8107- )

Click highlighted areas on diagram

diagram 8281714280 8281714320 8281714330 8281714340 8281714350 8281714360 8281714380 8281714410 8281714430 8281720160 8281722280 8281724010 8281724020 8281724030 8281724040 8281724070 8281724080 8281791707
Part # Description Qty Price
Common parts
82817-14280
82817-14320
82817-14330
82817-14340
82817-14350
82817-14360
82817-14380
82817-14410
82817-14430
82817-20160
82817-22280
82817-24010
82817-24020
82817-24030
82817-24040
82817-24070
82817-24080
82817-91707

ILLUST NO. 6 OF 6(8107- )

Click highlighted areas on diagram

diagram 8271114660 8271114720 8271114750 8271114800 8271122620 8271124240 9046108251 9046108509 9046110284 9046208006 9046315003 9046400257 9046400259 9098901015
Part # Description Qty Price
Common parts
82711-14660
82711-14720
82711-14750
82711-14800
82711-22620
82711-24240
90461-08251
90461-08509
90461-10284
90462-08006
90463-15003
90464-00257
90464-00259
90989-01015

ILLUST NO. 5 OF 6(8107- )

Click highlighted areas on diagram

diagram 8282314040 8282314060 8282320010 8282330020
Part # Description Qty Price
Common parts
82823-14040
82823-14060
82823-20010
82823-30020
