TA63-BCMSE (1981)

Toyota Celica

Production Jul 1981 - Oct 1982
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

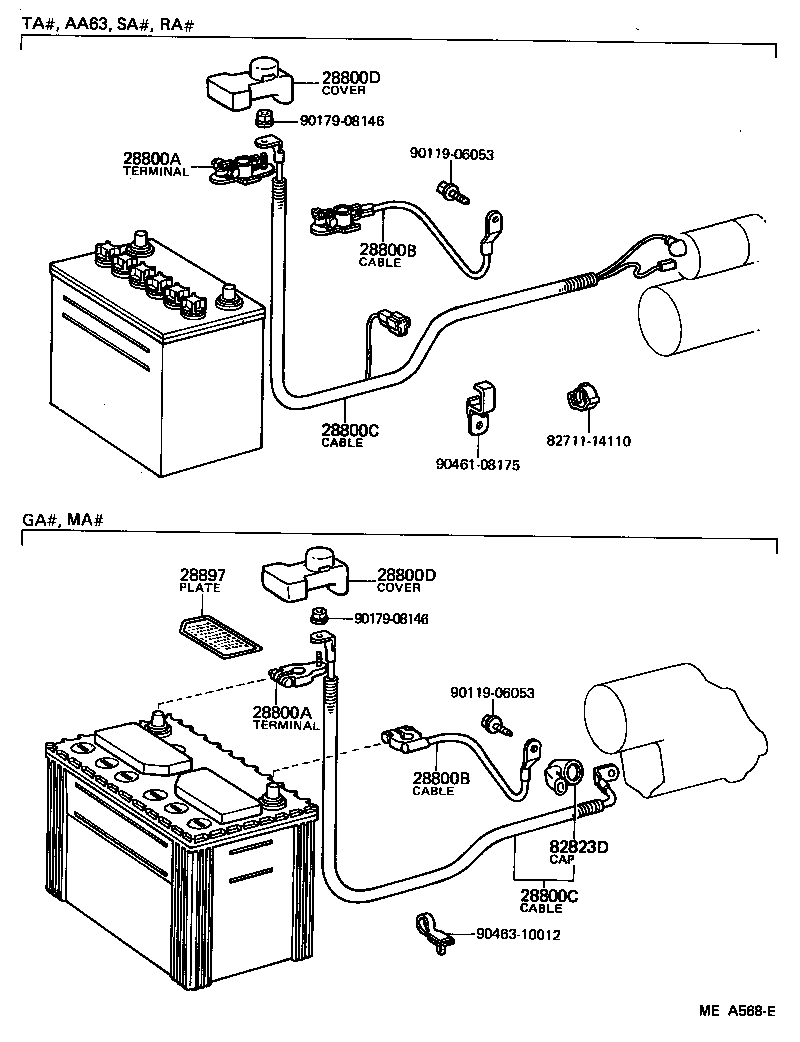

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 28897 8271114110 82823D 9011906053 9011906053 9017908146 9017908146 9046108175 9046310012
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

18RGEU,1GEU,5MGEU,1SU,2TGEU,3TEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

NS40ZAL,NS60L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

18RGEU,1GEU,5MGEU,1SU,2TGEU,3TEU,MTEU..GA61,MA6#,RA63,SA60,TA6#

NS40ZAL,NS60L

 1
28800B - CABLE, BATTERY TO GROUND
90982-02222

18RGEU,4AGEU,1SU,2TGEU,3T#,4TGTEU..AA63,RA63,SA60,TA6#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02222

18RGEU,4AGEU,1SU,2TGEU,3T#,4TGTEU..AA63,RA63,SA60,TA6#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-14101

2TGEU,3TEU..TA61,63

STARTER=12V 1.0KW

 1
82122-14031

2TGEU,3TEU..TA61,63

STARTER=12V 0.8KW

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-14101

2TGEU,3TEU..TA61,63

STARTER=12V 1.0KW

 1
82122-14031

2TGEU,3TEU..TA61,63

STARTER=12V 0.8KW

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
82711-14110
90119-06053
90179-08146
90461-08175
90463-10012
