TA63-BCMSE (1981)

Toyota Celica

Production Jul 1981 - Oct 1982
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)TA61,63..5F..GT,GTR,ST,SX

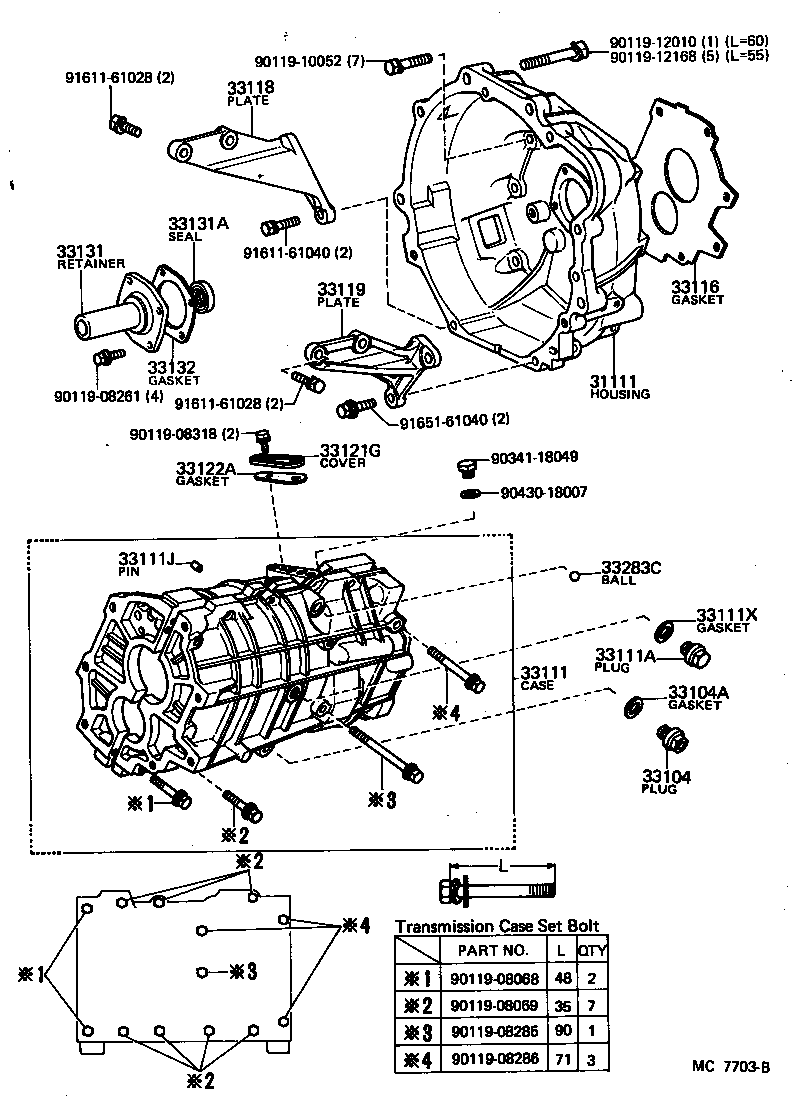

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111J 33111X 33116 33118 33119 33121G 33122A 33131 33131A 33132 33283C 9011908068 9011908069 9011908261 9011908285 9011908286 9011908318 9011910052 9011912010 9011912168 9034118049 9043018007 9161161028 9161161028 9161161040 9165161040
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-14070

TA61,63..5F..(GT,GTR,ST,SX)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)

 1
90341-18081

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-14040

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33101-22021

GA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GA61,MA61,RA63,SA60,TA6#..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08030

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

長さ=16,外径=8

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33116-14020

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-14010

TA6#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-14040

TA6#..5F

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33121-14010

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33122A - GASKET, MANUAL TRANSMISSION CASE COVER
33122-14010

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

GA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)

 1
33131-14020

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

GA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)

 1
90311-25003

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-14020

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
33132-22010

GA61,MA61,RA63,TA63,64..5F..(G,GT,GTS,GTT,L,S)

 1
33283C - BALL, REVERSE RESTRICT
90360-10003

AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
Common parts
90119-08068
90119-08069
90119-08261
90119-08285
90119-08286
90119-08318
90119-10052
90119-12010
90119-12168
90341-18049
90430-18007
91611-61028
91611-61040
91651-61040
