TA63-BCMSE (1981)
Toyota Celica
(8107-8308)3TEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-28010 |
3TEU..TA63..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-28011 |
3TEU..TA63..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-28011 |
3TEU..TA63..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16267-28010 |
3TEU..TA63 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-28010 |
3TEU..TA63 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
3T#,4TGTEU..TA63,64 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
3T#,4TGTEU..TA63,64 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
3T#,4TGTEU..TA63,64 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
3T#,4TGTEU..TA63,64 |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-28010 |
3TEU..TA63 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-28010 |
3TEU..TA63 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-28010 |
3TEU..TA63 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-28011 |
3TEU..TA63 |
1 | ||
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-70020 |
2TGEU,3TEU..TA6# |
1 | ||
| 23210-70021 |
2TGEU,3TEU..TA6# |
1 | ||
| 23210T - BRACKET, FUEL PUMP | ||||
| 23265-70010 |
2TGEU,3T#..TA61,63 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-26080 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-26080 |
2TGEU,3TEU..TA6# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90999-99094 |
2TGEU,3TEU..TA6# |
1 | ||
| 90999-99090 |
2TGEU,3TEU..TA6# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-45011 |
2TGEU,3TEU..TA61,63 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
2TGEU,3T#,4TGTEU..TA6# |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2TGEU,3T#,4TGTEU..TA6# |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-28010 |
3TEU..TA63 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-10008 |
3TEU..TA63 |
1 | ||
| 23260B - GASKET | ||||
| 90430-10204 |
3TEU..TA63 |
2 | ||
| 23260B - GASKET | ||||
| 90430-10204 |
3TEU..TA63 |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28012 |
3TEU..TA63 |
1 | ||
| 23270A - HOSE(FOR PULSATION DAMPER) | ||||
| 90999-99070 |
3TEU..TA63 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 23270C - SILENCER ASSY(FOR PULSATION DAMPER) | ||||
| 23230-26080 |
3TEU..TA63 |
1 | ||
| 23270D - GASKET(FOR PULSATION DAMPER) | ||||
| 11274-88260 |
3TEU..TA63 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-28010 |
3TEU..TA63 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
3TEU..TA63 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
3TEU..TA63 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
3TEU..TA63 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
2TGEU,3T#,4TGTEU..TA6# |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-28010 |
3TEU..TA63 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-34110 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-34110 |
2TGEU,3T#,4TGTEU..TA6# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2TGEU,3T#,4TGTEU..TA6# |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2TGEU,3T#,4TGTEU..TA6# |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
2TGEU,3T#,4TGTEU..TA6# |
2 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-28010 |
3TEU..TA63 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
3TEU..TA63 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
3TEU..TA63 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
3TEU..TA63 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-28030 |
3TEU..TA63 |
1 | ||
| 23801U - UNION | ||||
| 90404-12001 |
3TEU..TA63 |
1 | ||
| 23801V - BOLT, UNION | ||||
| 90401-12097 |
3TEU..TA63 |
1 | ||
| 23801Y - GASKET | ||||
| 90430-12005 |
3TEU..TA63 |
3 | ||
| 23801Y - GASKET | ||||
| 90430-12005 |
3TEU..TA63 |
3 | ||
| 23801Y - GASKET | ||||
| 90430-12005 |
3TEU..TA63 |
3 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-28010 |
3TEU..TA63 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
3TEU..TA63 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
3TEU..TA63 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
3TEU..TA63 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-28010 |
3TEU..TA63 |
1 | ||
| Common parts | ||||
| 23217-41100 | ||||
| 90099-01496 | ||||
| 90099-04298 | ||||
| 90170-08008 | ||||
| 90201-12109 | ||||
| 90339-07016 | ||||
| 90385-10002 | ||||
| 90467-19122 | ||||
| 90561-08002 | ||||
| 91611-40612 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-40840 | ||||
| 91611-40850 | ||||
| 91655-40616 | ||||
| 91656-40818 | ||||
| 91666-40832 | ||||
| 92122-40850 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| 94511-00800 | ||||

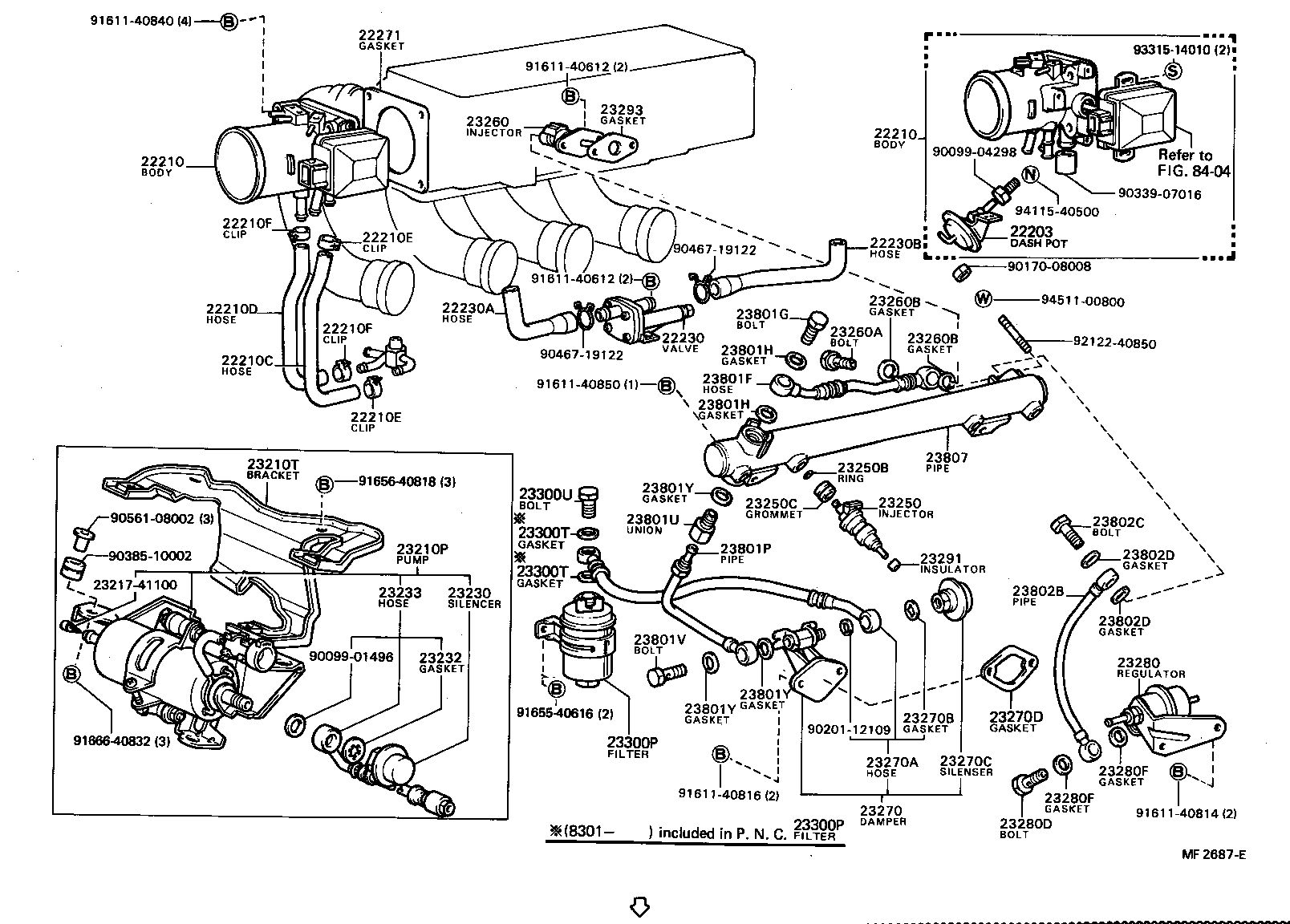

| Linked diagrams | ||||
| 8404 | ||||
