TA63-BCMQZ (1982)

Toyota Celica

Production Oct 1982 - Jul 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

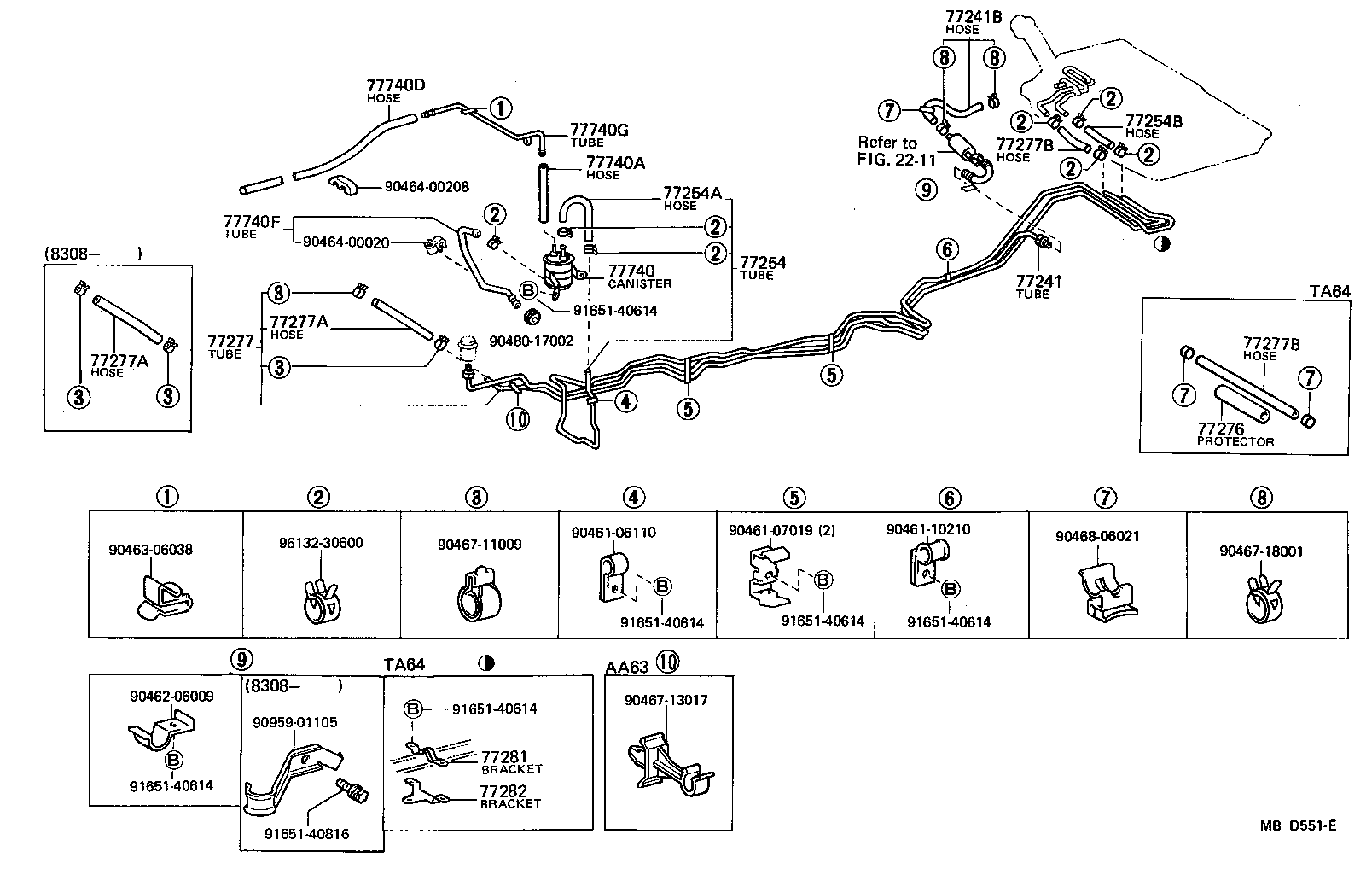

ILLUST NO. 2 OF 2(8107-8507)AA63,RA63,TA6#

Click highlighted areas on diagram

diagram 2211 77241 77241B 77254 77254A 77254B 77276 77277 77277A 77277A 77277B 77277B 77281 77282 77740 77740A 77740D 77740F 77740G 9046106110 9046107019 9046110210 9046206009 9046306038 9046400020 9046400208 9046711009 9046713017 9046718001 9046806021 9048017002 9095901105 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140816 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-14210

RA63,TA6#

 1
77251-14300

AA63,TA63

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-20022

GA61,MA6#,RA63,TA61,63

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-14190

RA63,TA6#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06020

AA63,TA6#

*H,L=130

 1
90447-12040

AA63,TA63

 1
95332-06030

RA63,SA60,TA61,63

*H,L=260

 1
95332-06030

AA63,TA63

*H,L=260

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

AA63,GA61,MA6#,RA63,TA61,63

*H,L=140

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14200

RA63,TA6#

 1
77255-14210

AA63,TA63

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

TA6#

*H,L=300

 1
95332-06040

RA63,TA6#

*H,L=340

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

TA6#

*H,L=300

 1
95332-06040

RA63,TA6#

*H,L=340

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06020

AA63,RA63,TA61,63

*H,L=140

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06020

AA63,RA63,TA61,63

*H,L=140

 1
77740 - CANISTER ASSY, CHARCOAL
77740-14330

AA63,RA63,TA61,63..GT,GTR,ST,SX

 1
77740-14360

TA63,64..GTS,GTT

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

TA6#

*H,L=280,ﾏｰｸ=#*

 1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
95411-19960

TA63,64..GTS,GTT

*H,L=390,ﾏｰｸ=#*

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-14120

AA63,TA6#

 1
77264-14070

RA63,SA60,TA6#

 1
77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23819-27020

AA63,RA63,SA60,TA6#

 1
Common parts
90461-06110
90461-07019
90461-10210
90462-06009
90463-06038
90464-00020
90464-00208
90467-11009
90467-13017
90467-18001
90468-06021
90480-17002
90959-01105
91651-40614
91651-40816
96132-30600
Linked diagrams
2211
