TA61-BLMXF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )LB

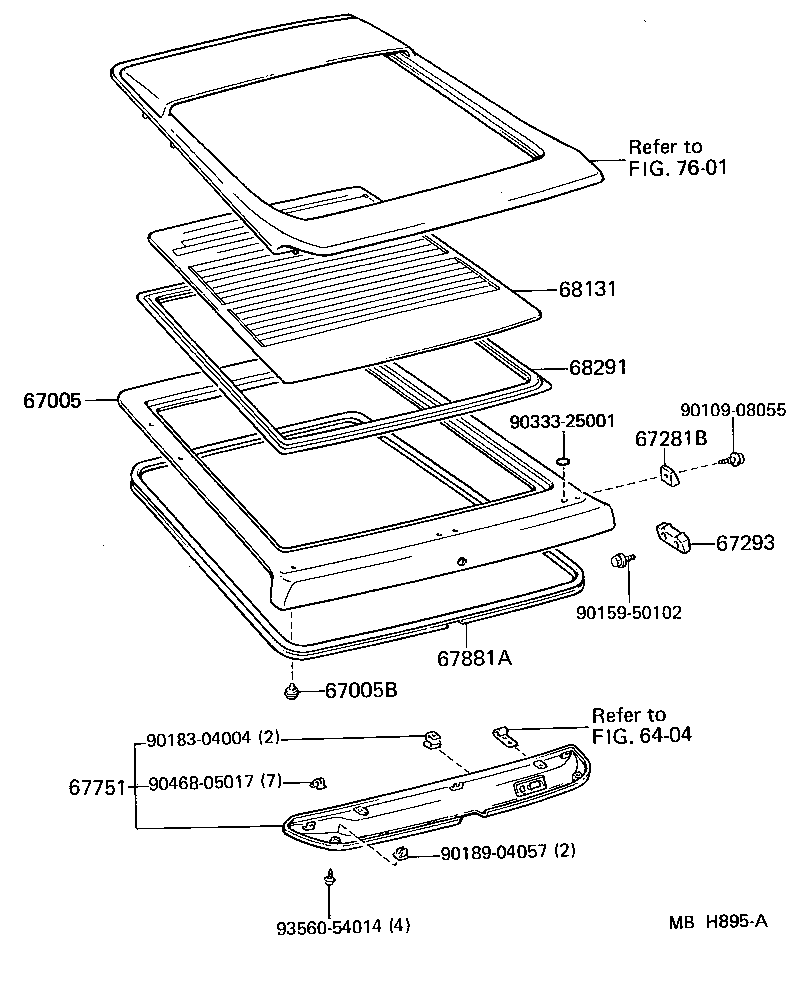

Click highlighted areas on diagram

diagram 6404 67005 67005B 67281B 67293 67751 67881A 68131 68291 7601 9010908055 9015950102 9018304004 9018904057 9033325001 9046805017 9356054014
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-14280

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,GTR,GTT,S,ST,SX)

W/RR WIPER

 1
67005-14260

GA61,SA60,TA61,63..LB..(GTR,L,ST,SV)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09041

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-14020

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-14010

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 2
67751 - BOARD, BACK DOOR TRIM
64781-1403004

GA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)

BLUE,BLUE,TRIM8#

 1
64781-1403001

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

BLACK,BLACK,TRIM2#

 1
64781-1403006

RA63,SA60,TA61..LB..(GT,ST)

DARK BROWN,BROWN,TRIM4#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-14040

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

COLD SPEC

 1
67881-14030

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

 1
68131 - GLASS, BACK DOOR
68131-14030

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB

T=4.0,*EHTT

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-14010

AA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,GTR,GTT,L,S,ST,SX)

W/MOULDING

 1
Common parts
90109-08055
90159-50102
90183-04004
90189-04057
90333-25001
90468-05017
93560-54014
Linked diagrams
6404
7601
