TA61-BLMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)AA63,RA63,SA60,TA6#

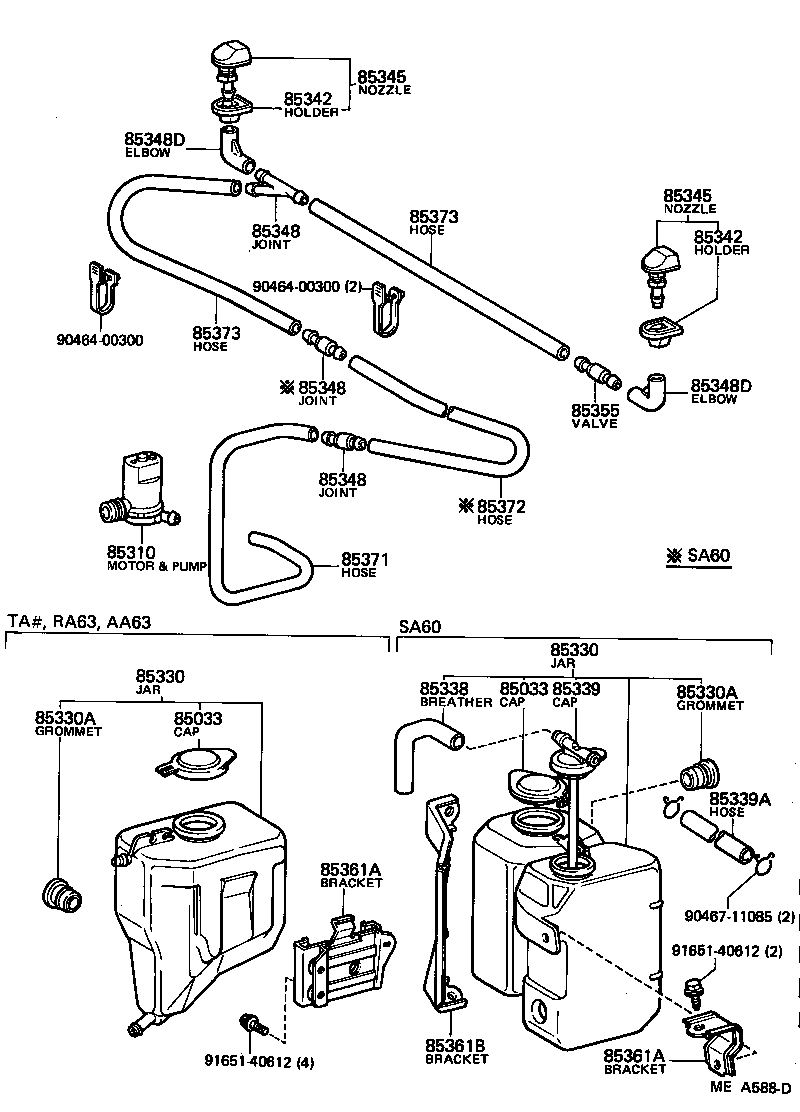

Click highlighted areas on diagram

diagram 85033 85033 85310 85330 85330 85330A 85330A 85338 85339 85339A 85342 85342 85345 85345 85348 85348 85348 85348D 85348D 85355 85361A 85361A 85361B 85371 85372 85373 85373 9046400300 9046400300 9046711085 9165140612 9165140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10130

GA61,MA6#,RA63,SA60,TA6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-14370

RA63,TA6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-14370

RA63,TA6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RA63,SA60,TA6#

2-WAY

 2
85355-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RA63,SA60,TA6#

2-WAY

 2
85355-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RA63,SA60,TA6#

2-WAY

 2
85355-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

3-WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AA63,GA61,MA6#,RA63,SA60,TA61,63

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85036-14130

AA63,RA63,TA6#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85036-14130

AA63,RA63,TA6#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GA61,MA6#,RA63,SA60,TA6#

*H,L=550

 1
90099-33299

AA63,RA63,SA60,TA6#

*H,L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GA61,MA6#,RA63,SA60,TA6#

*H,L=550

 1
90099-33299

AA63,RA63,SA60,TA6#

*H,L=450

 1
Common parts
90464-00300
90467-11085
91651-40612
