TA61-BLMQF (1981)
Toyota Celica
Production
Jul 1981
-
Aug 1983
Engine
2TGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8107-8501)GA61 ; (8107- )MA6#,RA63,TA61,63..G,GT,GTR,S,ST,SX
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-26040 |
18RGEU,2TGEU,3TEU..RA63,TA61,63 |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-26040 |
18RGEU,2TGEU,3TEU..RA63,TA61,63 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
AA63,GA61,MA6#,RA63,TA6# NO.1 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12010 |
TA61,63..GT,GTR,ST,SX |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
MA63,RA63,TA6# |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
MA63,RA63,TA6# |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93315-15014 | ||||
| 93319-15008 | ||||

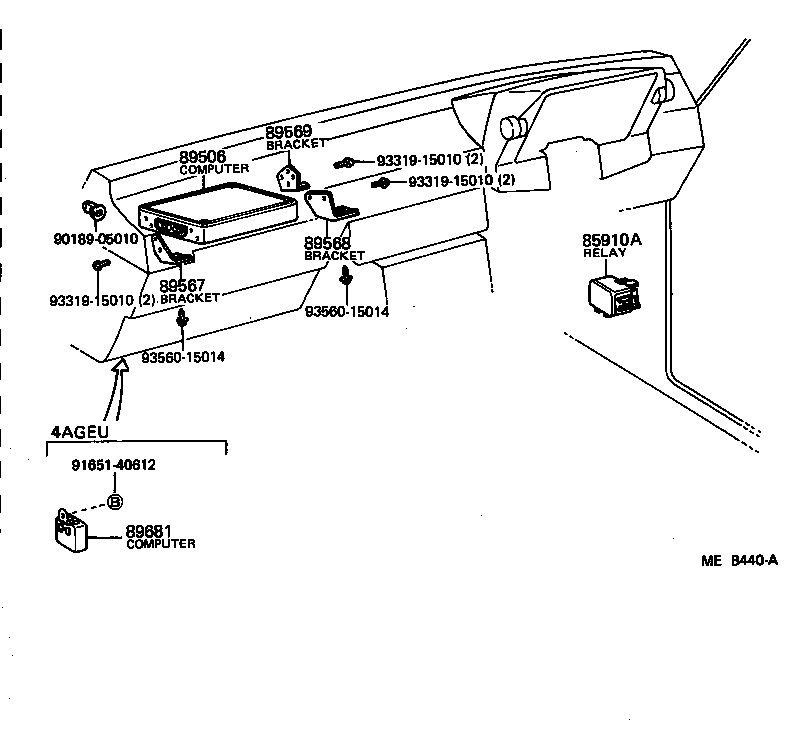

ILLUST NO. 2 OF 2(8107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89506 - COMPUTER SET, FUEL INJECTION | ||||
| 89561-12032 |
TA61 |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89567-14070 |
RA63,TA61;GA61,MA63,TA63,64..G,GTS,GTT,L,S,ST,SX |
1 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89568-14060 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89569-14060 |
AA63,GA61,MA6#,RA63,TA6# |
1 | ||
| Common parts | ||||
| 90189-05010 | ||||
| 91651-40612 | ||||
| 93319-15010 | ||||
| 93560-15014 | ||||
