TA61-BLMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)RA63,SA60,TA61,63..LB

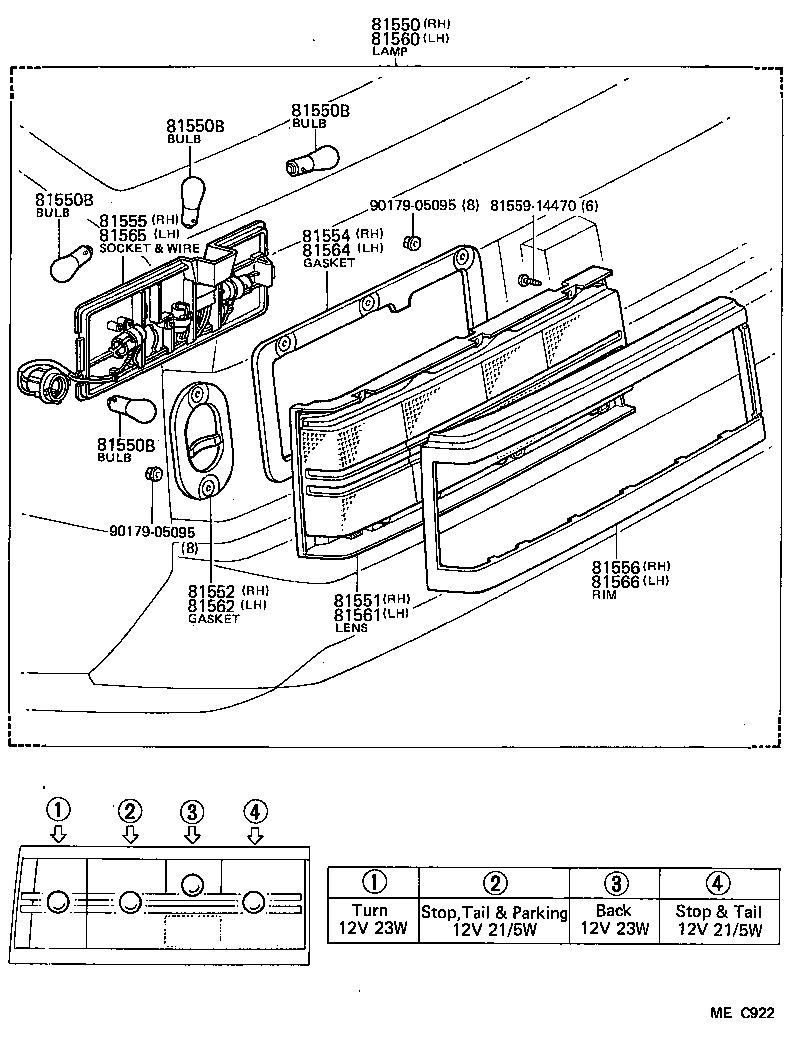

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81552 81554 81555 81556 8155914470 81560 81561 81562 81564 81565 81566 9017905095 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80102

RA63,SA60,TA61,63..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 23W,12V 23W

 4
99132-21210

AA63,GA61,MA6#,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-14470

RA63,SA60,TA61,63..LB

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-14470

AA63,RA63,SA60,TA61,63..LB

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-14470

AA63,RA63,SA60,TA61,63..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-14470

RA63,SA60,TA61,63..LB

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-14470

AA63,RA63,SA60,TA61,63..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80106

RA63,SA60,TA61,63..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-14470

RA63,SA60,TA61,63..LB

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-14470

AA63,RA63,SA60,TA61,63..LB

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-14470

AA63,RA63,SA60,TA61,63..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-14470

RA63,SA60,TA61,63..LB

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-14470

AA63,RA63,SA60,TA61,63..LB

 1
Common parts
81559-14470
90179-05095
