TA61-BLMQF (1981)
Toyota Celica
ILLUST NO. 2 OF 2(8107- )AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-22010 |
AA63,RA63,TA61..GT |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-22010 |
AA63,RA63,TA61..GT |
1 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 47405-30040 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 46507 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 47406-30040 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-22011 |
AA63,RA63,TA61..GT |
1 | ||
| 46540A - PLATE, PARKING BRAKE SHOE GUIDE | ||||
| 47456-22010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 46540B - BOLT, PARKING BRAKE SHOE GUIDE PLATE SET | ||||
| 47459-30010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-22011 |
AA63,RA63,TA61..GT |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX FR |
2 | ||
| 90506-16007 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX RR |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX FR |
2 | ||
| 90506-16007 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX RR |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09186 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX 厚さ=0.9,T=0.9 |
2 | ||
| 90564-09185 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX 厚さ=0.6,T=0.6 |
2 | ||
| 90564-09184 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX 厚さ=0.3,T=0.3 |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16053 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX RR |
2 | ||
| 90501-14049 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX FR |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16053 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX RR |
2 | ||
| 90501-14049 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX FR |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22020 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX RR |
2 | ||
| 47447-20030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX FR |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22020 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX RR |
2 | ||
| 47447-20030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX FR |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-22010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX INNER |
4 | ||
| 47449-30030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX OUTER |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-22010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX INNER |
4 | ||
| 47449-30030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX OUTER |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-22010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX INNER |
4 | ||
| 47449-30030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX OUTER |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-22010 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX INNER |
4 | ||
| 47449-30030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX OUTER |
4 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-22011 |
AA63,RA63,TA61..GT |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-22011 |
AA63,RA63,TA61..GT |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 47611-22030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 47613-22020 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
2 | ||
| 46613 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22030 |
AA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 94115-51600 | ||||
| 94511-01600 | ||||

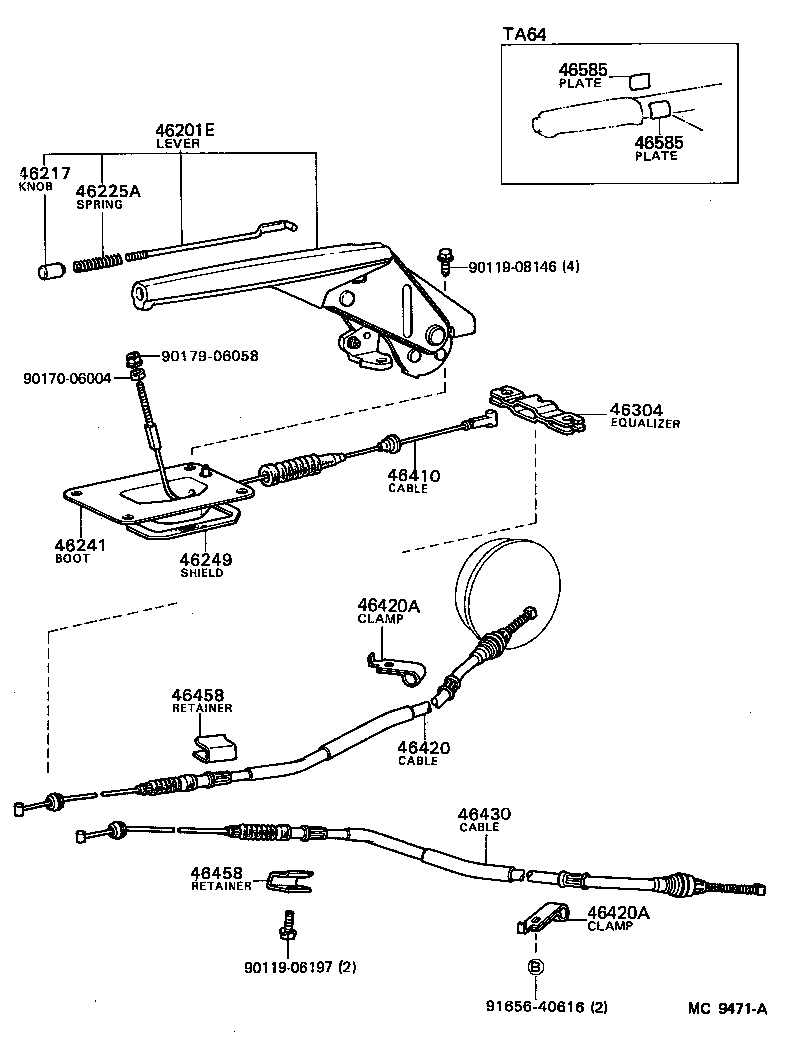

ILLUST NO. 1 OF 2(8107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2401004 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 46201-2401006 |
AA63,RA63,SA60,TA61,63..GT,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 46201-2401001 |
GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX BLACK,BLACK,TRIM2# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002006 |
AA63,RA63,SA60,TA61,63 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 46217-1002001 |
AA63,GA61,MA6#,RA63,SA60,TA6# BLACK,BLACK,TRIM2# |
1 | ||
| 46217-1002004 |
AA63,GA61,MA6#,RA63,SA60,TA61,63..LB BLUE,BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-12010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-24010 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-14190 |
AA63,RA63,TA61,63..GT,GTT |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-14013 |
AA63,GA61,MA6#,RA63,TA61,63 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-14013 |
AA63,GA61,MA6#,RA63,TA61,63 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-14230 |
AA63,RA63,TA61,63..GT,GTT |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AA63,GA61,MA6#,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91656-40616 | ||||
