TA61-BLMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)2TGEU,3TGTEU,4TGTEU

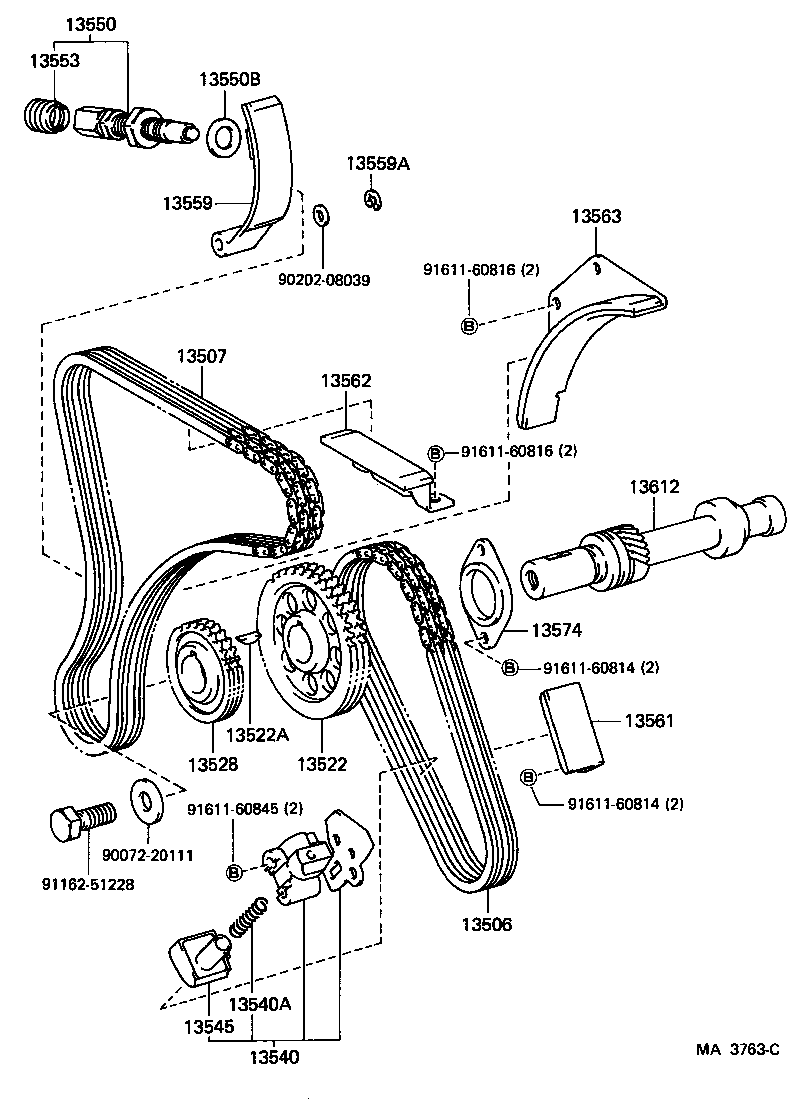

Click highlighted areas on diagram

diagram 13506 13507 13522 13522A 13528 13540 13540A 13545 13550 13550B 13553 13559 13559A 13561 13562 13563 13574 13612 9007220111 9020208039 9116251228 9161160814 9161160814 9161160816 9161160816 9161160845
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-25010

2TGEU,3T#,4TGTEU..TA6#

 1
13507 - CHAIN SUB-ASSY, NO.2
13507-88210

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13522 - GEAR, PUMP DRIVE SHAFT
13522-33010

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
90280-05001

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13528 - GEAR, CAMSHAFT DRIVE
13528-33010

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-88221

2TGEU..TA61

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90072-50129

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-25010

2TGEU,3T#,4TGTEU..TA6#

 1
13550 - TENSIONER ASSY, CHAIN, NO.2
13550-88270

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13550B - GASKET, CHAIN TENSIONER, NO.2
90430-22135

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13553 - COVER, CHAIN TENSIONER DUST
13553-88210

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-88260

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13559A - RING, E(FOR CHAIN TENSIONER SLIPPER)
96160-00700

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-25010

2TGEU,3T#,4TGTEU..TA6#

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-88210

2TGEU..TA61

 1
13563 - DAMPER, CHAIN VIBRATION, NO.3
13563-88220

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13574 - PLATE, PUMP DRIVE SHAFT
13571-51010

2TGEU,3TGTEU,4TGTEU..TA6#

 1
13612 - SHAFT, PUMP DRIVE
13612-88260

2TGEU,3TGTEU,4TGTEU..TA6#

 1
Common parts
90072-20111
90202-08039
91162-51228
91611-60814
91611-60816
91611-60845
