TA61-BCMXF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

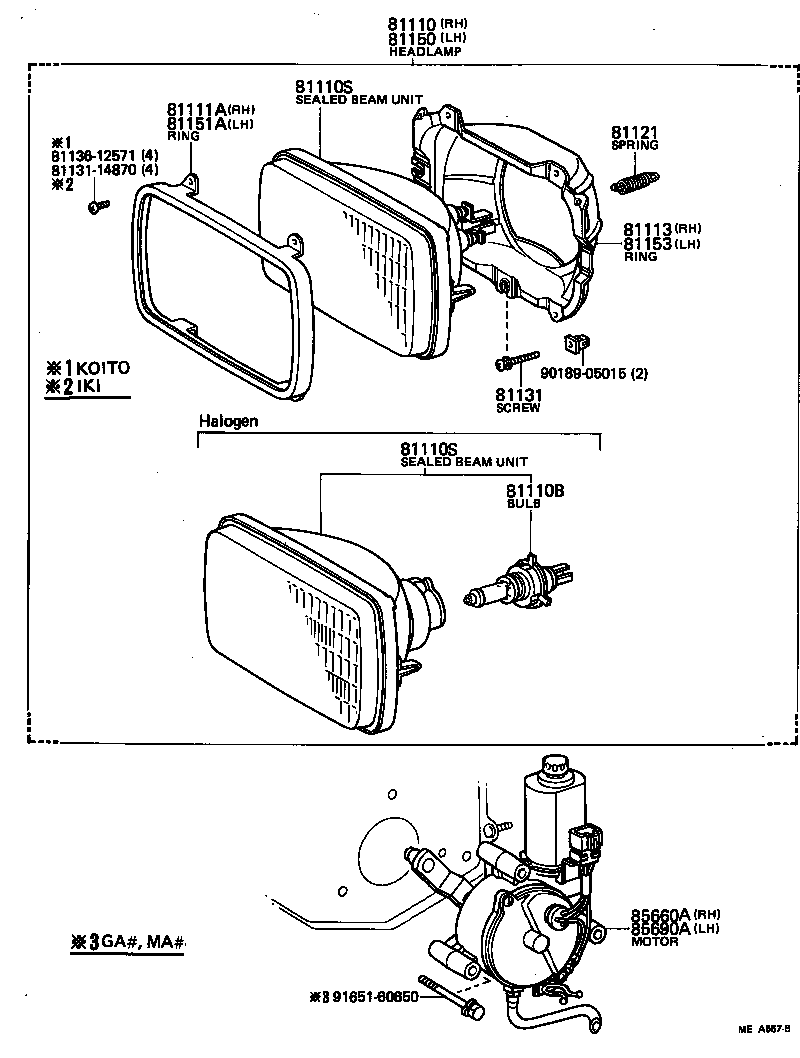

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111A 81113 81121 81131 8113114870 8113612571 81150 81151A 81153 85660A 85690A 9018905015 9165160650
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80133

RA63,TA6#..GT,GTR,GTS,GTT,SX

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AA63,GA61,MA6#,RA63,SA60,TA6#..G,GT,GTR,GTS,GTT,S,SX

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04010

GA61,MA6#,RA63,TA6#..G,GT,GTR,GTS,GTT,S,SX

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04010

GA61,MA6#,RA63,TA6#..G,GT,GTR,GTS,GTT,S,SX

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

AA63,GA61,MA6#,RA63,SA60,TA6#

KOITO

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14670

AA63,RA63,SA60,TA6#

KOITO

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

AA63,GA61,MA6#,RA63,SA60,TA6#

KOITO

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-14670

AA63,GA61,MA6#,RA63,SA60,TA6#

KOITO

 4
81150 - HEADLAMP ASSY, LH
81150-80130

RA63,TA6#..GT,GTR,GTS,GTT,SX

HALOGEN

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

AA63,GA61,MA6#,RA63,SA60,TA6#

KOITO

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14670

AA63,RA63,SA60,TA6#

KOITO

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-14010

RA63,SA60,TA6#

 1
85660-14011

SA60,TA6#

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-14010

RA63,SA60,TA6#

 1
85690-14011

SA60,TA6#

 1
Common parts
81131-14870
81136-12571
90189-05015
91651-60650
