TA61-BCMXF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)2TGEU

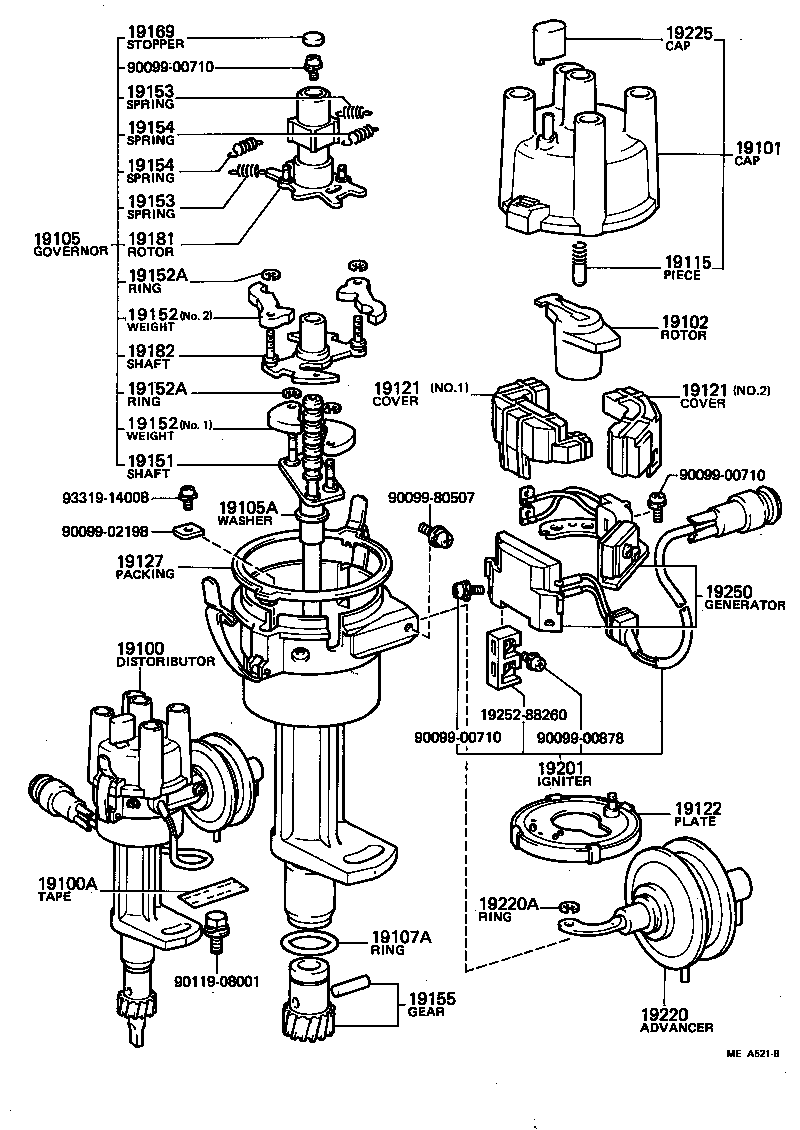

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19105 19105A 19107A 19115 19121 19121 19122 19127 19151 19152 19152 19152A 19152A 19153 19153 19154 19154 19155 19169 19181 19182 19201 19220 19220A 19225 19250 1925288260 9009900710 9009900710 9009900710 9009900878 9009902198 9009980507 9011908001 9331914008
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19060-88260

2TGEU..TA61

 1
19100A - TAPE, SEALING
90919-24004

2TGEU,3T#,4TGTEU..TA6#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-25070

2TGEU,3TEU..TA61,63

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26150

2TGEU..TA61

 1
19102-33012

2TGEU..TA61

 1
19105 - GOVERNOR SUB-ASSY
19105-88263

2TGEU..TA61

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01412

2TGEU,3TEU..TA61,63

厚さ=2.3,T=2.3

 1
90099-01387

2TGEU,3TEU..TA61,63

厚さ=2.9,T=2.9

 1
90099-01386

2TGEU,3TEU..TA61,63

厚さ=2.7,T=2.7

 1
90099-01385

2TGEU,3TEU..TA61,63

厚さ=2.5,T=2.5

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2TGEU,3TEU..TA61,63

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2TGEU,3TEU..TA61,63

 2
19121 - COVER, DUST PROOF
19121-88260

2TGEU..TA61

NO.2

 1
19121-88261

2TGEU..TA61

NO.1

 1
19121 - COVER, DUST PROOF
19121-88260

2TGEU..TA61

NO.2

 1
19121-88261

2TGEU..TA61

NO.1

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-88263

2TGEU..TA61

 1
19127 - PACKING, DUST PROOF
19127-15010

2TGEU,3TEU..TA61,63

 1
19151 - SHAFT, GOVERNOR
19151-88263

2TGEU..TA61

 1
19152 - WEIGHT, GOVERNOR
19152-43060

2TGEU..TA61

NO.2

 2
19152-44170

2TGEU..TA61

NO.1

 2
19152 - WEIGHT, GOVERNOR
19152-43060

2TGEU..TA61

NO.2

 2
19152-44170

2TGEU..TA61

NO.1

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

2TGEU,3T#,4TGTEU..TA6#

 4
90099-07109

2TGEU..TA61

 4
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

2TGEU,3T#,4TGTEU..TA6#

 4
90099-07109

2TGEU..TA61

 4
19153 - SPRING, GOVERNOR, A
19153-88263

2TGEU..TA61

 2
19153 - SPRING, GOVERNOR, A
19153-88263

2TGEU..TA61

 2
19154 - SPRING, GOVERNOR, B
19153-88264

2TGEU..TA61

 2
19154 - SPRING, GOVERNOR, B
19153-88264

2TGEU..TA61

 2
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-88220

2TGEU..TA61

 1
19169 - STOPPER, CAM GREASE
19169-32010

2TGEU,3TEU..TA61,63

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-88260

2TGEU..TA61

 1
19182 - SHAFT, DISTRIBUTOR, DRIVING
19182-88260

2TGEU..TA61

 1
19201 - IGNITER
89620-14220

2TGEU..TA61

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-88263

2TGEU..TA61

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

2TGEU,3T#,4TGTEU..TA6#

 1
19225 - CAP, RUBBER
19225-25070

2TGEU,3TEU..TA61,63

 1
19250 - GENERATOR ASSY, SIGNAL
19250-88263

2TGEU..TA61

 1
19250-13020

2TGEU..TA61

 1
Common parts
19252-88260
90099-00710
90099-00878
90099-02198
90099-80507
90119-08001
93319-14008
