TA61-BCMXF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8308)2TGEU

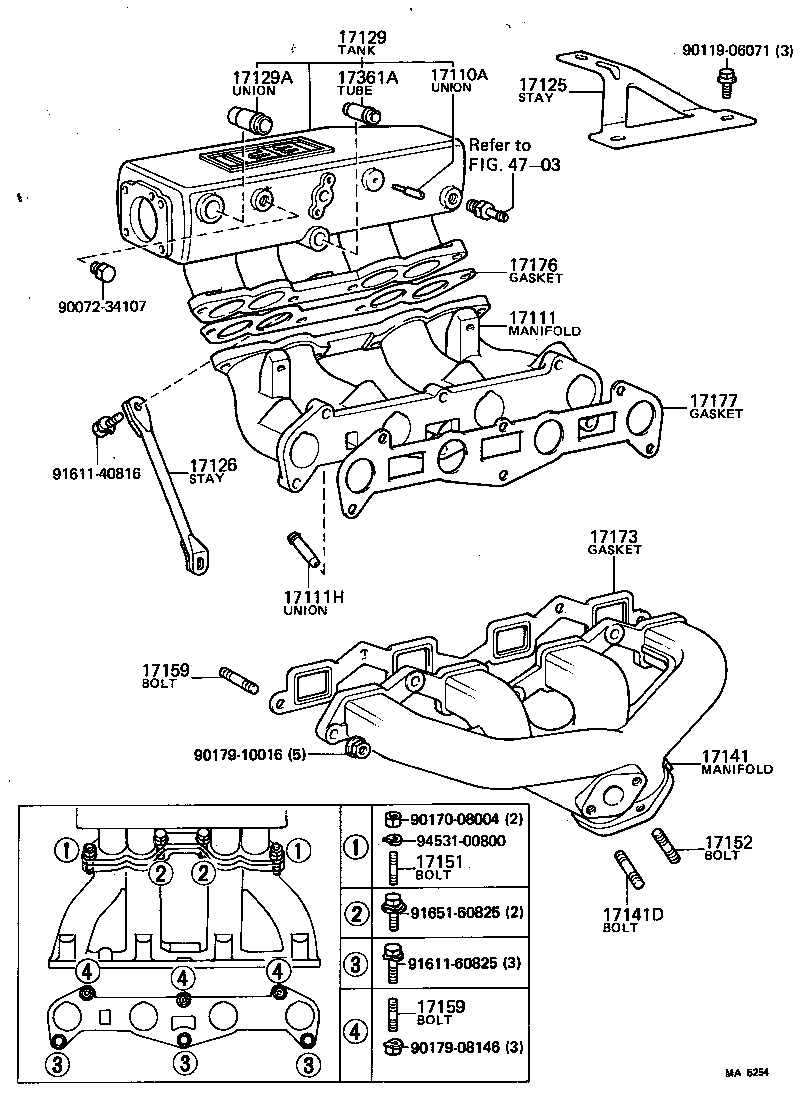

Click highlighted areas on diagram

diagram 17110A 17111 17111H 17125 17126 17129 17129A 17141 17141D 17151 17152 17159 17159 17173 17176 17177 17361A 4703 9007234107 9011906071 9017008004 9017908146 9017910016 9161140816 9161160825 9165160825 9453100800
Part # Description Qty Price
17110A - UNION, VACUUM HOSE
90406-04001

2TGEU..TA61

 1
17111 - MANIFOLD, INTAKE
17111-88265

2TGEU..TA61

 1
17111H - UNION(FOR INTAKE MANIFOLD WATER)
90072-40625

2TGEU,3TGTEU,4TGTEU..TA6#

 1
17125 - STAY, SURGE TANK, NO.1
17125-88260

2TGEU..TA61

 1
17126 - STAY, SURGE TANK, NO.2
17126-88260

2TGEU..TA61

 1
17129 - TANK, INTAKE AIR SURGE
17109-88263

2TGEU..TA61

 1
17129A - UNION, NO.1
90072-40624

2TGEU..TA61

 1
17141 - MANIFOLD, EXHAUST
17141-26080

2TGEU..TA61

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

2TGEU,3TEU..TA6#

L=28,S=8&14

 2
90116-08045

2TGEU,3T#,4TGTEU..TA6#

L=28,S=8&14

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08201

2TGEU,3TGTEU,4TGTEU..TA6#

L=39.4,S=13.7&13.7

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2TGEU,3TGTEU,4TGTEU..TA6#

L=46.5,S=14&20

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

2TGEU,3T#,4TGTEU..TA6#

EXHAUST MANIFOLD

 7
90116-08201

2TGEU,3TGTEU,4TGTEU..TA6#

INTAKE MANIFOLD

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

2TGEU,3T#,4TGTEU..TA6#

EXHAUST MANIFOLD

 7
90116-08201

2TGEU,3TGTEU,4TGTEU..TA6#

INTAKE MANIFOLD

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25012

2TGEU,3TEU..TA61,63

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-88260

2TGEU..TA61

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-88260

2TGEU..TA61

 1
17361A - TUBE, AIR(FOR EFI)
90072-40617

2TGEU,3TGTEU,4TGTEU..TA6#

 1
Common parts
90072-34107
90119-06071
90170-08004
90179-08146
90179-10016
91611-40816
91611-60825
91651-60825
94531-00800
Linked diagrams
4703
