TA61-BCMXF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107-8507)2TGEU,3TGTEU,4TGTEU

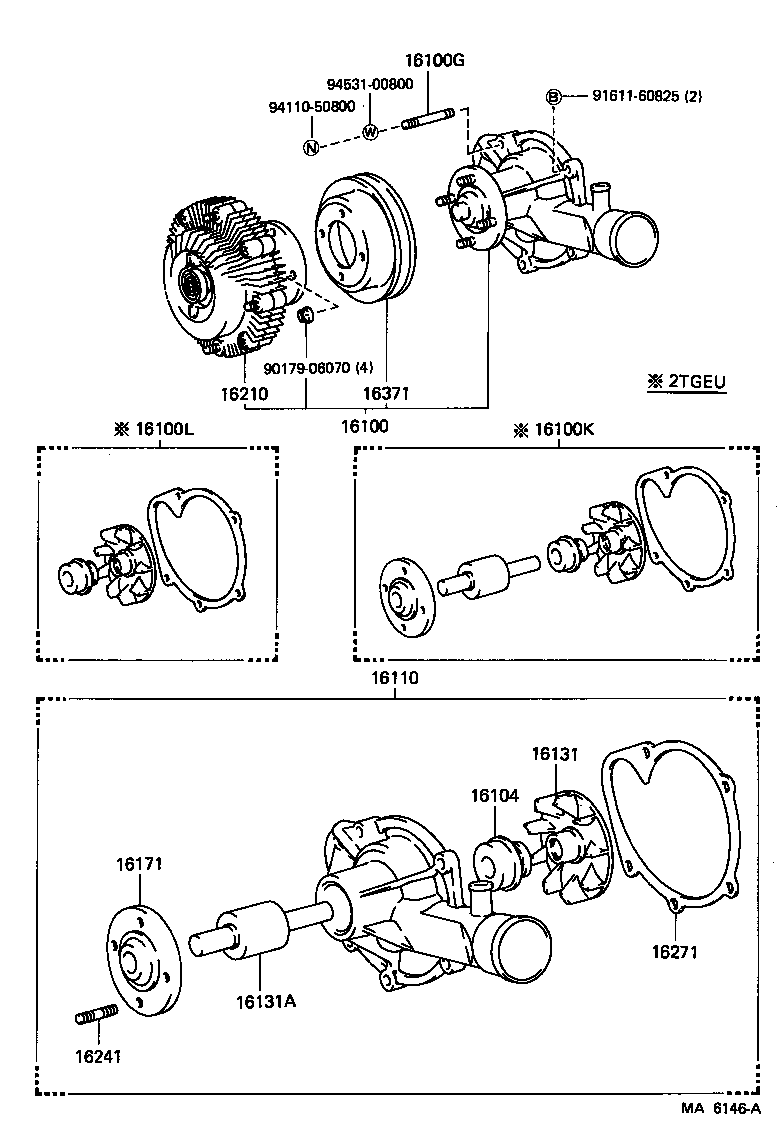

Click highlighted areas on diagram

diagram 16100 16100G 16100K 16100L 16104 16110 16131 16131A 16171 16210 16241 16271 16371 9017906070 9161160825 9411050800 9453100800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-88260

2TGEU..TA61

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90072-11622

2TGEU,3TGTEU,4TGTEU..TA6#

L=59,S=9&11

 1
16100K - PUMP KIT, WATER
04161-28012

2TGEU,3TEU..TA61,63

 1
04161-28011

2TGEU,3TEU..TA6#

 1
16100L - ROTOR KIT, WATER PUMP
04162-28020

2TGEU,3TEU..TA6#

 1
04162-28021

2TGEU,3TEU..TA61,63

 1
16104 - SEAL SET, WATER PUMP
16104-41111

2TGEU..TA61

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-88260

2TGEU..TA61

 1
16131 - ROTOR, WATER PUMP
16131-26010

2TGEU,3TEU..TA61,63

 1
16131A - BEARING, WATER PUMP
16140-38011

2TGEU,3TEU..TA61,63

 1
16171 - SEAT, WATER PUMP PULLEY
16171-26021

2TGEU,3TEU..TA61,63

 1
16210 - COUPLING ASSY, FLUID
16210-28020

2TGEU,3T#,4TGTEU..TA6#

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-28020

2TGEU..TA61

 4
16271 - GASKET, WATER PUMP
16129-25011

2TGEU,3TEU..TA6#

 1
16371 - PULLEY, FAN
16173-26021

2TGEU,3TGTEU,4TGTEU..TA6#

 1
Common parts
90179-06070
91611-60825
94110-50800
94531-00800
