TA61-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

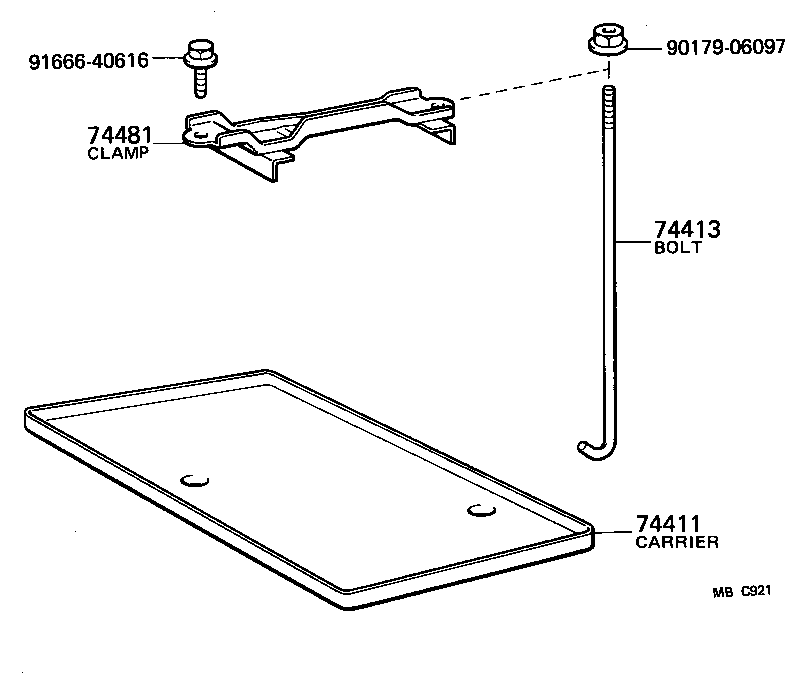

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9166640616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14050

GA61,RA63,SA60,TA6#

W/NS40ZAL

 1
74431-14020

MA6#,RA63,SA60,TA6#

W/NS60L

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14220

AA63,RA63,SA60,TA6#

 1
Common parts
90179-06097
91666-40616
