TA61-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )

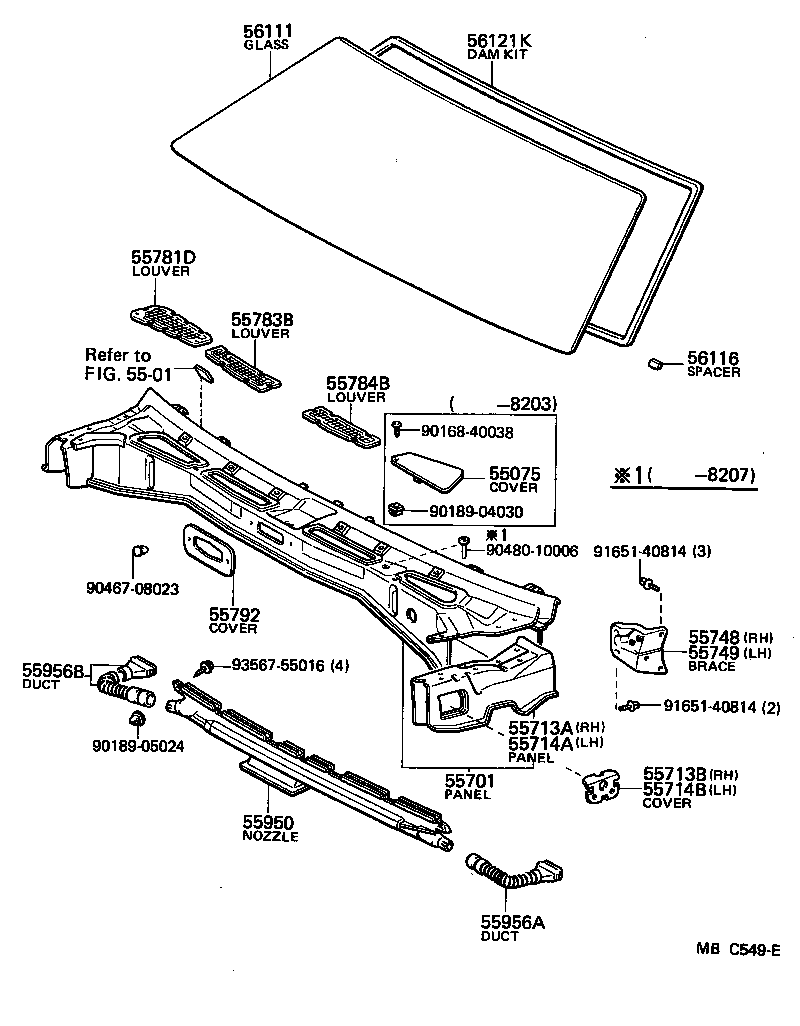

Click highlighted areas on diagram

diagram 5501 55075 55701 55713A 55713B 55714A 55714B 55748 55749 55781D 55783B 55784B 55792 55950 55956A 55956B 56111 56116 56121K 9016840038 9018904030 9018905024 9046708023 9048010006 9165140814 9165140814 9356755016
Part # Description Qty Price
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55792-14030

GA61,MA6#,RA63,SA60,TA6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-14590

AA63,RA63,SA60,TA6#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-14080

AA63,RA63,SA60,TA6#

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
62161-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-14080

AA63,RA63,SA60,TA6#

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
62162-14010

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55748 - BRACE, COWL TOP TO PILLAR, RH
55748-14030

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55749 - BRACE, COWL TOP TO PILLAR, LH
55749-14060

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-14120

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14080

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14080

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

GA61,MA6#,RA63,SA60,TA6#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-14090

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14030

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55971-14030

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
56111 - GLASS, WINDSHIELD
56111-14320

AA63,TA61..GT

T=5.3,*TL

 1
56111-14310

GA61,MA63,SA60,TA6#..G,GTR,GTS,GTT,L,S,ST,SV

T=5.0,*TZT

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14020

AA63,GA61,MA6#,RA63,SA60,TA6#

LWR,20 X 7.5 X 11.5

 2
56116-14040

AA63,GA61,MA6#,RA63,SA60,TA6#

SIDE,20 X 8 X 9.2

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-14010

GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
90168-40038
90189-04030
90189-05024
90467-08023
90480-10006
91651-40814
93567-55016
Linked diagrams
5501
