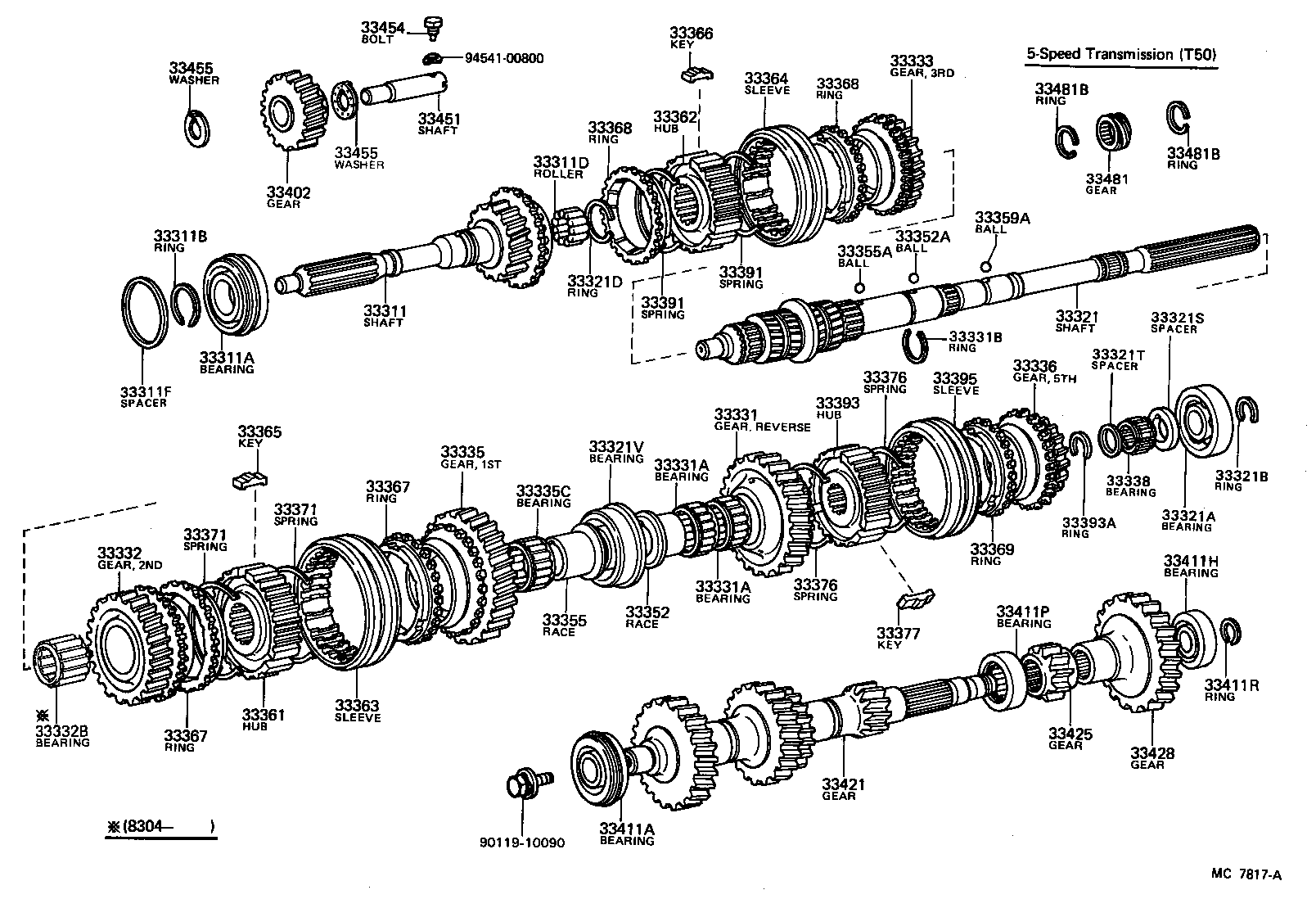

TA61-BCMQF (1981)
Toyota Celica
(8107-8507)AA63,SA60,TA61,63..5F..GT,GTR,ST,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-14010 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30020 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 90363-30028 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-28068 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.45-2.50 |
1 | ||
| 90520-28067 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.35-2.40 |
1 | ||
| 90520-28205 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-28206 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.50-2.55 |
1 | ||
| 90520-28207 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.45−2.50,T=2.55-2.60 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-61001 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=1.825-1.875 |
1 | ||
| 90560-61003 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.045-2.095 |
1 | ||
| 90560-61004 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.155-2.205 |
1 | ||
| 90560-61006 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.375-2.425 |
1 | ||
| 90560-61005 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=2.265-2.315 |
1 | ||
| 90560-61002 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) T=1.935-1.985 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-14041 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33321-14040 |
SA60,TA6#..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25018 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SV,SX) |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-23026 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.35−2.40,T=2.35-2.40 |
1 | ||
| 90520-23027 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-23030 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.55−2.60,T=2.55-2.60 |
1 | ||
| 90520-23028 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.45−2.50,T=2.45-2.50 |
1 | ||
| 90520-23031 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.60−2.65,T=2.60-2.65 |
1 | ||
| 90520-23029 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.50−2.55,T=2.50-2.55 |
1 | ||
| 90520-23032 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=2.65−2.70,T=2.65-2.70 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30201 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-30203 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-30204 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.15−2.20,T=2.15-2.20 |
1 | ||
| 90520-30200 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 90520-30202 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 33321S - SPACER (FOR GEAR STOPPER) | ||||
| 90561-25001 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-27003 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90369-30027 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-14011 |
SA60,TA6#..MTM |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37061 |
SA60,TA6#..MTM |
2 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37061 |
SA60,TA6#..MTM |
2 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-14061 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33033-14060 |
SA60,TA6#..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-14030 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-14011 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37041 |
SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-14031 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SV,SX) |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-27003 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 33352 - RACE, REVERSE GEAR BEARING INNER | ||||
| 33344-14010 |
SA60,TA6#..MTM |
1 | ||
| 33352A - KEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33345-14011 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-14012 |
SA60,TA6#..MTM |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-14011 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
AA63,GA61,MA61,RA63,SA60,TA6#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
GA61,MA61,RA63,SA60,TA6#..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
GA61,MA61,RA63,SA60,TA6#..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-14011 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-14020 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24016 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.95−3.00,T=2.95-3.00 |
1 | ||
| 90520-24009 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.60−2.65,T=2.60-2.65 |
1 | ||
| 90520-24014 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.85−2.90,T=2.85-2.90 |
1 | ||
| 90520-24012 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.75−2.80,T=2.75-2.80 |
1 | ||
| 90520-24013 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.80−2.85,T=2.80-2.85 |
1 | ||
| 90520-24010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.65−2.70,T=2.65-2.70 |
1 | ||
| 90520-24015 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.90−2.95,T=2.90-2.95 |
1 | ||
| 90520-24017 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.00−3.05,T=3.00-3.05 |
1 | ||
| 90520-24020 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.15−3.20,T=3.15-3.20 |
1 | ||
| 90520-24019 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.10−3.15,T=3.10-3.15 |
1 | ||
| 90520-24011 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=2.70−2.75,T=2.70-2.75 |
1 | ||
| 90520-24022 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.25−3.30,T=3.25-3.30 |
1 | ||
| 90520-24021 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.20−3.25,T=3.20-3.25 |
1 | ||
| 90520-24023 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.30−3.35,T=3.30-3.35 |
1 | ||
| 90520-24018 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) 厚さ=3.05−3.10,T=3.05-3.10 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14013 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-14011 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-20004 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-20001 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SV,SX) |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-30015 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18264 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) T=2.00-2.05 |
1 | ||
| 90520-18266 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) 厚さ=1.60−1.65,T=1.60-1.65 |
1 | ||
| 90520-18265 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) T=1.80-1.85 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-14080 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SV,SX) |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-14030 |
AA63,SA60,TA61,63..5F..(GT,GTR,ST,SX) |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33454 - BOLT, SHAFT RETAINING | ||||
| 33454-12010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
1 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-14040 |
AA63,TA61,63..5F..(GT,GTR,ST,SX) 歯数=6 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-23025 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-23025 |
AA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX) |
2 | ||
| Common parts | ||||
| 90119-10090 | ||||
| 94541-00800 | ||||
