TA61-BCMQF (1981)

Toyota Celica

Production Jul 1981 - Aug 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )MTM

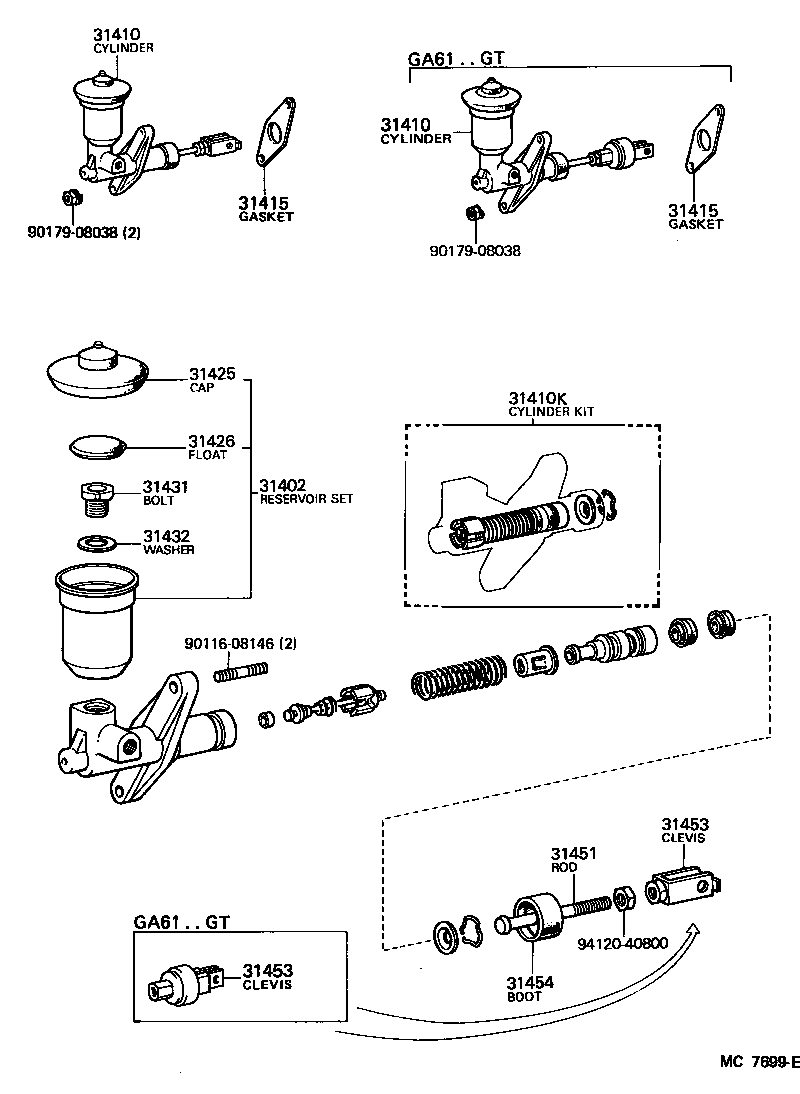

Click highlighted areas on diagram

diagram 31402 31410 31410 31410K 31415 31415 31425 31426 31431 31432 31451 31453 31453 31454 9011608146 9017908038 9017908038 9412040800
Part # Description Qty Price
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

GA61,RA63,SA60,TA61,63..MTM..(G,GT,GTR,L,S,ST,SV,SX)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-14120

GA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-14120

GA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31410K - CYLINDER KIT, CLUTCH MASTER
04311-12020

GA61..5F..(G,L,S);RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-30010

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010

AA63,GA61,MA61,RA63,SA60,TA6#..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-20050

GA61..5F..(G,L,S);AA63,RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

GA61..5F..(G,L,S);AA63,RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

GA61..5F..(G,L,S);AA63,RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

GA61..5F..(G,L,S);AA63,RA63,SA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)

 1
Common parts
90116-08146
90179-08038
94120-40800
