ST205-BLMVZ (1994)

Toyota Celica

Production Feb 1994 - Aug 1999
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309-9508)LB

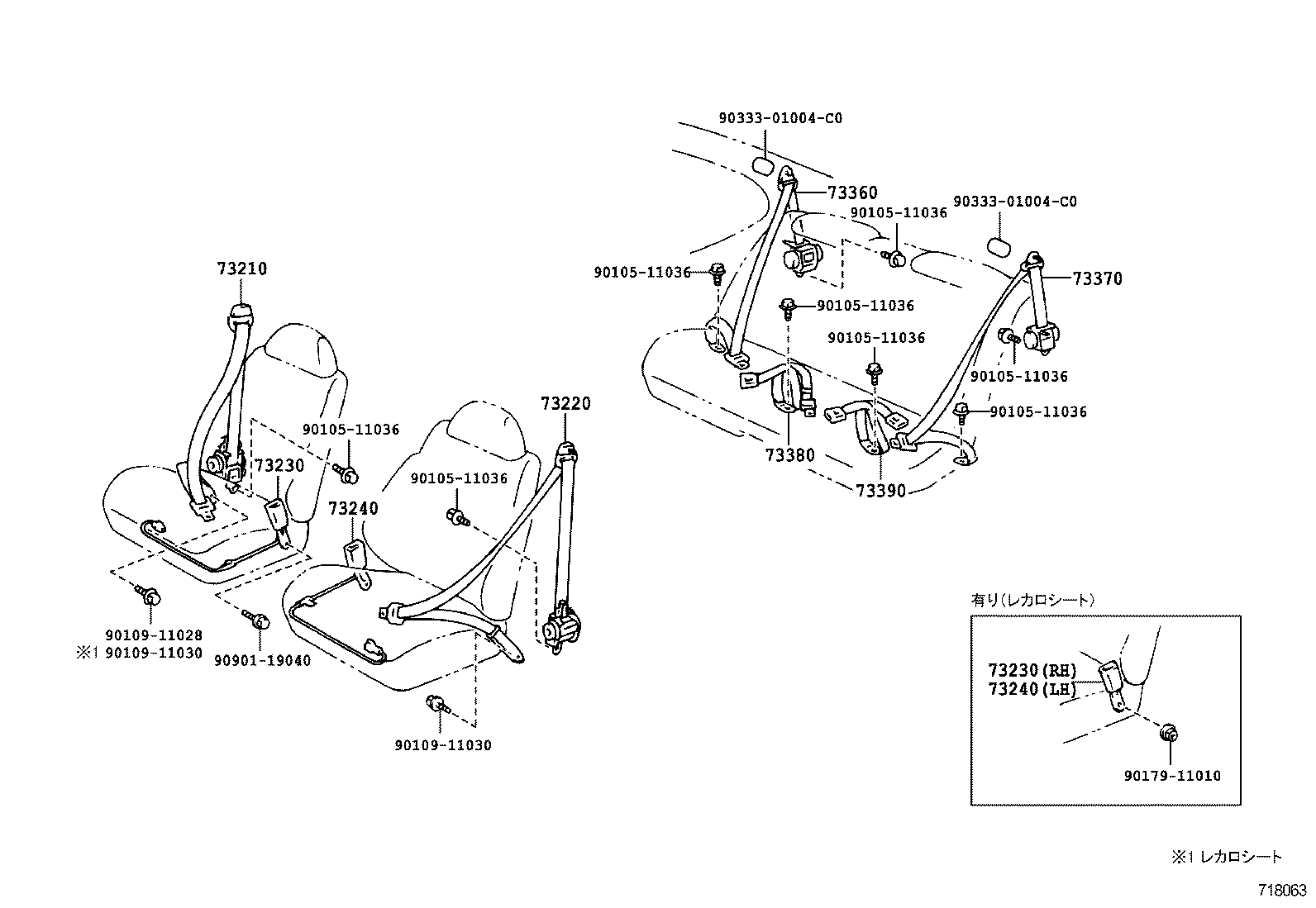

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73360 73370 73380 73390 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9017911010 9033301004C0 9033301004C0 9165160614 9165160614
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20800C0

ST205

BLACK,TRIM2#

 1
73210-20801C0

ST205

BLACK,TRIM2#

 1
73210-20880C0

ST20#..LB

BLACK,TRIM2#

 1
73210-2B050C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20611C0

ST20#..LB

BLACK,TRIM2#

 1
73220-20710C0

ST20#..LB

BLACK,TRIM2#

 1
73220-20610C0

ST20#

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20621C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20710C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20620C0

ST20#

BLACK,TRIM2#

 1
73230-20690C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20631C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20700C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73230-20680C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20630C0

ST20#

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20671C0

ST20#..LB

BLACK,TRIM2#

 1
73360-20672C0

ST20#..LB

BLACK,TRIM2#

 1
73360-20720C0

ST20#..LB

BLACK,TRIM2#

 1
73360-20670C0

ST20#

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20500C0

ST20#

BLACK,TRIM2#

 1
73370-20550C0

ST20#..LB

BLACK,TRIM2#

 1
73370-20501C0

ST20#..LB

BLACK,TRIM2#

 1
73370-20502C0

ST20#..LB

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20081C0

ST20#..LB

BLACK,TRIM2#

 1
73470-20080C0

ST20#

BLACK,TRIM2#

 1
73470-20090C0

ST20#..LB

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20110C0

ST20#..LB

BLACK,TRIM2#

 1
73480-20101C0

ST20#..LB

BLACK,TRIM2#

 1
73480-20100C0

ST20#

BLACK,TRIM2#

 1
Common parts
90119-11021
90179-11010
90333-01004C0
91651-60614

(9508- )LB

Click highlighted areas on diagram

diagram 73210 73220 73230 73230 73240 73240 73360 73370 73380 73390 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911028 9010911030 9010911030 9017911010 9033301004C0 9033301004C0 9090119040
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20800C0

ST205

BLACK,TRIM2#

 1
73210-20801C0

ST205

BLACK,TRIM2#

 1
73210-20880C0

ST20#..LB

BLACK,TRIM2#

 1
73210-2B050C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20611C0

ST20#..LB

BLACK,TRIM2#

 1
73220-20710C0

ST20#..LB

BLACK,TRIM2#

 1
73220-20610C0

ST20#

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20621C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20710C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20620C0

ST20#

BLACK,TRIM2#

 1
73230-20690C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20621C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20710C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20620C0

ST20#

BLACK,TRIM2#

 1
73230-20690C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20631C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20700C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73230-20680C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20630C0

ST20#

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20631C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20700C0

ST202,205..GT4,SS3

ｱﾘ(ﾚｶﾛｼ-ﾄ),BLACK,TRIM2#

 1
73230-20680C0

ST20#..LB

BLACK,TRIM2#

 1
73230-20630C0

ST20#

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20671C0

ST20#..LB

BLACK,TRIM2#

 1
73360-20672C0

ST20#..LB

BLACK,TRIM2#

 1
73360-20720C0

ST20#..LB

BLACK,TRIM2#

 1
73360-20670C0

ST20#

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20500C0

ST20#

BLACK,TRIM2#

 1
73370-20550C0

ST20#..LB

BLACK,TRIM2#

 1
73370-20501C0

ST20#..LB

BLACK,TRIM2#

 1
73370-20502C0

ST20#..LB

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20081C0

ST20#..LB

BLACK,TRIM2#

 1
73470-20080C0

ST20#

BLACK,TRIM2#

 1
73470-20090C0

ST20#..LB

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20110C0

ST20#..LB

BLACK,TRIM2#

 1
73480-20101C0

ST20#..LB

BLACK,TRIM2#

 1
73480-20100C0

ST20#

BLACK,TRIM2#

 1
Common parts
90105-11036
90109-11028
90109-11030
90179-11010
90333-01004C0
90901-19040
