ST203-BLPGK (1993)
Toyota Celica

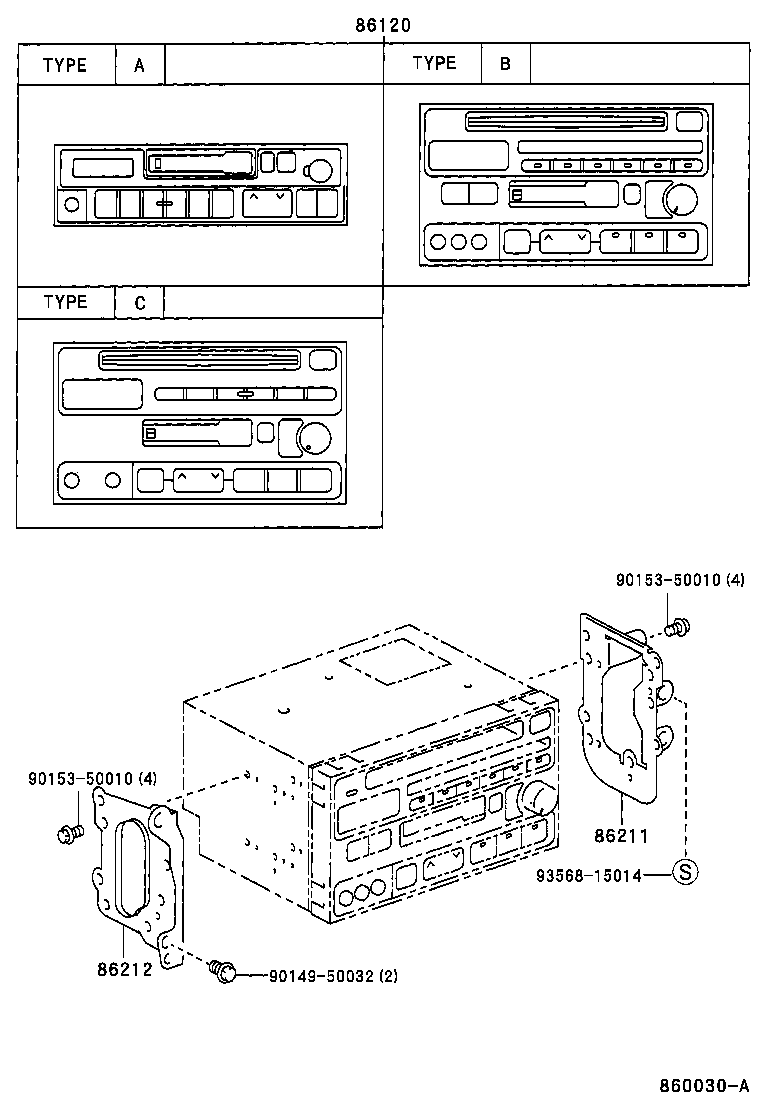

ILLUST NO. 1 OF 2(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B460 |
ST20# FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B490 |
ST20#..LB MATSUSHITA,ID=55844,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14860 |
ST20#..LB MATSUSHITA,ID=55818,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14870 |
ST20#..LB FUJITSU TEN,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B470 |
ST20# FUJITSU TEN,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B461 |
ST20#..LB FUJITSU TEN,ID=15415,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B471 |
ST20# FUJITSU TEN,ID=15825,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20360 |
ST20# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20360 |
ST20# |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 93568-15014 | ||||
ILLUST NO. 1 OF 2(9606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B460 |
ST20# FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B490 |
ST20#..LB MATSUSHITA,ID=55844,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14860 |
ST20#..LB MATSUSHITA,ID=55818,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14870 |
ST20#..LB FUJITSU TEN,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B470 |
ST20# FUJITSU TEN,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B461 |
ST20#..LB FUJITSU TEN,ID=15415,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B471 |
ST20# FUJITSU TEN,ID=15825,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B460 |
ST20# FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B490 |
ST20#..LB MATSUSHITA,ID=55844,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14860 |
ST20#..LB MATSUSHITA,ID=55818,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-14870 |
ST20#..LB FUJITSU TEN,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B470 |
ST20# FUJITSU TEN,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B461 |
ST20#..LB FUJITSU TEN,ID=15415,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B471 |
ST20# FUJITSU TEN,ID=15825,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||

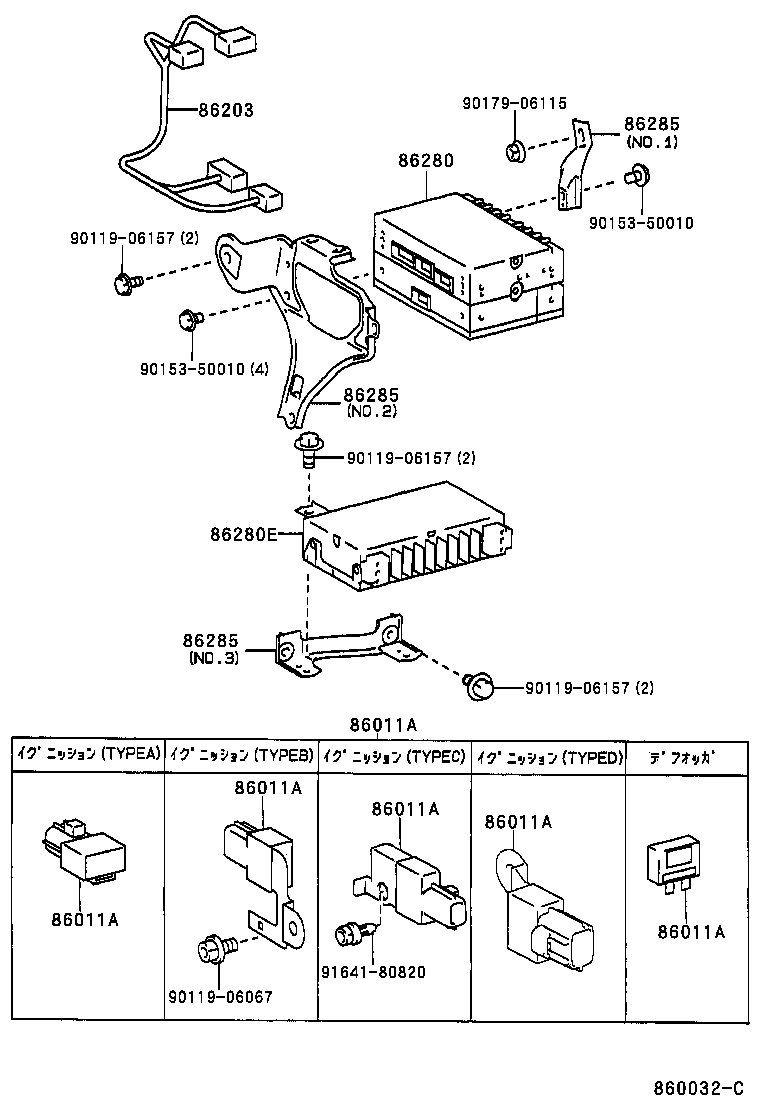

ILLUST NO. 2 OF 2(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-20210 |
ST20# |
1 | ||
| 86203-20220 |
ST20#..LB |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-20440 |
ST20#..LB |
1 | ||
| 86280-20380 |
ST20# |
1 | ||
| 86280E - AMPLIFIER SET, STEREO COMPONENT | ||||
| 86280-20390 |
ST20# |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20120 |
ST20# NO.1 |
1 | ||
| 86285-20130 |
ST20# NO.2 |
1 | ||
| 86285-20160 |
ST20# NO.3 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20120 |
ST20# NO.1 |
1 | ||
| 86285-20130 |
ST20# NO.2 |
1 | ||
| 86285-20160 |
ST20# NO.3 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20120 |
ST20# NO.1 |
1 | ||
| 86285-20130 |
ST20# NO.2 |
1 | ||
| 86285-20160 |
ST20# NO.3 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06157 | ||||
| 90153-50010 | ||||
| 90179-06115 | ||||
| 91641-80820 | ||||
