ST202C-BKMVF (1994)
Toyota Celica
Production
Aug 1994
-
Dec 1997
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

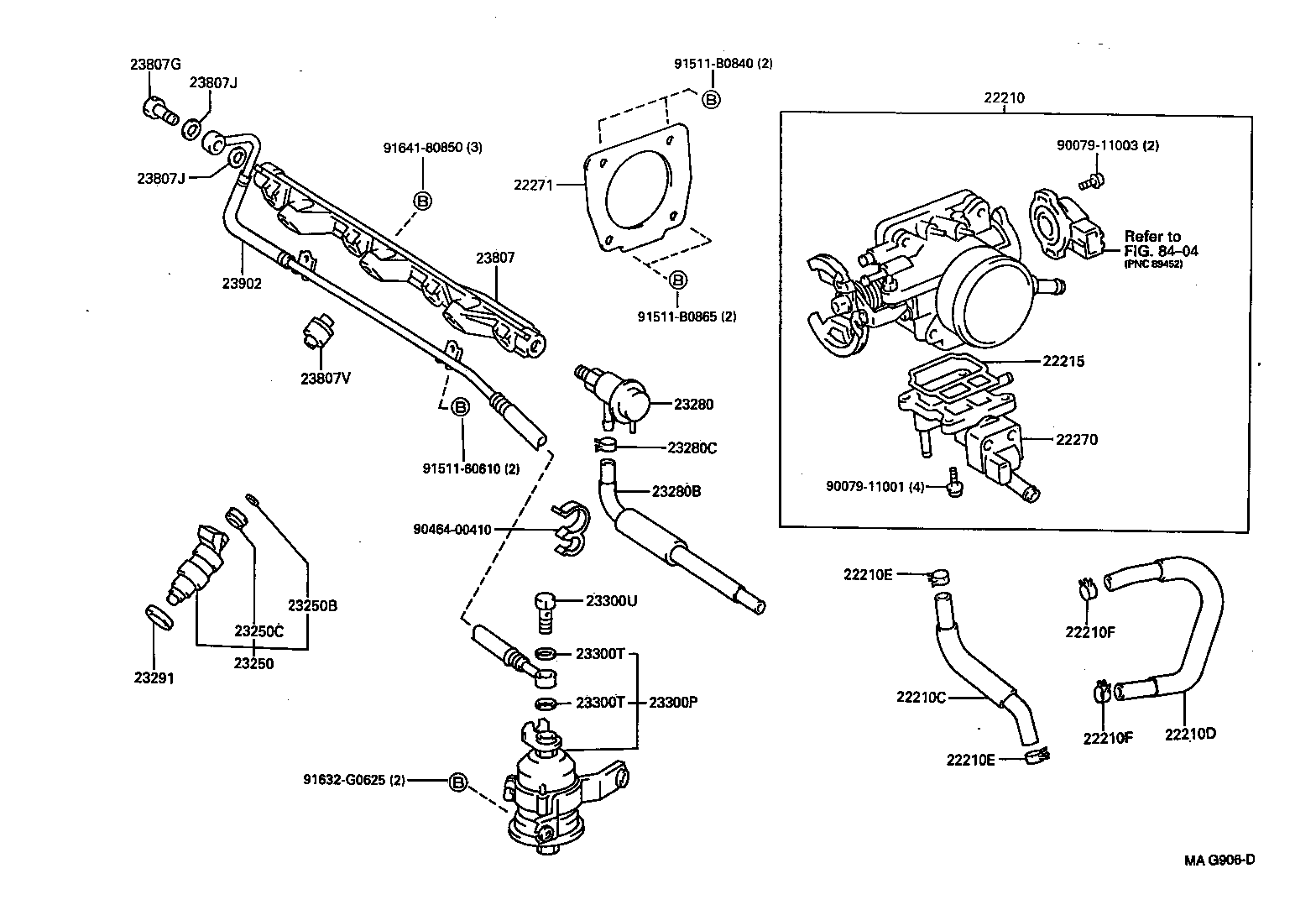

ILLUST NO. 1 OF 2(9309-9712)3SGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A060 |
3SGE..ST202 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-88460 |
3SGE..ST202 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-88460 |
3SGE..ST202 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13128 |
3SGE..ST202 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13128 |
3SGE..ST202 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13128 |
3SGE..ST202 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13128 |
3SGE..ST202 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74380 |
3SG#..ST202,205 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74210 |
3SGE..ST202 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88461 |
3SGE..ST202 |
1 | ||
| 22271-88460 |
3SGE..ST202 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74160 |
3SGE..ST202 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3SFE,3SGE..ST202,203 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3SFE,3SGE..ST202,203 |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74110 |
3SGE..ST202 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 23271-88460 |
3SGE..ST202 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11065 |
3SG#..ST202,205 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3SFE,3SGE..ST202,203 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79425 |
3SFE,3SG#..ST20# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3SFE,3SG#..ST20# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3SFE,3SG#..ST20# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 96341-11200 |
3SFE,3SG#..ST20# |
1 | ||
| 90401-12097 |
3SFE,3SG#..ST20# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-88460 |
3SGE..ST202 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-12097 |
3SG#..ST202,205 |
1 | ||
| 96341-11200 |
3SG#..ST202,205 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SG#..ST202,205 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SG#..ST202,205 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08051 |
3SGE..ST202 |
3 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-88460 |
3SGE..ST202 |
1 | ||
| Common parts | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90464-00410 | ||||
| 91511-60610 | ||||
| 91511-B0840 | ||||
| 91511-B0865 | ||||
| 91632-G0625 | ||||
| 91641-80850 | ||||
| Linked diagrams | ||||
| 8404 | ||||
